2 Port Managed Gigabit Media Converter

2 RJ45 Managed GbE Media Converter is an IEEE 802.3ah OAM compliant copper to fibre Gigabit Ethernet solution designed to make conversion between 10/100/1000Base-TX and 1000Base-FX with SFP modules and fixed type 1×9 modules. With SNMP and Web-based management in the 2U 16 Slots Managed Media Converter Chassis, the administrator can monitor, configure and control the activity of each 802.3ah series card and remotely connected OAM-compliant converter. Converter settings include bandwidth control, duplex, and speed configuration, VLAN tagging, limited Q-in-Q support and SFP DDMI. When used as stand-alone converters, it can be managed by a friendly Web Smart user interface via any web browser.


Product Features

  • Supporting 2 RJ45 ports
  • Supporting 10/100/1000M, full/half duplex autosensing
  • Supporting auto-MDI/MDIX
  • Supporting 1*9 transceiver and SFP transceiver
  • Support SFP DMI(Diagnostic Monitoring Interface) function
  • Supporting 850nm, 1310nm, 1550nm and DWDM/CWDM wavelength ruled by ITUT
  • Max. 2046 bytes packet at store-and-forward mode; Max. 9K bytes packet at cut-through
  • Rate Limit function, 32Kbps
  • Supporting remote power off alarming
  • Economical management function within the bandwidth, supporting 802.3ah and TS 1000
  • With powerful network management function, supporting WEB and SNMP
  • Supporting hot plug
  • Supporting Remote management
  • Easy installation with complete LED indicators for working situation

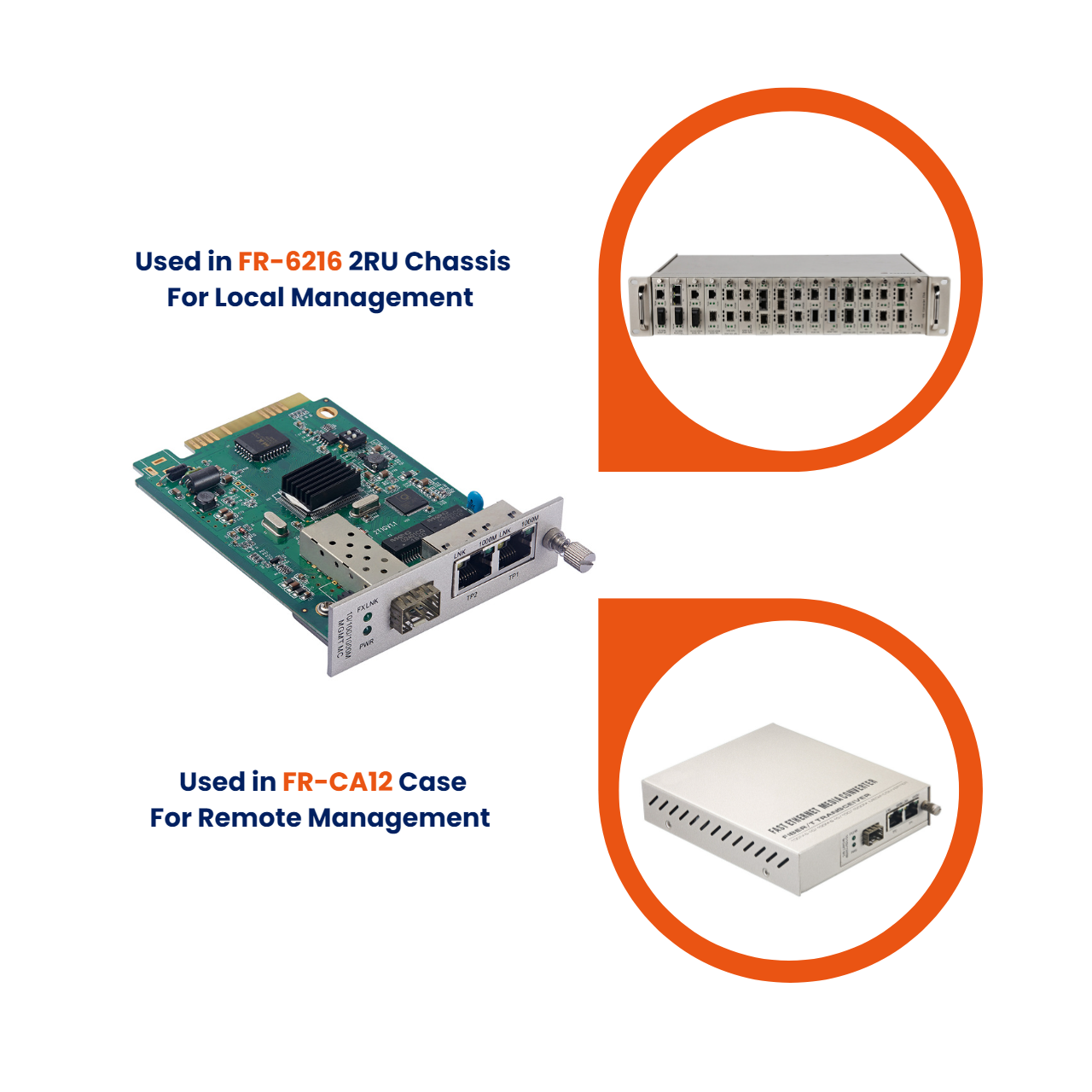

  • Supporting 2U chassis (16 slots) and standalone use

Video Gallery

2-Port 10/100/1000Base-TX to 1000Base-FX Managed GbE Media Converter Card
2-Port 10/100/1000Base-TX to 1000Base-FX Managed GbE Media Converter Card
2-Port 10/100/1000Base-TX to 1000Base-FX Managed GbE Media Converter Card
2-Port 10/100/1000Base-TX to 1000Base-FX Managed GbE Media Converter Card
Quality Certifications
Share This Product

Boost Your Network Performance with a 2 Port Managed Gigabit Media Converter

Are you tired of slow network speeds and unreliable connections? Look no further than the 2 Port Managed Gigabit Media Converter! This powerful device is the perfect solution to boost your network performance, providing lightning-fast speeds and a reliable connection for all your devices. With two ports, you can easily connect multiple devices without sacrificing speed or reliability. Whether you’re streaming movies, downloading files, or playing online games, this media converter will ensure that your network runs smoothly and efficiently. So why wait? Upgrade your network today with the 2 Port Managed Gigabit Media Converter and experience faster speeds and better connectivity like never before!

Maximizing Data Transfer with a 2 Port Managed Gigabit Media Converter

The Gigabit Ethernet Managed Media Converter is an innovative solution to maximize performance and efficiency in your network. With its support for IEEE802.3 ah in-band management, this converter enables you to easily monitor and manage the network traffic in real time, ensuring that your infrastructure runs optimally at all times. The inclusion of Dying Gasp ensures that you are notified immediately when a link failure occurs, allowing for swift resolution of any issues that may arise. Additionally, LFPT (Link Fault Pass Through) allows the converter to detect faults on both sides of the link and inform management software accordingly. Finally, with its ability to handle high bandwidths over long distances without degrading signal quality or speed, this media converter is essential for businesses seeking reliable networking solutions that won’t let them down when they need it most.




Physical Port
Copper Port 10/100/1000Base-T RJ45×2
SFP Port 100/1000BASE-X SFP interfaces
Fiber Mode 1000BASE-X, 550m-120km, SC/ST/FC
Ethernet Standards IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic

IEEE 802.3x flow control and back pressure


IEEE 802.3ah terminal

Packet Length 2046bytes
Transmission Mode Store and Forward
Exchange Property Delay time: < 7ps

Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps

DIP Switches LFP function:Disable/Enable

Remote control:Disable/Enable


Managed Features Supports LFT (Link Fault Pass Through)

Supports Digital Diagnostic Monitor Interface (DDM) for SFP

Supports OAM/IP in-band management

Ingress/Egress Bandwidth control per port

Supports 16 IEEE 802.1Q Tag VLAN Group

SNMP alarm trap for power loss and port link down

Remote loop back test

Dying gasp (remote power failure detection)

LED Indicator Power, FEF, FX-Link, TX-SPD, TX-Duplex, TX-Link, LFP
Power Information
Power Input Card: DC 5V

Standalone: AC 220V/DC -48V

Power Consumption Full-load<4W
Physical Property
Dimensions Card:120mm×90mm×22mm


Installation Mode wall-mountable
Weight Card:100g


Working Environment
Operating Temperature 0°C~50°C
Operating Humidity 10%~90% non-condensing
Storage Temperature -10°C~70°C
MTBF 50,000 hours
Defects Liability Period 1 year warranty, lifetime technical support
Certification Standard
EMC FCC Part15 Class A



EN61000-4-2 (ESD), EN61000-4-3 (RS)

EN6100044 (EFT), EN6100045 (Surge)

EN61000^1-6 (CS), EN61000-4-8
