4-Port 10/100/1000T + 2-Port 1G SFP Web Smart Semi-industrial Ethernet Switch

FR-6R3204 is Smart Industrial Gigabit Ethernet Switch independently developed by Fiberroad for industrial networking applications. We define it as the LITE model, wholly designed for small businesses, extremely cost-effective. This product adopts industry-leading technical standards and can provide stable and reliable Ethernet transmission with high quality.



Product Features

  • 4×10/100/1000Base-T RJ45 ports, 2×100/1000Base-X SFP ports
  • DIP Switch supports RSTP/VLAN/SPEED.
  • Support 9K bytes giant frame, compatible with various extension protocol
  • Support IEEE802.3az energy-efficient Ethernet technology
  • Electric 4KV surge protection, easy to use in an outdoor environment
  • Complete status indicator, working state at a glance
  • Power input polarity protection design
  • Aluminium case, no fan design
  • Installation method: DIN Rail /Wall mounting
  • Easy-to-use WebGUI management

Video Gallery

Web Smart Semi Industrial Switch
Web Smart Semi Industrial Switch
Quality Certifications
Guarantee
Share This Product

Why a Web Smart Semi-industrial Ethernet Switch is Worth Considering

When selecting a networking solution, the Web Smart Semi-industrial Ethernet Switch stands out as a compelling option worth considering. This advanced switch offers an array of functionalities and features that cater to the specific demands of semi-industrial environments. Designed with utmost precision and reliability in mind, this switch provides seamless network connectivity while maintaining robust performance levels

Web Smart Semi industrial switch

Customizing Network Settings Made Easy with Web Smart Semi-industrial Interface

Its web-based management interface makes configuring and monitoring network settings effortless for users, allowing for convenient customization according to unique requirements. Web Smart Semi-industrial Ethernet Switch offers comprehensive Layer 2 management functionalities such as VLANs (Virtual Local Area Networks), QoS (Quality of Service), and Spanning Tree Protocol (STP). These features empower businesses to prioritize critical traffic flows effectively while maintaining superior network performance and stability.

Web Smart Semi industrial switch

Revolutionize Your Video Surveillance Network with the Web Smart Semi-Industrial Ethernet Switch

The Web Smart Semi-Industrial Ethernet Switch is a highly efficient and innovative networking solution designed to cater to the needs of small and medium-sized video surveillance networks. What sets it apart is its intelligent DIP switches, which empower users with the ability to effortlessly deploy essential functions like RSTP (Rapid Spanning Tree Protocol) and VLAN (Virtual Local Area Network). With these advanced features at their disposal, network administrators can ensure seamless operations even in dynamic environments.

Web Smart Semi industrial switch

QoS for Video Priority Guaranteed

Ensure that audio and video applications remain clear and lag-free by setting the priority of the traffic based on QoS.

Web Smart Semi industrial switch

VLAN for Network Security

A virtual network allows device grouping in different physical LANs, improving information security and reducing traffic congestion.

Web Smart Semi industrial switch

RSTP for Network Redundancy

Utilizing RSTP to provide redundancy in the Video Surveillance Network, as well as enhance network performance and reliability.

Ethernet Interface
Ports 4×10/100/1000Base-T RJ45 ports, 2×100/1000Base-X SFP ports
Pors Mode(Tx) Auto-Negotiation Speed

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

Standards IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IEEE 802.3x for flow control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1p for Class of Service

IEEE 802.1Q for VLAN Tagging

Packet Buffer Size 1M
Maximum Packet Length Up to 9K
MAC Address Table 4K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property Delay time: < 7μs

Backplane bandwidth: 12Gbps

IGMP Group 256
VLAN ID Range VID 1 to 4094
Transmission Distance
SFP Port Depends on the optical module
RJ45 Port Transmission Distance 100m(using standard CAT5/CAT5e cable)

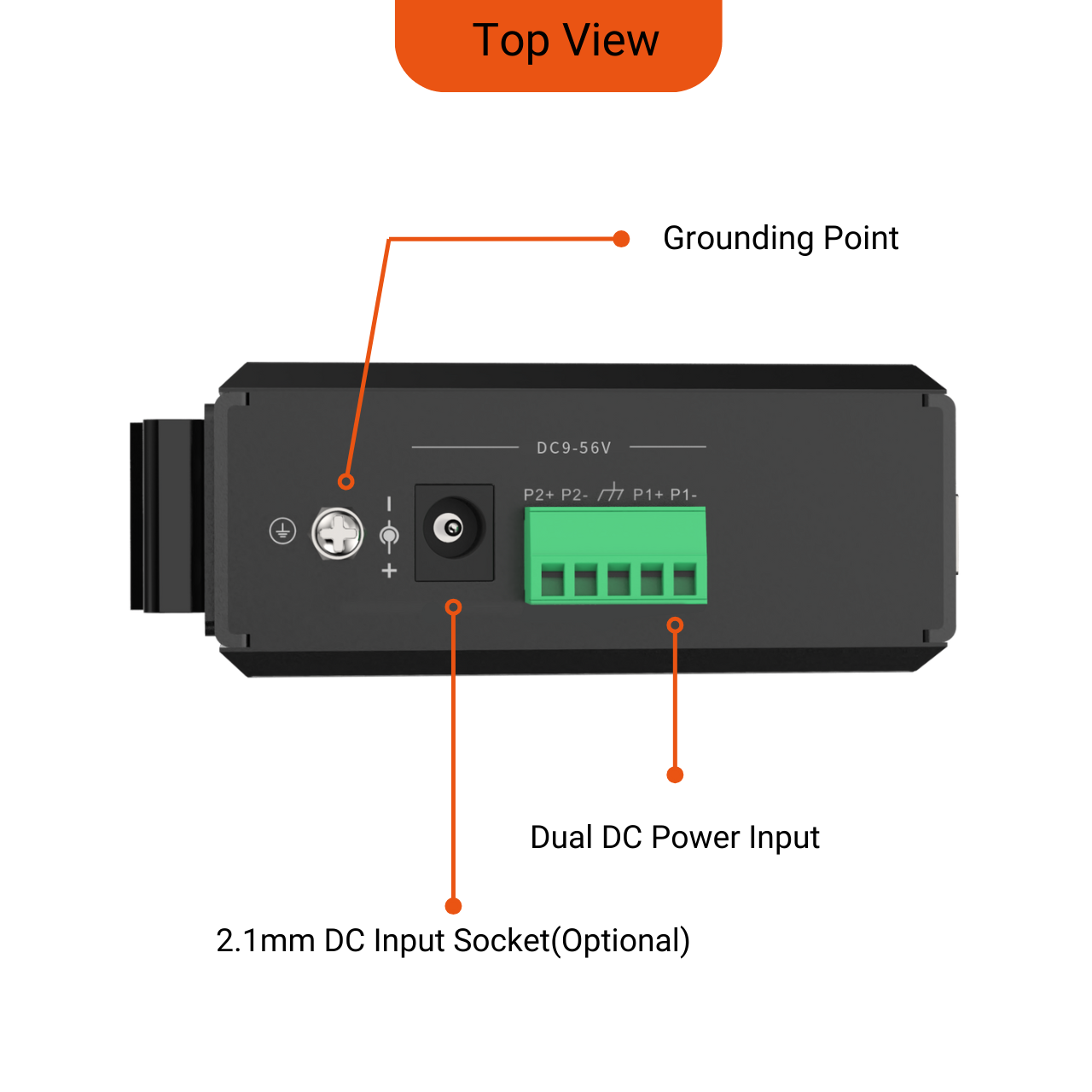

Power Information
Supply Current 1.0A/48VDC
Working Voltage 9-56VDC
Overload Protection Yes
Power Reverse Support
Power Consumption Full load<10W
Ethernet Software Features
Redundant Network Support STP/RSTP
Multicast Support Support IGMP Snooping V1/V2/V3
VLAN Support IEEE 802.1Q 4K VLAN
QOS Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA
Diagnostic Maintenance Support port mirroring, Ping
Management Function WEB
Security Broadcast/Multicast Storm Protection, MAC filtering
Physical Characteristics
Housing Aluminum case
IP Rating IP40
Dimensions 120mm*90mm*35mm
Installation Mode DIN Rail and Wall Mounting
Weight 350g
Working Environment
Operating Temperature -20℃~70℃ (-40 to 167 ℉)
Operating Humidity 5%~90% (non-condensing)
Storage Temperature -40℃~85℃ (-40 to 185 ℉)
