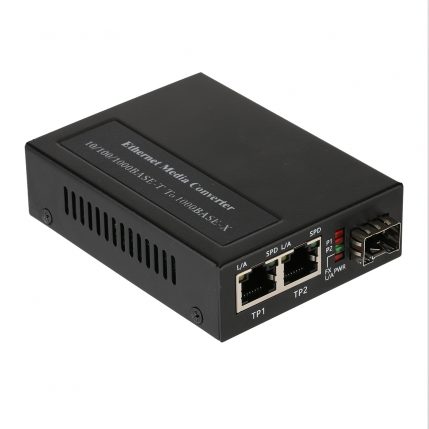

PoE Fiber Media Converter With 2xRJ45
Fiberroad POE230 Series commercial-grade PoE fibre media provides an option for single or dual PoE ports with 100Mbps or Gigabit Ethernet, which communicates across optical fibre via SFP port or 1×9 optical transceiver.
The PoE feature complied with IEEE802.3 af/at standard, including a PSE controller, which offers PD signature sensing and PoE negotiation features. Other intelligent features include over-current protection, LFP function, etc.
Quality Certifications
Guarantee
Share This Product:
Gigabit Fiber Media Converter with 2 PoE+ Ports
PoE Media Converter with Standard PoE Negotiation
If you’re looking for a top-of-the-line PoE fiber media converter with standard PoE negotiation, you’ve come to the right place. Our selection of PoE fiber media converters are designed to provide your devices with reliable power and data transmission, and they come with a variety of features to make installation and use easy. With standard PoE negotiation, our PoE fiber media converters are compatible with a wide range of devices, and they support 2×10/100/1000Base-T and 100/1000Base-X data rates. So whether you need a dependable power source for your devices or want to ensure high-speed data transfer, our PoE fiber media converters have you covered.
| Product Attributes | |||
|---|---|---|---|
| Ports | 2×10/100/1000Base-Tx RJ45 1x1000Base-x SFP/1×9 Port |
Port Mode(Tx) | Auto Negotiation Full/Half Duplex Auto MDI/MDIX |
| PoE Power Capacity | IEEE 802.3 af: 15.4W IEEE 802.3 at: 30W |
Frame Size | 9K |
| DIP Switch | AI PoE/Jumbo Frame/VLAN/FX 100M | Input Power | 48-56VDC/1.25A |
| Installation Mode | Desktop or Wall Mount | Power Consumption | af mode:35W at mode:70W |
| Housing | Metal | IP Rating | IP30 |
| Operating Temperature | 0 to 50℃ （32 to 122℉） | MTBF | 100,819 Hours |
PoE Media Converter – Ideal for IP Surveillance
PoE Fiber Media Converter complies with the 802.3af/at PoE+ standard and supports up to 30 W on each PoE port. The total 60W PoE power budget for the 2× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Not Only Power over Ethernet Features
PoE media converters with built-in DIP switch offer an easy way to disable or enable AI VLAN, AI PoE function, and other features with just a single click. This enhances the application ability of PoE media converters and makes them more versatile and useful for a variety of applications.
