Industrial PoE Network Switch with Optical Fiber Bypass

The New Generation Managed Industrial PoE Network Switch with 8-Port 10/100/1000Base-TX + 2x1000Base-X SFP provide reliable Ethernet transmission. To prevent fibre network communication during power loss, The Industrial Switch has built-in 2-channel SC/FC/ST connectors for optical bypass. A managed industrial PoE network switch with optical fiber bypass supports various management functions, including Rapid Spanning Tree, Multiple Spanning Tree and Ethernet Ring Protection Switching (ERPS) protocols for network redundancy. The IGMP facility can handle the multicast traffic commonly used in Video Surveillance deployments.



Feature

  • All-aluminum Case, Compact and Fanless Design
  • -40 to 75℃ temperature maintains performance in extreme conditions
  • DIN Rail and wall-mountable – quick to install and remove for maintenance
  • Full gigabit L2+ management, easy to manage the industrial network by CLI/WebGUI/NMS.
  • Build up a redundant network with STP/RSTP/MSTP/ERPSv2.
  • RADIUS, IEEE 802.1X, SNMPv3, HTTPS and SSH to enhance network security.
  • Bandwidth management prevents unpredictable network status with ”Lock Port” to restrict access to authorized MAC addresses.
  • QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR&SP+WRR
  • Bypass Switching Time: <8ms
  • Bypass Insertion Loss: <1.5dB

Video Gallery

Quality Certifications
Guarantee
Share This Product

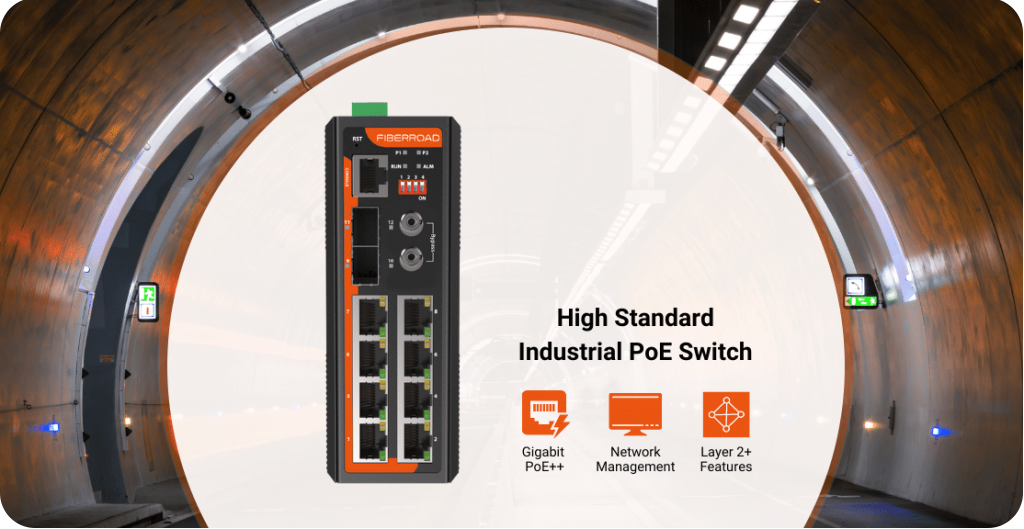

Fiber Bypass Layer 2+ Switch for Industrial Networks

Fiberroad L2+ Managed Industrial PoE Switch was designed for industrial Power over Ethernet networks. It offers Layer 2 switching functions and Layer 3 static routing features in such a rugged enclosure. Industrial Ethernet switches operate consistently at temperatures between -40 and 75 degrees, allowing DIN rail mounting or wall mounting to utilize cabinet space efficiently.

Extreme PoE Networks Switches for Harsh Environments

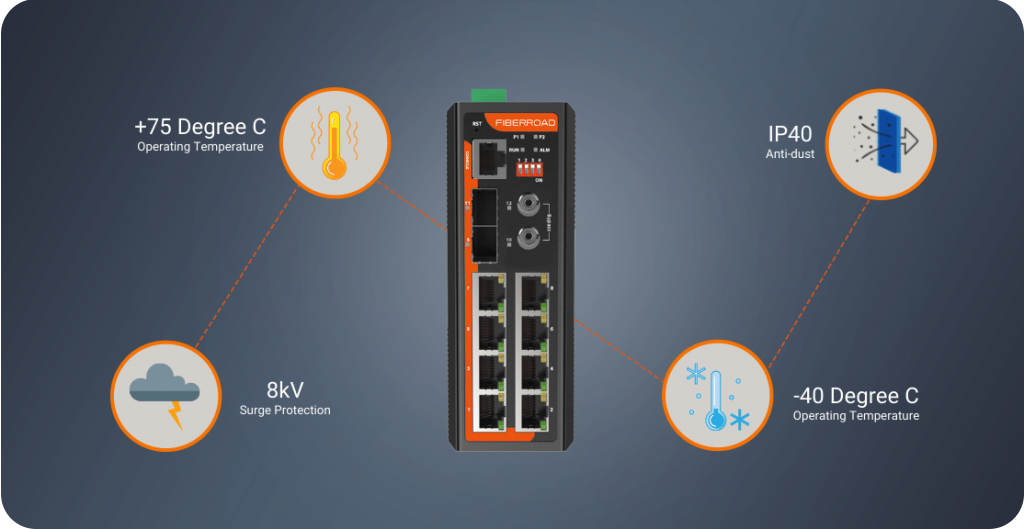

Despite its IP40 Durable Aluminum housing, no fan design can provide efficient heat dissipation. 8 Port Industrial PoE Switch are commonly found on plant floors or curb-side traffic control cabinets, where electromagnetic interference and heavy electrical surges are protected. For worldwide high availability applications that demand dual or backup voltage inputs, it uses an integrated power supply source (9–56V DC). Indeed, The design of the switch ensures operates in Harsh Environment.

Maintaining PoE over Fiber Networks is Simple and Fast

8 Port Industrial PoE Switch Integrated 2 simplex ST/SC/FC connectors with 2-channel optical bypass. Fiber connections can be made through the optical fiber ports at speeds up to 1Gbps. It automatically switches optic network traffic to prevent link failure during a power loss. In addition, it allows the local network switch to be replaced or removed without any downtime.

Create a Secure Network with L2+ Industrial Gigabit Switches

FR-7M3208FBT provides robust Layer 2+ Gigabit networks connectivity, including but not limited to Static route, LAN network security, ACL/QoS policy… Moreover, By configuring ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power system in industrial automation networks to enhance system reliability and uptime in harsh environments. As can be seen, the Managed Industrial Switch is easy to manage and maintain.

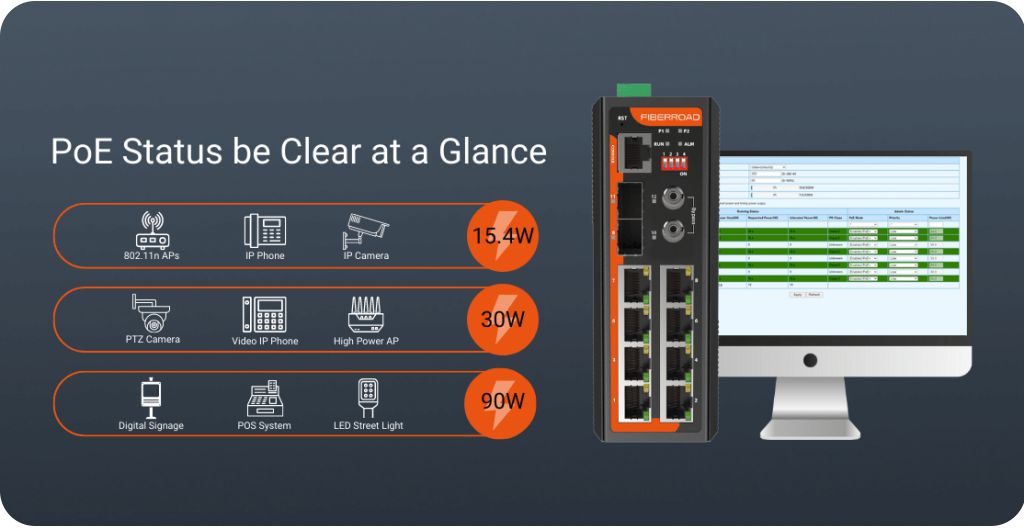

Keep connected to the Industrial Network Anytime and Anywhere

Managed Industrial PoE Network Switch allows various network management methods, such as the WebGUI, CLI and NMS. Easy to use, especially without additional hardware investment and installation. An industrial PoE network switch can manage a network on a central level, manage the bandwidth allocation, monitor the bandwidth, and monitor performance in real-time.

SSH2.0 and HTTPS/TLS protocols are used to provide powerful protection against network threats. In addition to DHCP Snooping, IP Source Guard, ARP Inspection Protection, 802.1x port-based and MAC-based network access control, user hierarchical management, SNMPv3 authentication, and so The Industrial Network Switch administrator can now construct highly-secure corporate networks with considerably less time and effort than before.

Hardware Specifications
Model FR-7M3208FP FR-7M3208FBT FR-7M3408FP FR-7M3408FBT
Ports

8×10/100/1000Base-T(X)RJ45 Ports

2x1000Base-X Optical Fiber Bypass

8×10/100/1000Base-T(X)RJ45 Ports

2x1000Base-X (SFP Slots)

2x1000Base-X Optical Fiber Bypass

Port Mode(Tx)

Auto Negotiation Speed

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

Bypass Interface 2 x Simplex SC/FC/ST
Bypass Optic Mode,

Wavelength, Distance

Port 10: T1310/R1550nm 20km

Port 12: T1550/R1310nm 20km

Bypass Return Loss Multimode: >50dB;Singlemode: >35dB
Bypass Insertion Loss Typical: 1.0dB; Max: 1.5dB
Bypass Switching Time < 8ms
Standards

IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IEEE 802.3x for flow control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1p for Class of Service

IEEE 802.1Q for VLAN Tagging

IEEE 802.1X for authentication

IEEE 802.3ad for Port Trunk with LACP

Console 1x RJ45-to-RS232 Serial Port(115200)
Packet Buffer Size 4 Mbits
Maximum Packet Length Up to 10K
MAC Address Table 8K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property

Delay time: < 7μs

Backplane bandwidth: 24Gbps

IGMP GroupS 2048
Max. No. of VLAN 64
VLAN ID Range VID 1 to 4094
PoE & Power Supply
Model FR-7M3208FP FR-7M3208FBT FR-7M3408FP FR-7M3408FBT
PoE Ports Port 1 to 8 IEEE802.3af/at @PoE+ Port 1 to 8 IEEE802.3af/at/bt @PoE++
Power Supply Pin Default: 1/2(+), 3/6(-) Default: 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Max Power Per Port 30W 90W
Total PWR /Input Voltage 240W(DC48-56V) (Model dependent) 480W(DC48-56V) (Model dependent)
Power Consumption 10 Watts Max(without PoE load)
Power Inputs 2
Input Voltage 9-56VDC,Redundant dual inputs
Operating Voltage

Non-PoE Mode: 9-56VDC

30W PoE Mode: 48-56VDC

90W PoE Mode: 52-56VDC(IEEE802.3bt model)

Connector

1 removable 6-contact terminal blocks

Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Protection Overload Current Protection, Reverse Polarity Protection



Support Documents

Item Type Version Release Date
Optical Bypass Industrial PoE Switch_Product Data Sheet
556 KB
Datasheet
2D Drawing
99 KB
2D Drawing
WebGUI Network Management User Manual
8 MB
Manual
