2 RJ45 Managed Fast Media Converter

2 RJ45 Managed Fast Media Converter is an IEEE 802.3ah OAM compliant copper to fiber Fast Ethernet solution designed to make conversion between 10/100Base-TX and 100Base-FX with SFP modules and fixed type 1×9 modules. With SNMP and Web-based management in the 2U 16 Slots Managed Media Converter Chassis, the administrator can monitor, configure and control the activity of each 802.3ah series card and remotely connected OAM compliant converter. Converter settings include bandwidth control, duplex, and speed configuration, VLAN tagging, limited Q-in-Q support and SFP DDMI. When used as stand-alone converters, it can be managed by a friendly Web Smart user interface via any web browser.



  • Supporting 2 RJ45 ports
  • Supporting 10/100M, full/half duplex autosensing
  • Supporting auto-MDI/MDIX
  • Rate Limit function, 32Kbps
  • Supporting 1600byte super data packet transmission
  • Supporting remote power off alarming
  • Economical management function within bandwidth
  • Supporting hot plug
  • Supporting Remote management
  • Easy installation with complete LED indicators for working situation
  • With powerful network management function, supporting WEB and SNMP
  • Supporting 2U chassis (16 slots) and standalone use
2-Port 10/100Base-TX to 100Base-FX Managed FE Media Converter Card
2-Port 10/100Base-TX to 100Base-FX Managed FE Media Converter Card
2-Port 10/100Base-TX to 100Base-FX Managed FE Media Converter Card
2-Port 10/100Base-TX to 100Base-FX Managed FE Media Converter Card
2-Port 10/100Base-TX to 100Base-FX Managed FE Media Converter Card
2-Port 10/100Base-TX to 100Base-FX Managed FE Media Converter Card
2-Port 10/100Base-TX to 100Base-FX Managed FE Media Converter Card
2-Port 10/100Base-TX to 100Base-FX Managed FE Media Converter Card
Quality Certifications
Guarantee
Share This Product

More Details of 2 RJ45 Managed Fast Media Converter

FR6000 Series is a Centralized Network Management Platform that provides 8 or 16 slots multi-service including Managed Media Converter Card, OEO Converter Card, 1+1 Protection Switching card, CWDM/DWDM MUX/DEMUX Card, etc. All interface cards, fans, management module Card and AC/DC redundant power supply are hot swappable, allowing online field replacement.



Fiberroad’ 2 RJ45 Managed Fast Media Converter allow the backbone of the network to be flexible and easier to manage and maintain. Our converters are available in two form factors, chassis-based slide-in cards and stand-alone converters, allowing you the most flexibility for your network. Our converters also utilize both fixed optics and Small Form-Factor Pluggable (SFP) transceivers allowing you to customize each converter for the cable type you are using. View the two different form factors as below:

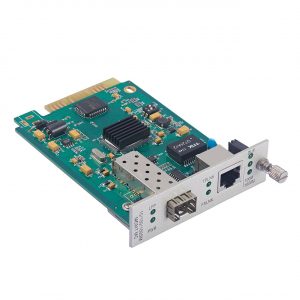

Chassis-based slide-in (Local Side)

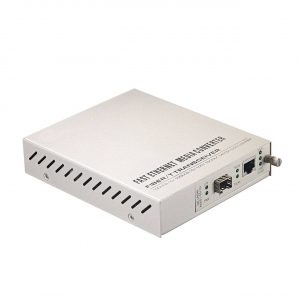

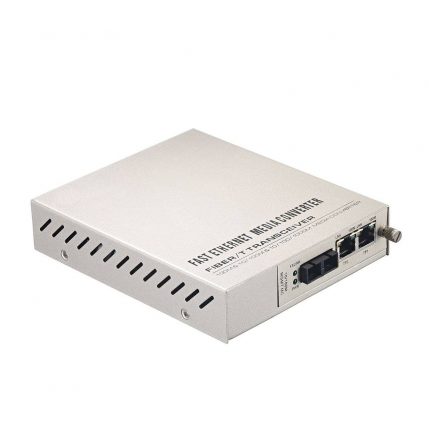

Remote Standalone (Remote Side)

Management access can be achieved locally or remote standalone via network by Web, SNMP, Telnet or Console. FR6000 series together with the MUX and DEMUX can offer a space-efficient and cost-effective solution for xWDM transmission. Complete system information can be set up and displayed, including the name of chassis, terrain and related information of IP, constant operating time and the versions of the hardware and software.

SNMP Management:







Web Management:

Physical Port
Copper Port 10/100Base-T RJ45×2
SFP Port 100BASE-X SFP interfaces
Fiber Mode 100BASE-X, 2km-160km, SC/ST/FC
Parameters
Ethernet Standards IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3x flow control and back pressure

TS-1000



Packet Length 1536bytes
Transmission Mode Store and Forward
Exchange Property Delay time: < 7ps

Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps

DIP Switches



Managed Features Supports LFT (Link Fault Pass Through)

Supports Digital Diagnostic Monitor Interface (DDM) for SFP

Supports OAM/IP in-band management

Ingress/Egress Bandwidth control per port

Supports 16 IEEE 802.1Q Tag VLAN Group

SNMP alarm trap for power loss and port link down

Remote loop back test

Dying gasp (remote power failure detection)

LED Indicator Power, FEF, FX-Link, TX-SPD, TX-Duplex, TX-Link, LFP
Power Information
Power Input DC 5V
Power Consumption Full-load<4W
Physical Property
Dimensions 120mm×90mm×22mm
Installation Mode wall-mountable
Weight 100g
Working Environment
Operating Temperature 0°C~50°C
Operating Humidity 10%~90% non-condensing
Storage Temperature -10°C~70°C
Warranty
MTBF 50,000 hours
Defects Liability Period 1 year warranty, lifetime technical support
Certification Standard
EMC FCC Part15 Class A

CE-EMC/LVD

RoHS

EN61000-4-2 (ESD), EN61000-4-3 (RS)

EN6100044 (EFT), EN6100045 (Surge)

EN61000^1-6 (CS), EN61000-4-8

EN61000-4-11
