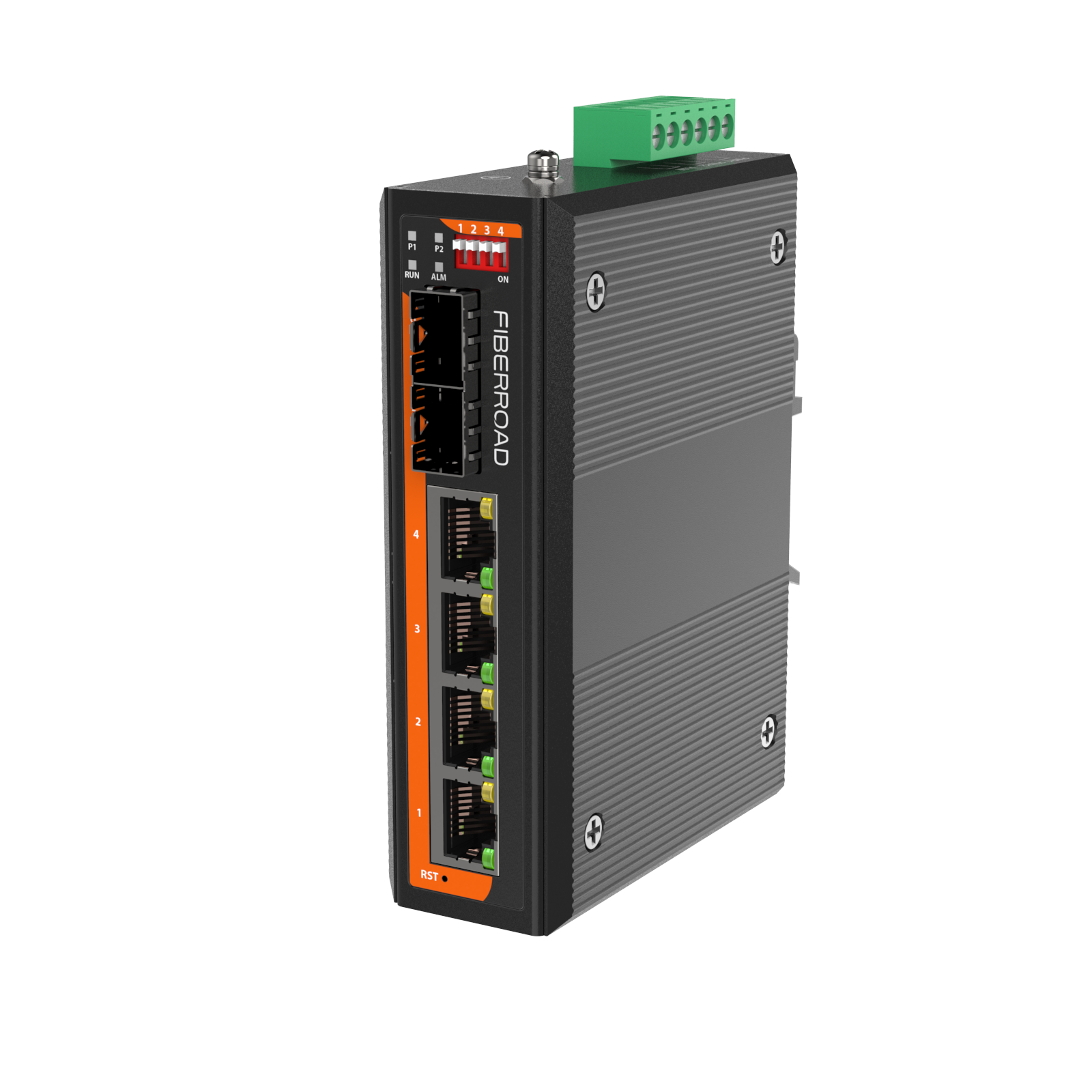

Cost-efficient Industrial PoE Network Switch
Fiberroad developed a Managed Lite Industrial PoE Network Switch for outdoor video surveillance systems. Applying Power over Ethernet technology to video surveillance can provide user-friendly web management and more advanced capabilities than Unmanaged Industrial PoE Network Switches.
|Ports||4×10/100/1000Base TX RJ45
|Port Mode(Tx)||Auto Negotiation
|Frame Size||9K||Transmission Mode||Store and Forward|
|PoE Ports||Port 1-4||Max Power Per Port||90W|
|Input Power||9-56VDC||Power Connector||1 Removable 6-contact Terminal Block|
|Power Consumption||3 Watts Max (Without PoE Loa)||DIP Switch||RSTP/VLAN/SPEED|
|Housing||Aluminium Case||IP Rating||IP40|
|Operating Temperature||-40℃ to +75℃||Dimensions||120x90x35mm|
|Installation Mode||DIN Rail and Wall Mount||Weight||350g|
Make Industrial Grade Network Switch More Durable
The Managed Industrial PoE Network Switch can operate reliably, stably and quietly in any hardened environment without affecting its performance. It has operating temperatures ranging from -40 to 75 degrees C in a rugged IP40 Aluminium housing. Additionally, 8KV surge protection increases product stability and protects users’ networks from devastating attacks, ensuring that the flow of operations does not fluctuate.
Optimize Video Surveillance Network Connectivity
Powered by robust QoS features and powerful traffic management, this managed industrial-grade network switch is optimized for business-class data, voice, and video applications. The feature is integrated with broadcast/multicast/unicast storm control, per port bandwidth controls, 802.1p/CoS/IP DSCP QoS priority, and remarking. IP and video stream performance are enhanced by the Industrial PoE++ Switch, which allows enterprises to appreciate limited network resources fully.
Power PoE Devices with Managed Industrial PoE++ Switch
The Industrial PoE Network Switch compliance with the 802.3af/at/bt PoE++ standard, each port allows up to 90W. Gigabit Ethernet port permits faster and more reliable connections for all devices. It is all you need to do to start the Ethernet-enabled device, and no more software setups or configurations are needed.
The value-Added features offer an Unexpected Experience
Industrial Grade Network Switches are equipped with intelligent DIP switches that enable users to deploy RSTP and VLAN functions quickly. So that small and medium-sized video surveillance networks can also have network reliability.
Ensure that audio and video applications remain clear and lag-free by setting the priority of the traffic based on QoS.
A virtual network allows device grouping in different physical LANs, improving information security and reducing traffic congestion.
Utilizing RSTP to provide redundancy in the Video Surveillance Network and enhance network performance and reliability.
|Ports||4×10/100/1000Base-TX RJ45 ports+2×100/1000Base-X SFP ports|
|Port Mode(Tx)||Auto-Negotiation Speed
Full/Half Duplex Mode
Auto MDI/MDI-X Connection
|Standards||IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
|Packet Buffer Size||2M|
|Maximum Packet Length||Up to 9K|
|MAC Address Table||4K|
|Transmission Mode||Store and Forward (full/half duplex mode)|
|Exchange Property||Delay time: < 7μs
Backplane bandwidth: 20Gbps
|VLAN ID Range||VID 1 to 4094|
|PoE & Power Supply|
|PoE Ports||Port 1 to 4 IEEE802.3af/at @PoE+||Port 1 to 4 IEEE802.3af/at/bt @PoE++|
|Power Supply Pin||Default: 1/2(+), 3/6(-)||Default: 1/2(+), 3/6(-) ,4/5(+), 7/8(-)|
|Max Power Per Port||30W||90W|
|Total PWR /Input Voltage||120W(DC48-56V) (Model dependent)||200W(DC52-56V) (Model dependent)|
|Power Consumption||3 Watts Max(without PoE load)|
|Input Voltage||9-56VDC,Redundant dual inputs|
|Operating Voltage||Non-PoE Mode: 9-56VDC
30W PoE Mode: 48-56VDC
90W PoE Mode: 52-56VDC(IEEE802.3bt model)
|Connector||1 removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm
|Protection||Overload Current Protection, Reverse Polarity Protection|
|Redundancy Protocol||Support STP/RSTP|
|Multicast Support||Support IGMP Snooping V1|
|VLAN||Support IEEE 802.1Q 4K VLAN, Port Isolation, Trunk Group Setting|
|QOS||Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight|
|Diagnostic Maintenance||Support port mirroring, Port Statistics, Cable Diagnostic|
|Management Function||WEB、SNMPv1, EEE, Green Ethernet|
|Security||Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint|
|PoE Management(PoE Model)||PoE Mode, State and Power Monitoring|
|Advance Functions||Bandwidth Control(Ingress and Egress Rate), Jumbo Frame, Firmware Online Upgrade, Configuration Backup|
