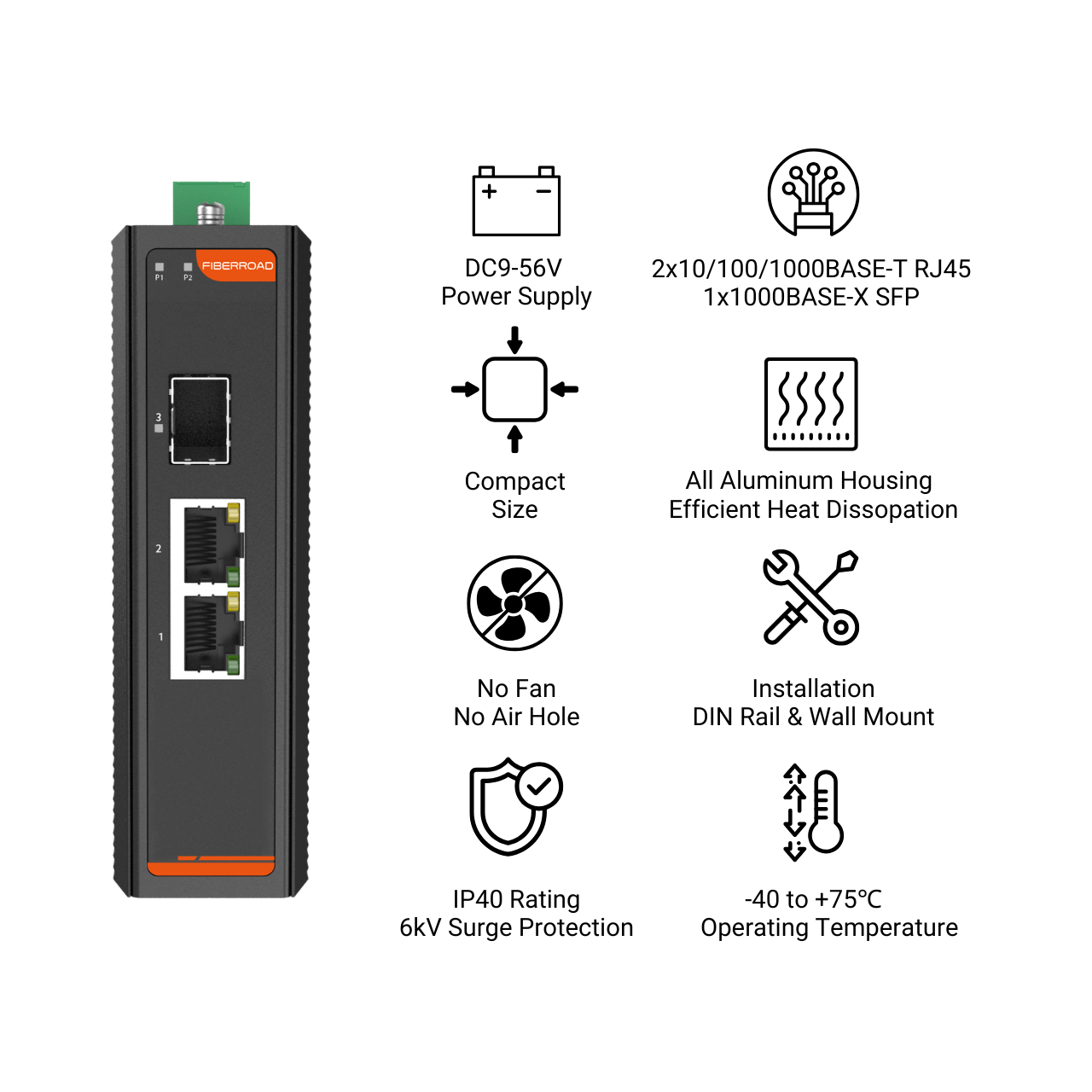

High-Speed Gigabit Connectivity for Industrial Demands
The 1000Mb Industrial Unmanaged Fiber Media Converter provides reliable Gigabit Ethernet (1000Base-T to 1000Base-FX/LX) connectivity, perfect for high-bandwidth industrial applications such as machine vision, automated production lines, and real-time data logging. By converting copper Ethernet to fiber optics, it eliminates signal degradation over long distances, supporting transmissions up to 120km with single-mode fiber. Its plug-and-play design ensures seamless integration into existing networks, delivering fast, stable data transfer without the complexity of managed systems—ideal for environments prioritizing simplicity and speed.
Rugged, Maintenance-Free Design for Harsh Environments
Built to endure extreme industrial conditions, this unmanaged media converter features a heavy-duty IP40-rated metal casing, wide operating temperatures (-40°C to 75°C), and resistance to vibration, dust, and electromagnetic interference (EMI). With no configuration required, it thrives in challenging settings like manufacturing floors, chemical plants, or outdoor solar farms. Dual 9-56V DC power inputs with reverse polarity protection ensure uninterrupted operation, while 6kV surge shielding guards against voltage spikes, minimizing downtime in mission-critical infrastructure.
Effortless Installation and Cost-Effective Operation
Designed for simplicity, this unmanaged converter offers true plug-and-play functionality, making it easy to deploy even in complex industrial networks. Its compact, DIN-rail mountable chassis saves space in control cabinets, and tool-free installation reduces setup time. Auto-negotiation and auto-MDI/MDIX support eliminate manual adjustments, while fiber-optic immunity to noise and ground loops ensures secure, error-free data transmission. A cost-effective solution, it delivers industrial-grade reliability without the overhead of advanced management features—perfect for businesses seeking robust performance with minimal maintenance.
| Hardware Specifications | |||

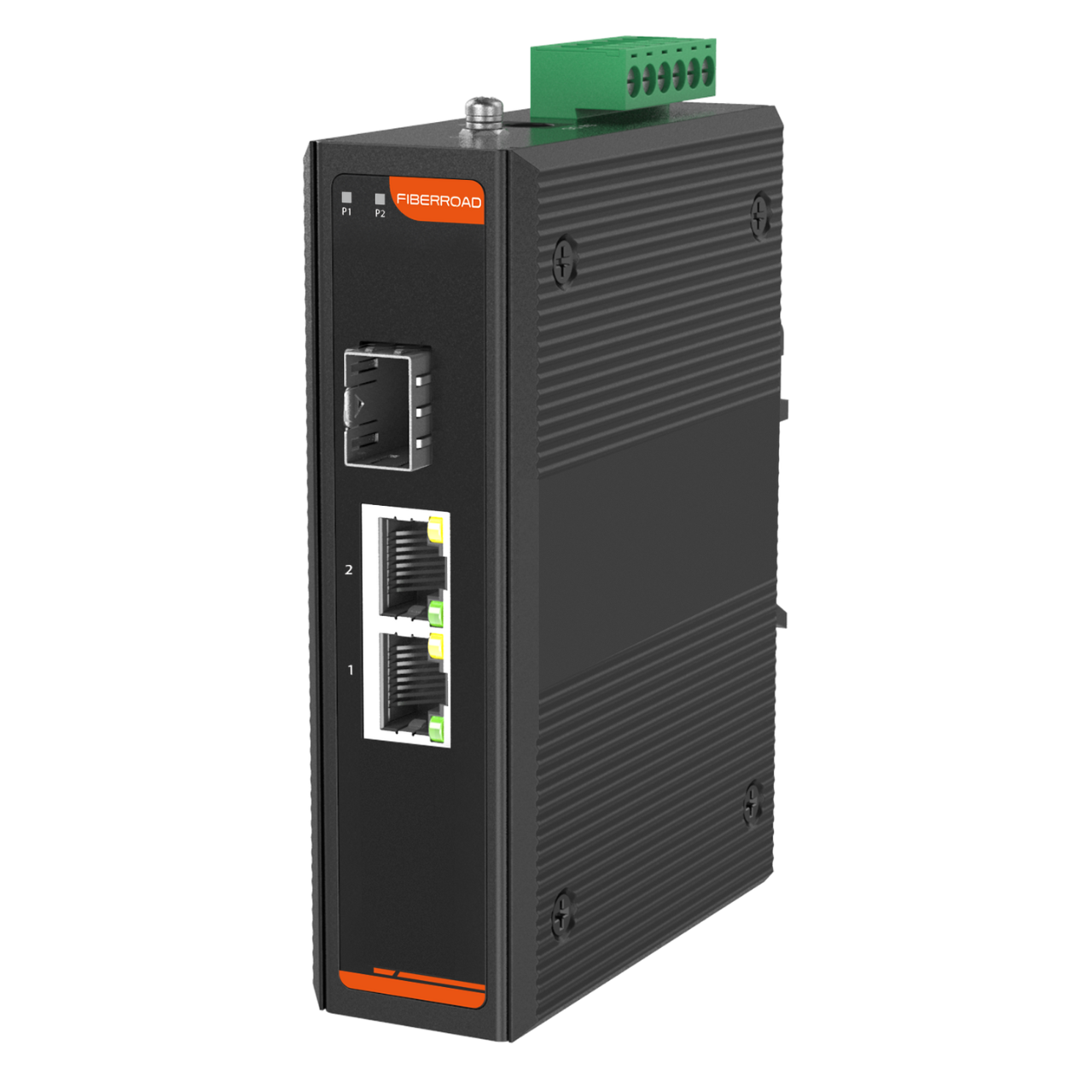

| Product | FR-7N3102 | FR-7N3102P | FR-7N3102BT |
| Copper Ports | 2×10/100/1000BASE-TX RJ45 Auto-MDI/MDI-X (Port 1-2) | ||
| Fiber Ports | 1x1000BASE-X SFP Slot (Port 2) | ||
| Enclosure | IP40 aluminum case | ||
| Installation | DIN-Rail and Wall-mount | ||
| Dimension | 120 x 90 x 35 mm | ||
| Weight | 400g(Bare weight), 500g(With package) | ||
| Surge Protection | ±6kV DC, ±4kV RJ45 | ±6kV DC, ±6kV RJ45 | |
| Switching | |||
| Switch Architecture | Store-and-Forward | ||
| Switch Fabric | 14Gbps/non-blocking | ||
| Forward Filter Rate | 14,880pps(10Mbps)
148,800pps(100Mbps) 1,488,000pps(1000Mbps) |
||
| Packet Buffer Size | 512 Kbits | ||
| MAX. Packet Length | 9K bytes | ||
| MAC Address Table | 2K entries, automatic source address learning and aging | ||
| Power Supply and PoE | |||
| Product | FR-7N3102 | FR-7N3102P | FR-7N3102BT |
| Power Input | 2 | ||
| Power Connector | 1 removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm(As required) |
||
| Operating Voltage | DC9-56V | DC48-56V | DC52-56V |
| Power Consumption | 5 Watts Max (without PoE load) | ||
| Protection | Reverse Polarity, Overload Current | ||
| PoE Ports | \ | Port 1-2 IEEE802.3 af/at | Port 1-2 IEEE802.3 af/at/bt |
| PoE Power Supply Type | \ | End-span | End-span |
| Power Supply Pin | \ | 1/2(+), 3/6(-) | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Max Power Per Port | \ | 30W | 90W |
| PoE Power Budget | \ | 65W | 185W |
| Environmental | |||
| Operating Temperature | -40℃ to +75℃ (-40 to 167 ℉) | ||
| Storage Temperature | -40℃ to +85℃ (-40 to 185 ℉) | ||
| Operating Humidity | 5%~95% (non-condensing) | ||
| Heat Dissipation | 7 BTU/h (Non-PoE), 218 BTU/h (with 60W PoE load), 628 BTU/h (with 90W PoE load) | ||
| Cooling | Passive Cooling | ||
| MTBF | ＞500,000 hours @Telcordia SR-332 GF 30°C | ||
| LED Indicators | |||
| P1 & P2 | ON: Power is being supplied ,OFF: Power is not being supplied | ||
| Fiber Port | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active | ||
| RJ45 Port Amber LEDs | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active | ||
| RJ45 Port Green LEDs | ON: Port is operating at 1000 Mb/s, OFF: Port is operating at 10/100 Mb/s | ||
