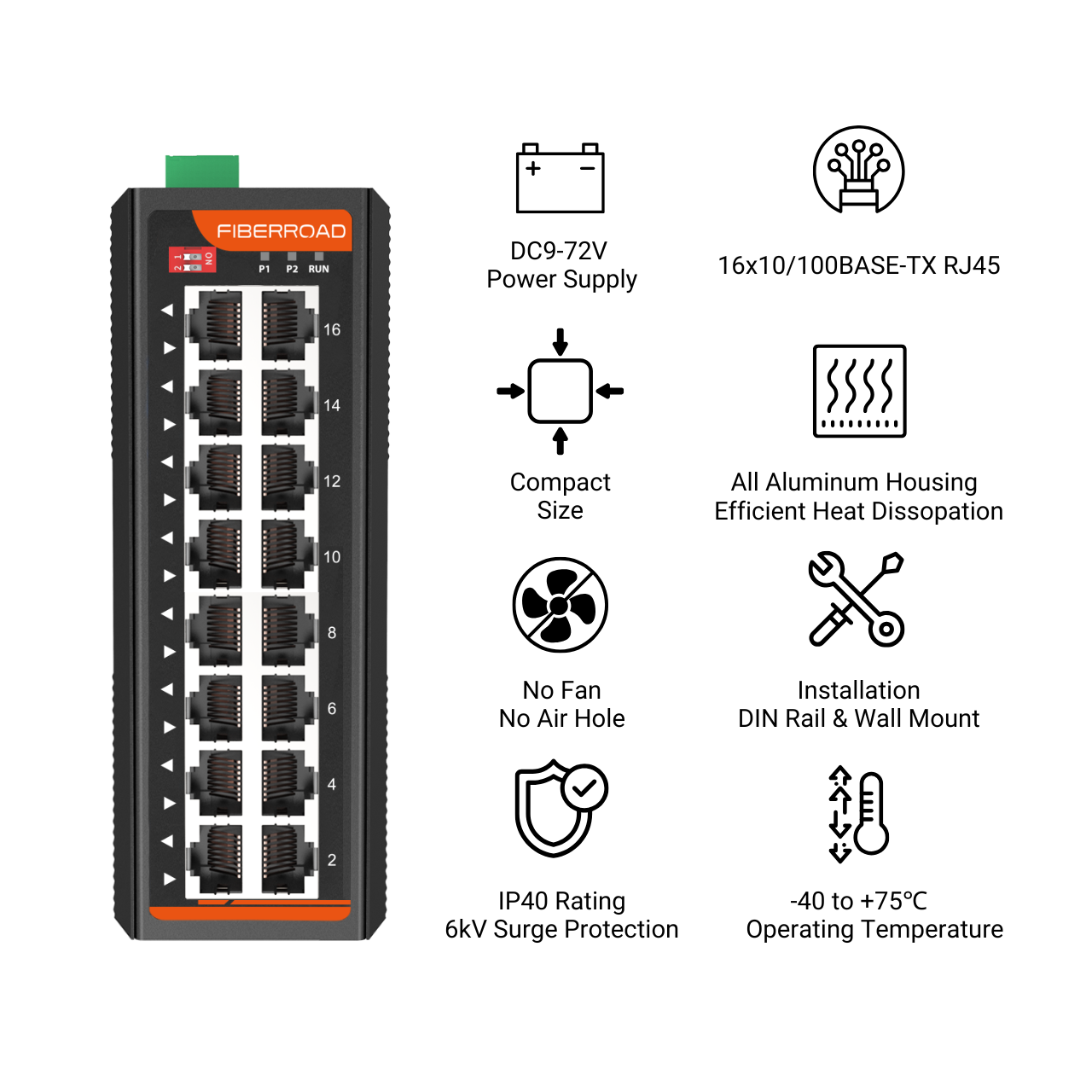

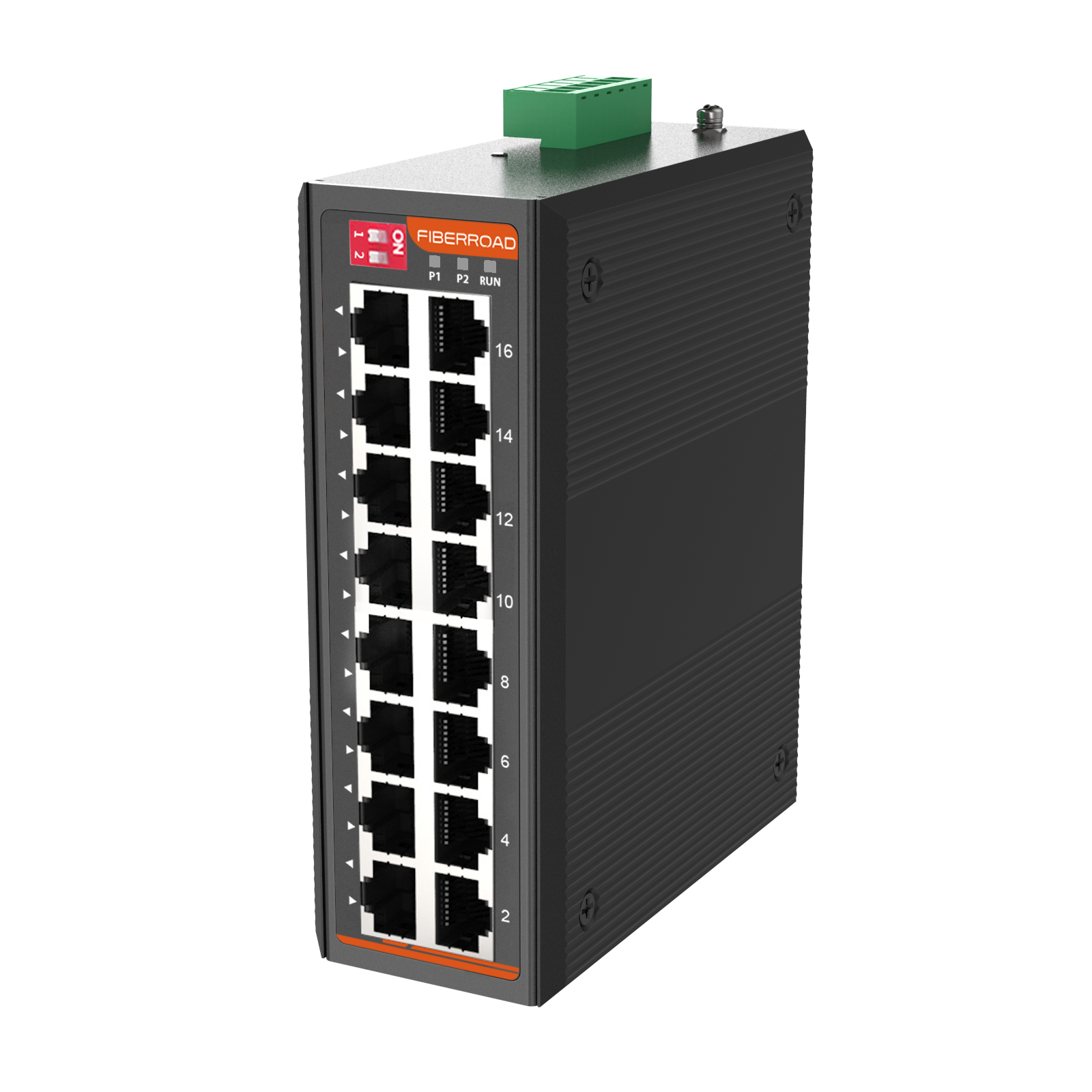

Unleashing the Power of Industrial Automation with Industrial Ethernet Switch
The Fiberroad Auto Pro Series Industrial Ethernet Switch is a state-of-the-art device that has been engineered specifically to cater to the unique needs of industrial automation. It stands out from its competitors with its exceptional features, including one-click broadcast storm protection. This feature ensures that networks remain secure and stable even during high-intensity transmission periods, which can often compromise standard switches. With this switch, users can rest easy knowing that their network will not be affected by sudden surges in traffic or unforeseen data spikes. The Fiberroad Auto Pro Series Industrial Ethernet Switch offers unmatched reliability, making it an ideal choice for businesses operating in harsh environments where consistent performance is critical for success.
Key Features
Auto Broadcast Suppression
Auto Pro series industrial switches are equipped with Auto Broadcast Suppression technology, which improves the stability and reliability of industrial networks and allows uninterrupted communication. Auto Broadcast Suppression is an intelligent network management function that can identify and respond to broadcast storms that may occur in the network.
Auto broadcast storm suppression，The switch independently learns the addresses of termination devices connected to a port by evaluating the source addresses in the data. Only packets with unknown addresses, with a source address of this port or with a multicast/broadcast address in the destination address field are forwarded via the corresponding port. Up to 2048 MAC addresses can be stored.
Auto PROFINET PTCP Filtering
Auto PROFINET PTCP filter is not only a key function to improve communication efficiency, but also an important part of Auto Pro switches to provide excellent solutions for industrial automation. It ensures the stability and reliability of real-time communication through an intelligent filtering mechanism. This function gives Auto Pro series industrial switches a higher level of intelligence. Its sophisticated filtering algorithm not only identifies PTCP traffic, but also intelligently adapts to network changes, ensuring that Auto Pro series switches can operate at their best even in complex industrial environments.
By filtering frames with destination MAC addresses in the range 01-80-C2-00-00-02 through 01-80-C2-00-00-0F, Auto PROFINET PTCP Filtering blocks PROFINET PTCP-Delay traffic. Because PTCP-Delay uses the same MAC address (01-80-C2-00-00-0E), the filter blocks LLDP traffic as well.
Auto QoS Priority
Auto Pro series industrial switches adopt advanced QoS （Quality of Service） technology to provide superior performance and stability for industrial Ethernet communications through intelligent traffic analysis and dynamic priority adjustment. This series of switches can automatically adjust the priority of packets based on traffic characteristics and network requirements to ensure real-time transmission of critical data. This intelligent QoS prioritization not only improves network efficiency, but also effectively reduces response time, making industrial communication systems more flexible and reliable.
Auto QoS, when heavy traffic occurs, packets with an 802.1Q priority level of 4 to 7 or with an IPv4 Type of Service Precedence value of one or more are considered high priority and are processed before packets with an 802.1Q priority level of 0 to 3 or an IPv4 Type of Service value of one or more.
Auto Jumbo Frame Support
The Auto Pro series of industrial switches introduces advanced Auto Jumbo Frame technology, which allows the switch to intelligently identify and process jumbo frames, enhancing the efficiency and volume of data transmission. By automatically recognizing jumbo frames, the switch can effectively cope with high-capacity data streams, providing excellent performance support for real-time data collection, video surveillance and other application scenarios.
Real-time performance and reliability play a key role in industrial communication. Auto Jumbo Frame technology of Auto Pro series switches not only improves the speed of data transmission but also drastically reduces the delay of packet transmission, ensuring the timeliness of real-time data.
Auto Power Alert
More than just a high-performance data transmission device, the Auto Pro series switch is a reliable guardian of the industrial Ethernet communication network. Auto Pro supports Auto Power Alert, which alerts managers of any power problems as soon as abnormal conditions such as voltage fluctuations or power interruptions are detected. This timely notification mechanism helps us to respond quickly and take necessary measures to prevent potential network failures and maintain the stability and reliability of the entire system.
| Hardware Specifications | |||
| FICE205 | FICE208 | FICE216 | |
| Ports | 5×10/100BASE-TX RJ45 | 8×10/100BASE-TX Port(RJ45) | 16×10/100BASE-TX Port(RJ45) |
| Port Mode(Tx) | Auto Negotiation
Full/Half Duplex Mode Auto MDI/MDI-X Connection |
||
| Standards | IEEE 802.3 for 10BaseT
IEEE 802.3u for Fast Ethernet |
||
| Packet Buffer Size | 512K | 1M | 1M |
| Maximum Packet Length | 9K | 9K | 9K |
| MAC Address Table | 2K | 2K | 4K |
| Processing Type | Store and Forward, Auto Negotiation, Half-duplex back-pressure and IEEE 802.3x full-duplex flow control, Auto MDI/MDIX | ||
| Switch Fabric | 1G | 1.6G | 3.2Gbps |
| Forward and Filtering Rate | 14,880pps for 10Mbps,148,810pps for 100Mbps | ||
| Network Cables | 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters
100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters |
||
| Physical Characteristics | ||
| Housing | Aluminum case | |
| IP Rating | IP40 | |
| Dimensions | 100mm x 78mm x 40mm | 138mm x 108mm x 49mm |
| Installation | DIN Rail/Wall Mount | |
| Environmental | ||
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) | |
| Operating Humidity | 5%~95% (non-condensing) | |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) | |
| Surge Protection | ±6kV DC, ±4kV RJ45 | |
| MTBF | ＞500,000 hours @ Telcordia SR-332 Standard | |
| Heat Dissipation | 10 BTU/h | 34 BTU/h |
| Cooling | Passive Cooling, Fanless Design | |
| Noise Level | 0 dBA | |
| Power Supply | |||
| Input Voltage | 9-72VDC, Redundant dual inputs | ||
| Power Consumption | ＜2W | ＜3W | ＜5W |
| Power Inputs | 2 | ||
| Connector | 1 removable 6-contact terminal block
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm(1A@24VDC) |
||
| Protection | Overload Current Protection, Reverse Polarity Protection | ||
| Alarm Relay | One relay output for power failure, Alarm relay current carrying capacity: 1A@24V DC | ||
| LED Indicators | |||
| PI & P2 | ON: Power is being supplied, OFF: Power is not being supplied | ||
| LINK/ACT | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection not active | ||
| RUN | Blinking: The system is running well, OFF: The system is running unwell | ||
