5 Port 100M Industrial Ethernet Switch

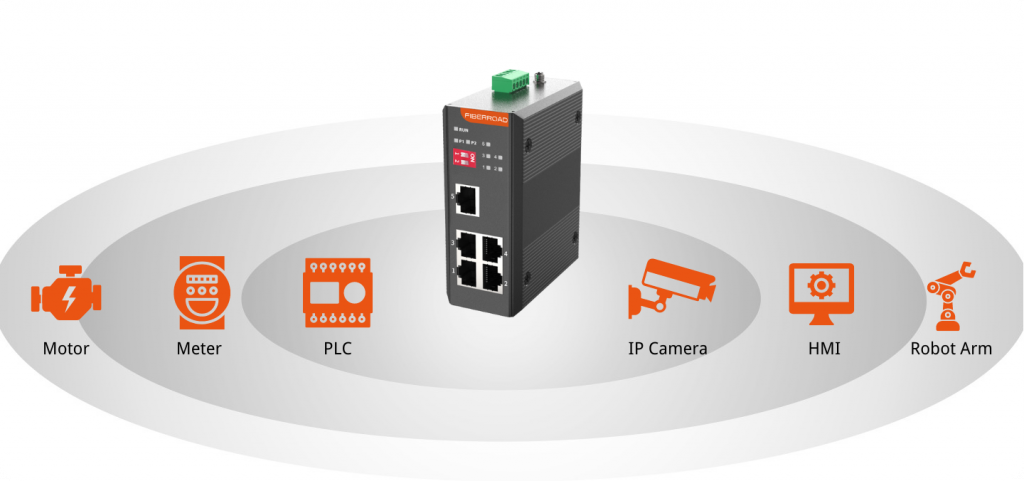

Fiberroad FR-7A Series Industrial Ethernet Switch is a cutting-edge device specifically designed for industrial automation. The switch offers top-of-the-line features including one-click broadcast storm protection, which ensures that networks remain safe and stable during high-intensity transmission periods. With 10/100Mbps Ethernet ports, the Fiberroad FR-7A series can be used to connect multiple devices within an industrial setting. Additionally, its compact design enables it to fit into tight spaces while guaranteeing optimal performance and functionality. This switch is built with robust housing material that makes it suitable for use in harsh environments such as factories or outdoor installations; It also supports a wide range of operating temperatures from -40°C to +75°C making it perfect for any industry where environmental factors play a pivotal role in operations. Overall, this Industrial Ethernet Switch by Fiberroad sets the standard when it comes to reliability, durability, and efficiency in industrial automation settings.

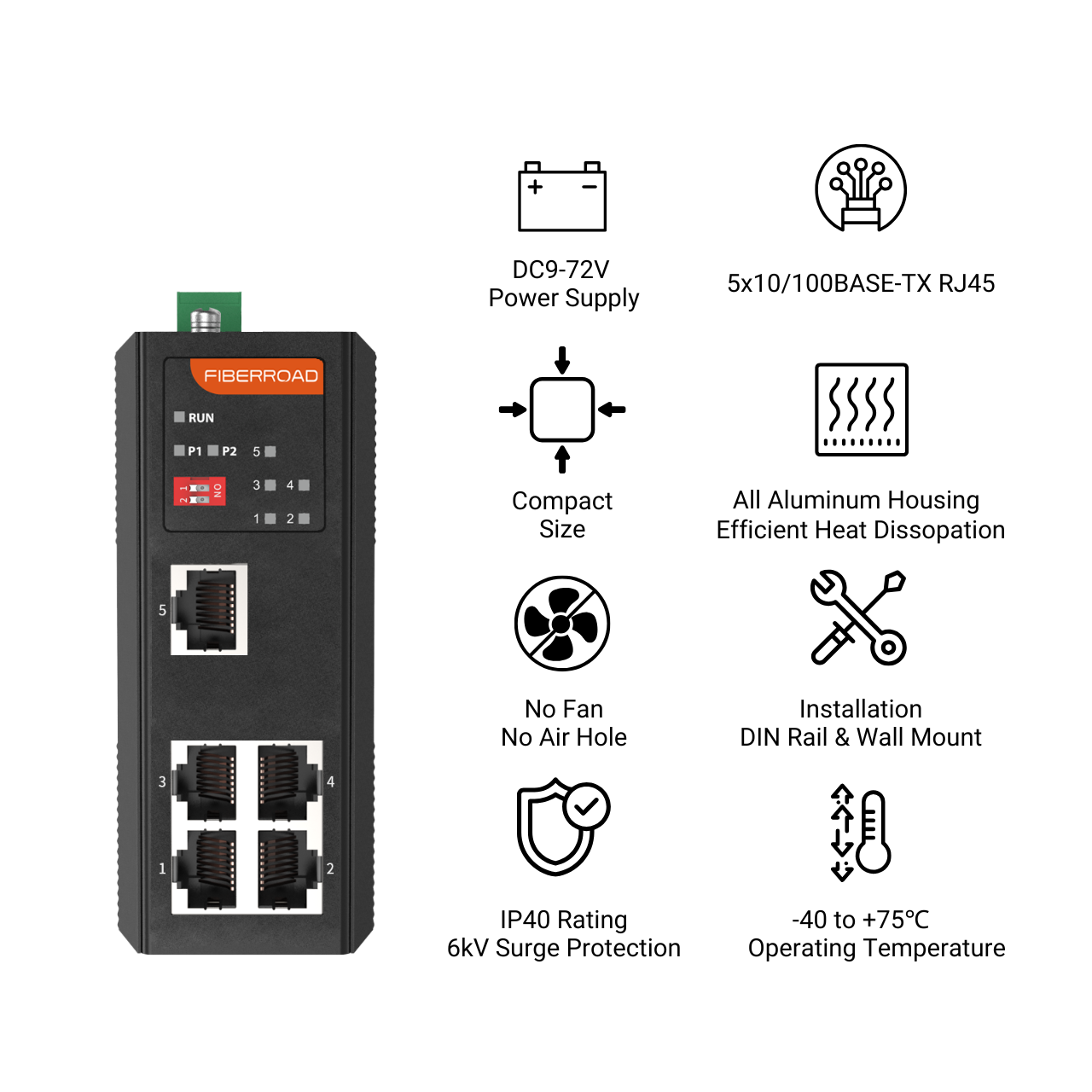

Product Features

  • DIP Switch supports Broadcast Storm Protection
  • Auto QoS Priority can automatically adjust the priority of packets based on traffic characteristics and network requirements to ensure real-time transmission of critical data.
  • Auto Jumbo Frame technology, allows the switch to intelligently identify and process jumbo frames, enhancing the efficiency and volume of data transmission.
  • Dual redundant power DC9-72V inputs with industrial surge, spike and reverse power protection.
  • Auto crossover (MDI/MDIX) automatically supports either straight-through or crossover which greatly reduces cable installation errors.
  • Support power input polarity protection; no worries about the reverse connection


Video Gallery

Quality Certifications
Share This Product

Maximizing Reliability with the 5-Port Industrial Automation Ethernet Switch

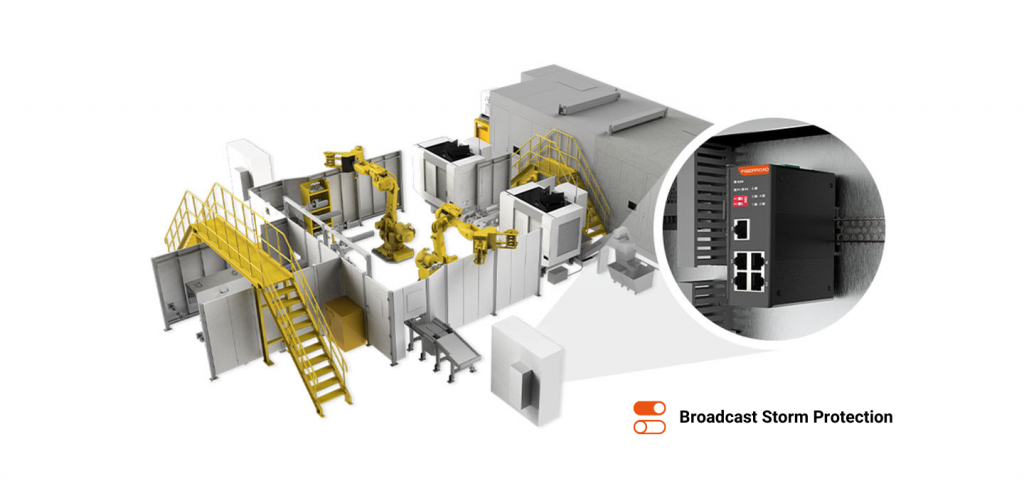

Maximizing efficiency and reliability in industrial automation is critical for businesses to remain competitive. The 5 Port Industrial Automation Ethernet Switch is an ideal solution that ensures seamless communication between various devices within the network, providing reliable data transmission and reducing possible downtime. With its advanced features and high-performance capabilities, the switch can handle multiple connections simultaneously while maintaining consistent speed levels. One of its key features includes broadcast storm protection, which safeguards against network failures caused by excessive traffic congestion or packet collisions on the network. This essential feature helps prevent system overload and keeps data flowing smoothly through the switch, ensuring uninterrupted operations at all times. Overall, with its state-of-the-art technology and robust design, this industrial ethernet switch provides a cost-effective solution for businesses seeking efficient and reliable connectivity solutions to improve their bottom line.

Key Features

Auto Broadcast Suppression

Auto Pro series industrial switches are equipped with Auto Broadcast Suppression technology, which improves the stability and reliability of industrial networks and allows uninterrupted communication. Auto Broadcast Suppression is an intelligent network management function that can identify and respond to broadcast storms that may occur in the network.

Auto broadcast storm suppression,The switch independently learns the addresses of termination devices connected to a port by evaluating the source addresses in the data. Only packets with unknown addresses, with a source address of this port or with a multicast/broadcast address in the destination address field are forwarded via the corresponding port. Up to 2048 MAC addresses can be stored.

Auto PROFINET PTCP Filtering

Auto PROFINET PTCP filter is not only a key function to improve communication efficiency, but also an important part of Auto Pro switches to provide excellent solutions for industrial automation. It ensures the stability and reliability of real-time communication through an intelligent filtering mechanism. This function gives Auto Pro series industrial switches a higher level of intelligence. Its sophisticated filtering algorithm not only identifies PTCP traffic, but also intelligently adapts to network changes, ensuring that Auto Pro series switches can operate at their best even in complex industrial environments.

By filtering frames with destination MAC addresses in the range 01-80-C2-00-00-02 through 01-80-C2-00-00-0F, Auto PROFINET PTCP Filtering blocks PROFINET PTCP-Delay traffic. Because PTCP-Delay uses the same MAC address (01-80-C2-00-00-0E), the filter blocks LLDP traffic as well.

Auto QoS Priority

Auto Pro series industrial switches adopt advanced QoS (Quality of Service) technology to provide superior performance and stability for industrial Ethernet communications through intelligent traffic analysis and dynamic priority adjustment. This series of switches can automatically adjust the priority of packets based on traffic characteristics and network requirements to ensure real-time transmission of critical data. This intelligent QoS prioritization not only improves network efficiency, but also effectively reduces response time, making industrial communication systems more flexible and reliable.

Auto QoS, when heavy traffic occurs, packets with an 802.1Q priority level of 4 to 7 or with an IPv4 Type of Service Precedence value of one or more are considered high priority and are processed before packets with an 802.1Q priority level of 0 to 3 or an IPv4 Type of Service value of one or more.

 Auto Jumbo Frame Support

The Auto Pro series of industrial switches introduces advanced Auto Jumbo Frame technology, which allows the switch to intelligently identify and process jumbo frames, enhancing the efficiency and volume of data transmission. By automatically recognizing jumbo frames, the switch can effectively cope with high-capacity data streams, providing excellent performance support for real-time data collection, video surveillance and other application scenarios.

Real-time performance and reliability play a key role in industrial communication. Auto Jumbo Frame technology of Auto Pro series switches not only improves the speed of data transmission but also drastically reduces the delay of packet transmission, ensuring the timeliness of real-time data.

Auto Power Alert

More than just a high-performance data transmission device, the Auto Pro series switch is a reliable guardian of the industrial Ethernet communication network. Auto Pro supports Auto Power Alert, which alerts managers of any power problems as soon as abnormal conditions such as voltage fluctuations or power interruptions are detected. This timely notification mechanism helps us to respond quickly and take necessary measures to prevent potential network failures and maintain the stability and reliability of the entire system.

Ethernet Interface
FR-7A1005 FR-7A1008 FR-7A1016
Ports 5×10/100Base-T Port(RJ45) 8×10/100Base-T Port(RJ45) 16×10/100-T Port(RJ45)
Port Mode(Tx)


Full/Half Duplex Mode

Auto MDI/MDI-X Connection


IEEE 802.3 for 10BaseT

IEEE 802.3u for Fast Ethernet

Packet Buffer Size 512K 512K 1M
Maximum Packet Length 9K 10K 10K
MAC Address Table 1K 1K 2K
Transmission Mode Store and Forward (full/half duplex mode)
Switch Fabric 1G 1.6G 3.2Gbps(non-blocking
Throughput(packet per second) 0.74Mpps 1.19Mpps 2.38Mpps
Switching Latency ≤7us ≤7us ≤7us
Network Cables 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters
100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters
Physical Characteristics
Model FA-7A1005/7A1008 FR-7A1016
Housing Aluminium case
IP Rating IP40
Dimensions                   100mm x 78mm x 40mm (L x W x H) 138mm x 108mm x 49mm (L x W x H)

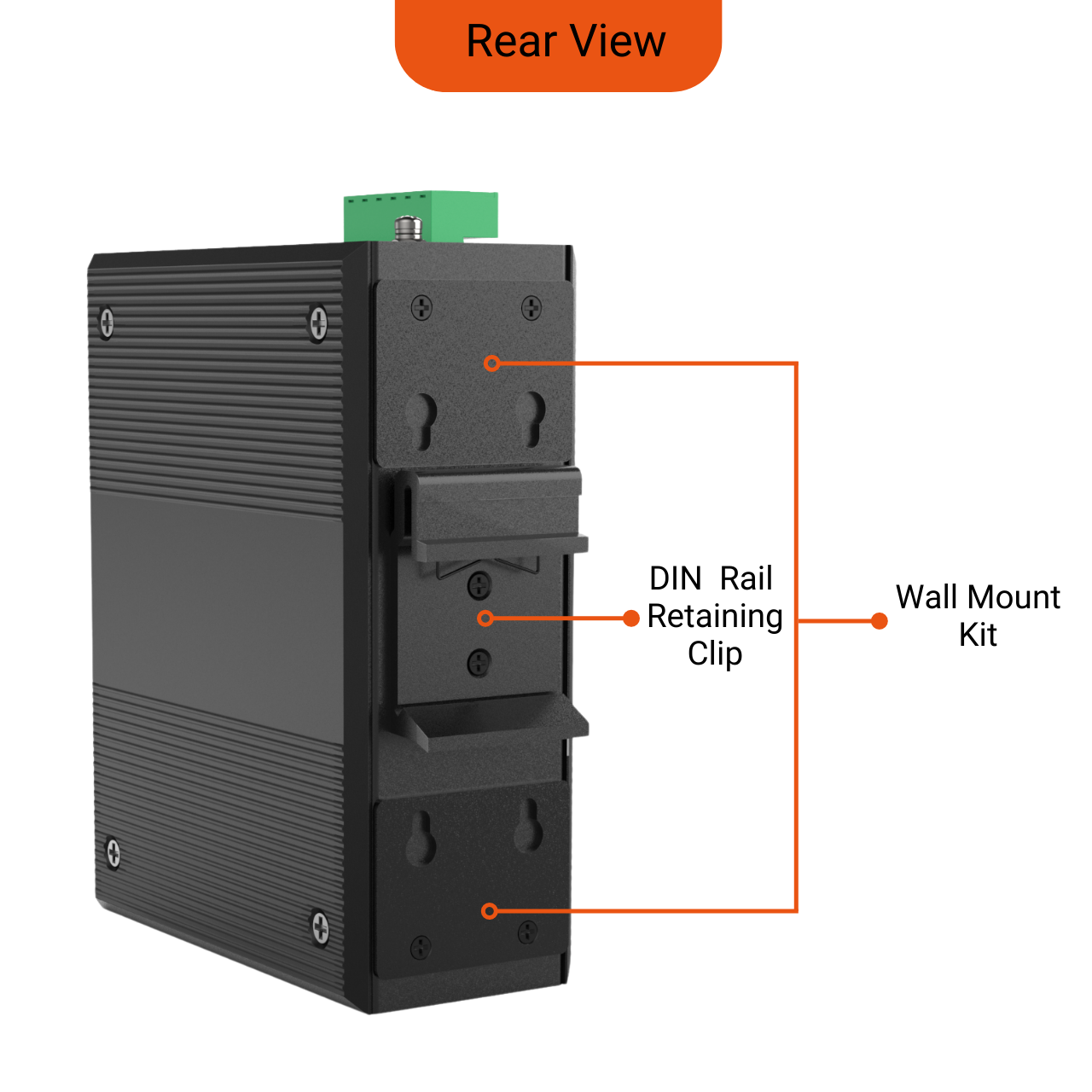

Installation DIN Rail/Wall Mount
Weight 300g 680g
Operating Temperature -40℃~75℃ (-40 to 167 ℉)
Operating Humidity 5%~95% (non-condensing)
Storage Temperature -40℃~85℃ (-40 to 185 ℉)
MTBF >500,000 hours @ Telcordia SR-332 Standard
Heat Dissipation 10 BTU/h 34 BTU/h
Cooling Passive Cooling, Fanless Design
Noise Level 0 dBA
