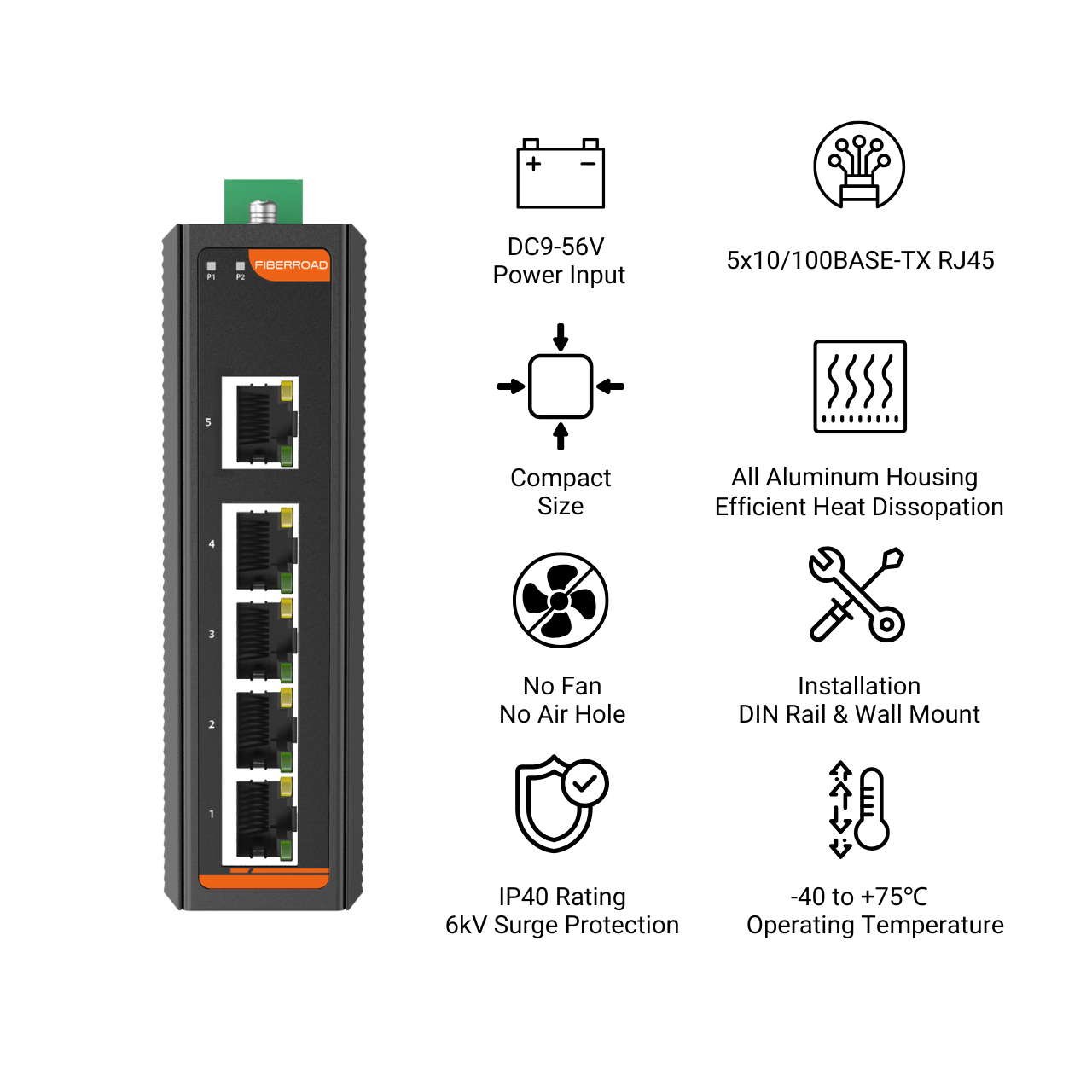

Rugged Industrial Design for Extreme Environments
Built to withstand harsh conditions, this 5-port industrial Ethernet switch operates reliably in temperatures ranging from -40°C to +75°C. Its robust construction ensures stable performance in demanding applications such as factory automation, outdoor surveillance, and transportation systems, where exposure to extreme temperatures and vibrations is common. The durable design guarantees long-term operation without compromise.
Redundant Power Protection for Maximum Uptime
Featuring a wide-range 9-56V DC redundant power input with reverse polarity protection, this switch delivers uninterrupted operation in mission-critical environments. The dual power inputs provide backup during voltage fluctuations or outages, while reverse polarity protection prevents damage from incorrect wiring. This makes it ideal for industrial settings where continuous connectivity is essential, such as power plants or production lines.
Auto-MDI/MDIX for Simplified Installationd Operation
Equipped with Auto-MDI/MDIX functionality, this switch eliminates the need for crossover cables by automatically detecting and adjusting to connected devices. This plug-and-play feature streamlines network deployment, reduces installation errors, and ensures seamless connectivity between various industrial equipment like PLCs, sensors, and control systems—saving time and effort during setup.
Intelligent MAC Address Management
Supporting MAC address auto-learning and auto-aging, this switch optimizes network efficiency by dynamically updating connected device information. The auto-aging feature removes inactive entries, freeing up resources and maintaining high performance in dynamic industrial environments where devices may frequently connect or disconnect. This ensures reliable communication and minimizes network congestion.
Compact and Reliable Industrial Networking Solution
Designed for space-constrained environments, this compact 5-port switch offers reliable 10/100Mbps connectivity with industrial-grade durability. Its small footprint and robust features make it perfect for integration into control cabinets, machinery, or remote installations where space is limited but performance cannot be compromised. Ideal for upgrading legacy systems or expanding industrial networks with minimal hassle.
| Hardware Specifications | |||
| Product | FR-7N1005 | FR-7N1005P | FR-7N1005BT |
| Copper Ports | 5×10/100BASE-TX RJ45 Auto-MDI/MDI-X (Port 1-5) | ||
| Fiber Ports | \ | ||
| Enclosure | IP40 aluminum case | ||
| Installation | DIN-Rail and Wall-mount | ||
| Dimension | 120 x 90 x 35 mm | ||
| Weight | 380g(Bare weight), 480g(With package) | ||
| Surge Protection | ±6kV DC, ±4kV RJ45 | ±6kV DC, ±6kV RJ45 | |
| Switching | |||
| Switch Architecture | Store-and-Forward | ||
| Switch Fabric | 1.8Gbps/non-blocking | ||
| Forwarding Rate | 0.74 Mpps(64-byte packet size) | ||
| Packet Buffer Size | 1 Mbits | ||
| MAX. Packet Length | 1536 bytes | ||
| MAC Address Table | 2K entries, automatic source address learning and aging | ||
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex | ||
| Power Supply and PoE | |||
| Power Input | 2 | ||
| Power Connector | 1 removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm(As required) |
||
| Operating Voltage | DC9-56V | DC48-56V | DC52-56V |
| Power Consumption | 5 Watts Max (without PoE load) | ||
| Protection | Reverse Polarity, Overload Current | ||
| PoE Ports | \ | Port 1 to 4 IEEE802.3 af/at | Port 1 to 4 IEEE802.3 af/at/bt |
| PoE Power Supply Type | \ | End-span | End-span |
| Power Supply Pin | \ | 1/2(+), 3/6(-) | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Max Power Per Port | \ | 30W | 90W |
| PoE Power Budget | \ | 120W
(Depending on power input) |
120W
(Depending on power input) |
| Environmental | |||
| Operating Temperature | -40℃ to +75℃ (-40 to 167 ℉) | ||
| Storage Temperature | -40℃ to +85℃ (-40 to 185 ℉) | ||
| Operating Humidity | 5%~95% (non-condensing) | ||
| Heat Dissipation | 10 BTU/h (Non-PoE), 430 BTU/h (with 120W PoE load) | ||
| Cooling | Passive Cooling | ||
| MTBF | ＞500,000 hours @MIL-HDBK-217F GF 25℃ | ||
| LED Indicators | |||
| P1 & P2 | ON: Power is being supplied ,OFF: Power is not being supplied | ||
| RJ45 Port Amber LEDs | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active | ||
| RJ45 Port Green LEDs | ON: Port is operating at 100 Mb/s, OFF: Port is operating at 10 Mb/s | ||
