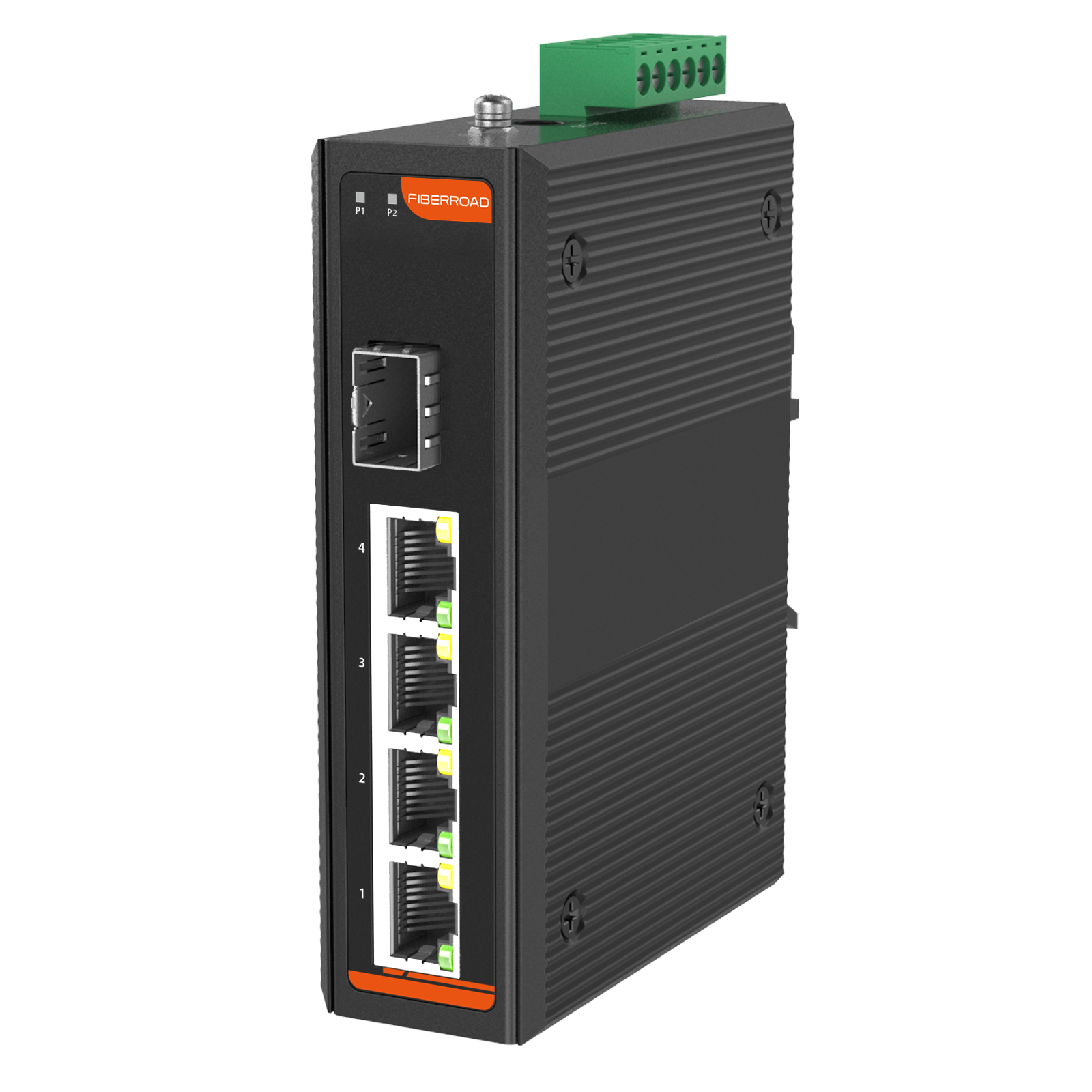

Industrial Gigabit PoE Switch

The Unmanaged Industrial PoE++ Switch is designed for small industrial network applications. It provides an easy way to make the access point to Fast or Gigabit Ethernet. With a robust design, this switch is ideal for industrial or outdoor surveillance, withstanding the harshest conditions. The Industrial switch is Plug-and-Play, allowing for easy and quick deployment. It can supply power to PD terminal equipment such as wireless AP, webcam, VoIP, and visual intelligent building intercom through network cable and meet the network environment that needs a high-density PoE/PoE+/PoE++ power supply.

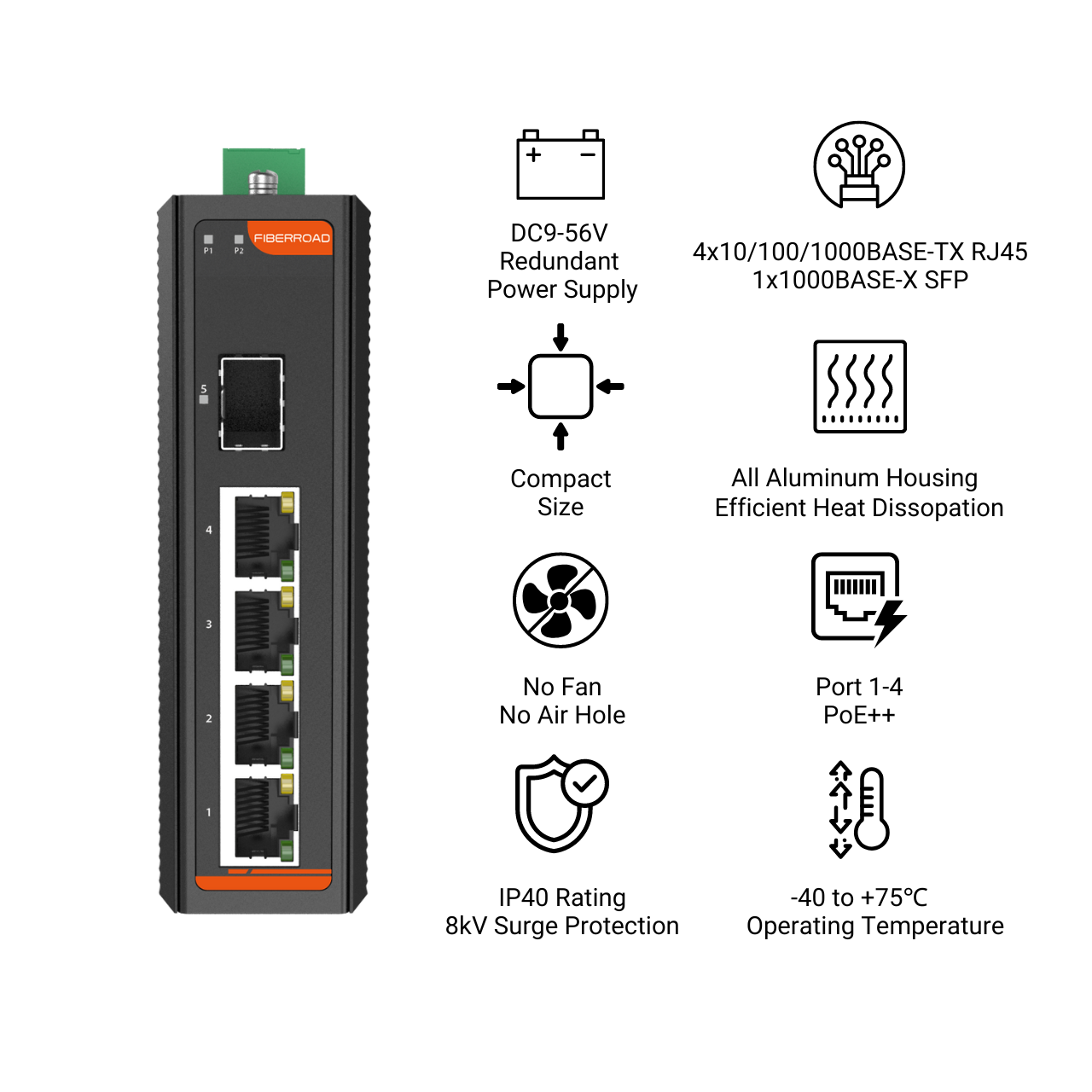

Product Features

  • Support up to 4 ports x 10/100Base-T or 10/100/1000Base-T and 1×100/1000Base-X SFP
  • Full/Half-duplex self-adaptation
  • MDI/MDIX automatic recognition
  • Optionally support IEEE 802.3af/at PoE+ Standard, without damaging not-PoE devices.
  • Jumbo Frame up to 9K, 12G backplane bandwidth
  • Working temperature -40 to 75℃
  • Wide-range DC9~56V power input
  • Support power input polarity protection; no worries about the reverse connection
  • Aluminium shell, fanless design
  • Free fall, shock-proof and vibration-proof for industries
  • Plug and play; no software configuration is needed

Video Gallery

Quality Certifications
Guarantee
Share This Product

Exploring the Key Features of Industrial Gigabit PoE Switches: Efficiency, Reliability, and Scalability

An Industrial Gigabit PoE Switch is a cutting-edge networking solution that offers a multitude of key features, namely efficiency, reliability, and scalability. Efficiency is a paramount aspect in industrial settings where time is money. These switches are designed to optimize power consumption by efficiently managing the delivery of Power over Ethernet (PoE) to connected devices. By intelligently allocating power according to device requirements, they ensure maximum energy efficiency without compromising performance. Additionally, these switches boast exceptional reliability due to their rugged construction and superior-quality components. They are built to withstand harsh environmental conditions such as extreme temperatures, vibrations, and electrical disturbances commonly found in industrial environments. This ensures uninterrupted network connectivity critical for mission-critical operations. Furthermore, one of the standout features of Industrial Gigabit PoE Switches is their scalability potential. With flexible port configurations and support for high-speed data transmission rates up to 1Gbps, these switches can effortlessly accommodate evolving network infrastructures with ease while maintaining optimal performance at all times.

Industrial Gigabit PoE Switch
Product Specifications
Ports 4×10/100/1000Base TX RJ45
1x1000Base-X SFP/1×9
Port Mode(Tx) Auto Negotiation
Full/Half Duplex
Auto MDI/MDIX
Frame Size 10K PoE Ports Port 1-4
Input Power 9-56V DC Max Power Per Port 90W
Housing Aluminium Case IP Rating IP40
Operating Temperature -40℃ to +75℃ Dimensions 120x90x35mm
Installation Mode DIN Rail and Wall Mount Weight 350g

How Industrial Gigabit PoE Switches Revolutionize Connectivity in Industrial Environments

The emergence of Industrial Gigabit PoE Switches has marked a groundbreaking revolution in the realm of connectivity within industrial environments. With their advanced features and robust design, these cutting-edge switches have redefined the way industries operate by providing seamless networking solutions. Equipped with multiple gigabit Ethernet ports, these switches enable high-speed data transfer, paving the way for faster communication and enhanced productivity in industrial settings.

Industrial Gigabit PoE Switch

Streamlining Network Connectivity with Industrial Gigabit PoE Switches

The Industrial Gigabit PoE Switch is designed to meet the high standards set by the 802.3af/at/bt PoE++ standard, making it a reliable and efficient solution for any network infrastructure. With each port capable of delivering up to 90W of power, this switch ensures seamless connectivity for all connected devices. The inclusion of Gigabit Ethernet ports takes performance to a whole new level, enabling faster data transfer speeds and providing more stable connections across the board. Setting up an Ethernet-enabled device becomes a breeze with this switch as it eliminates the need for complicated software configurations or setups. Simply plug in your device, and you’re good to go! This Industrial Gigabit PoE Switch truly encompasses everything needed to empower your network with efficiency and simplicity.

Industrial Gigabit PoE Switch

Enhance Efficiency and Cost Savings in Industrial Environments

In today’s ever-evolving industrial landscape, maximizing efficiency and reducing costs are key priorities for businesses. With the advent of Industrial Gigabit PoE Switches, companies now have a powerful solution to enhance their operational performance and achieve significant savings. These advanced switches provide not only high-speed data transfer capabilities but also the ability to transmit power over Ethernet cables, eliminating the need for separate electrical wiring. This streamlined approach simplifies installation processes while ensuring seamless connectivity across various devices in industrial environments.

Industrial Gigabit PoE Switch

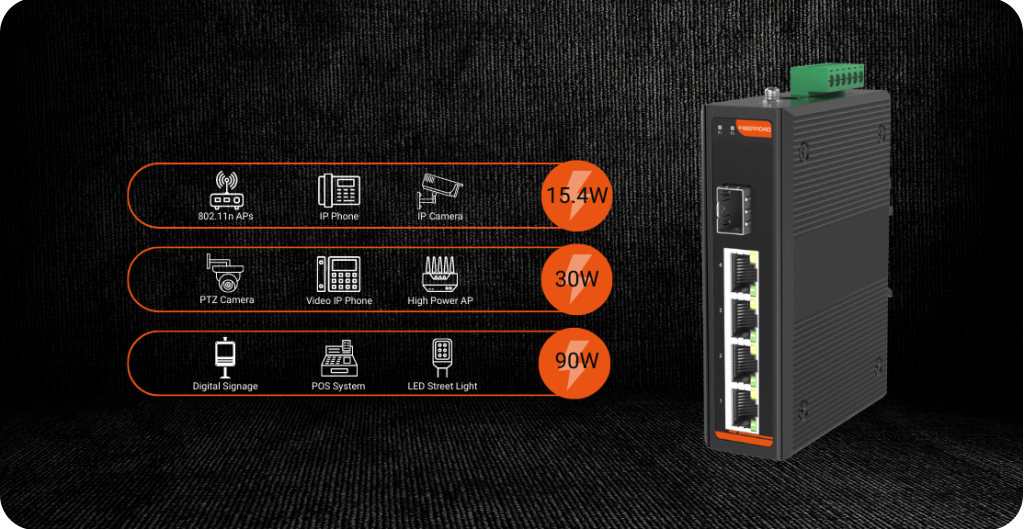

IP Surveillance System

An IP surveillance camera is now ubiquitous PoE supported with only one LAN cable, enabling fast deployment and easy repositioning for business, office, and residential environments.

Industrial Gigabit PoE Switch Application
Digital Signage

A digital signage can quickly transmit information in schools, hospitals, department stores, stations, airports, and subways, where content can be updated quickly to enhance users’ real-time information.

Industrial Gigabit PoE Switch Application
Other PoE Devices

Other PoE-enabled devices, such as POS systems, Information Kiosks, RFID readers, access controls, thin clients, alarms or sensors, are easy and cost-saving, even when they are away from

Ethernet Interface
Model FR-7N1104/FR-7N1104P/1104BT FR-7N3104/FR-7N3104P/3104BT
Ports 4×10/100Base-TX Port(RJ45)

1x100Base-X(SFP/1×9)

4×10/100/1000Base-TX Port(RJ45)

1x1000Base-X(SFP/1×9)

Port Mode(Tx) Auto Negotiation Speed

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

Standards IEEE 802.3 for Ethernet

IEEE 802.3u for Fast Ethernet

IEEE 802.3x for flow control and back pressure

IEEE802.3az for Energy Efficient Ethernet(EEE)

IEEE 802.3 for 10BaseT

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x for flow control and back pressure

IEEE802.3az for Energy Efficient Ethernet(EEE)

Packet Buffer Size 512K 1M
Maximum Packet Length 9K 10K
MAC Address Table 4K 4K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property Delay time: < 7μs

Backplane bandwidth: 1.25G

Delay time: < 7μs

Backplane bandwidth: 12G

Physical Characteristics
Housing Aluminium case
IP Rating IP40
ESD Protection 6kV
EFT Protection 6kV
Dimensions 120mm x 90mm x35mm (L x W x H)

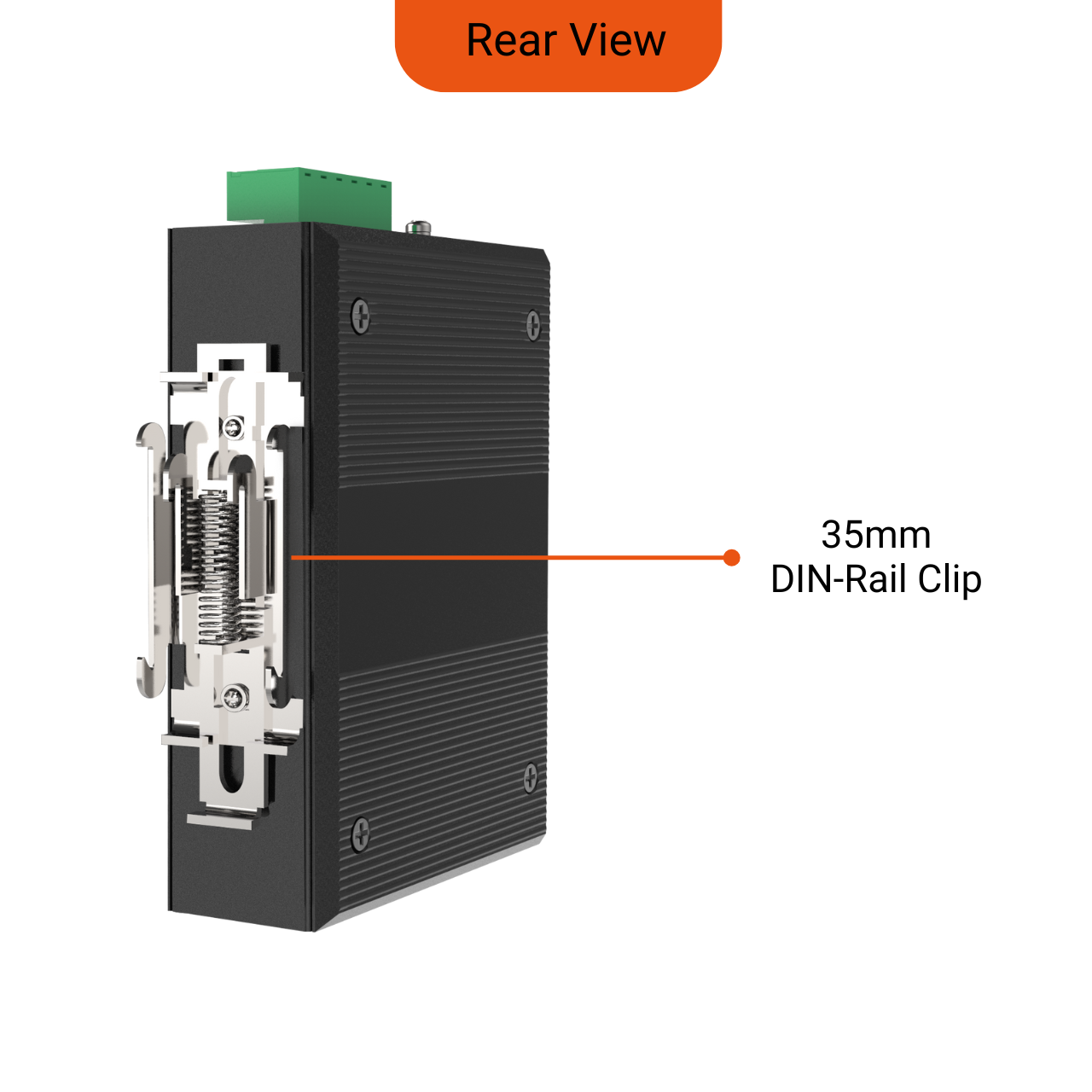

Installation Mode DIN Rail/Wall Mount
Weight 400g(without PoE)
Working Environment
Operating Temperature -40℃~75℃ (-40 to 167 ℉)
Operating Humidity 5%~95% (non-condensing)
Storage Temperature -40℃~85℃ (-40 to 185 ℉)
Heat Dissipation 10 BTU/h (Non-PoE)

420 BTU/h (30W PoE)

1260 BTU/h (90W PoE)

Cooling Passive Cooling
Noise Level 0 dBA
PoE & Power Supply
Model FR-7N1104P/3104P FR-7N1104BT/3104BT
PoE Ports Port 1 to 4 IEEE802.3af/at @PoE+ Port 1 to 4 IEEE802.3af/at/bt @PoE++
Power Supply Pin Default: 1/2(+), 3/6(-) Default: 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Max Power Per Port 30W 90W
Total PWR /Input Voltage 120W(DC48-56V) (Model dependent) 360W(DC52-56V) (Model dependent)
Power Consumption 3 Watts Max(without PoE load)
Power Inputs 2
Input Voltage 9-56VDC,Redundant dual inputs
Operating Voltage Non-PoE Mode: 9-56VDC

30W PoE Mode: 48-56VDC

90W PoE Mode: 52-56VDC(IEEE802.3bt model)

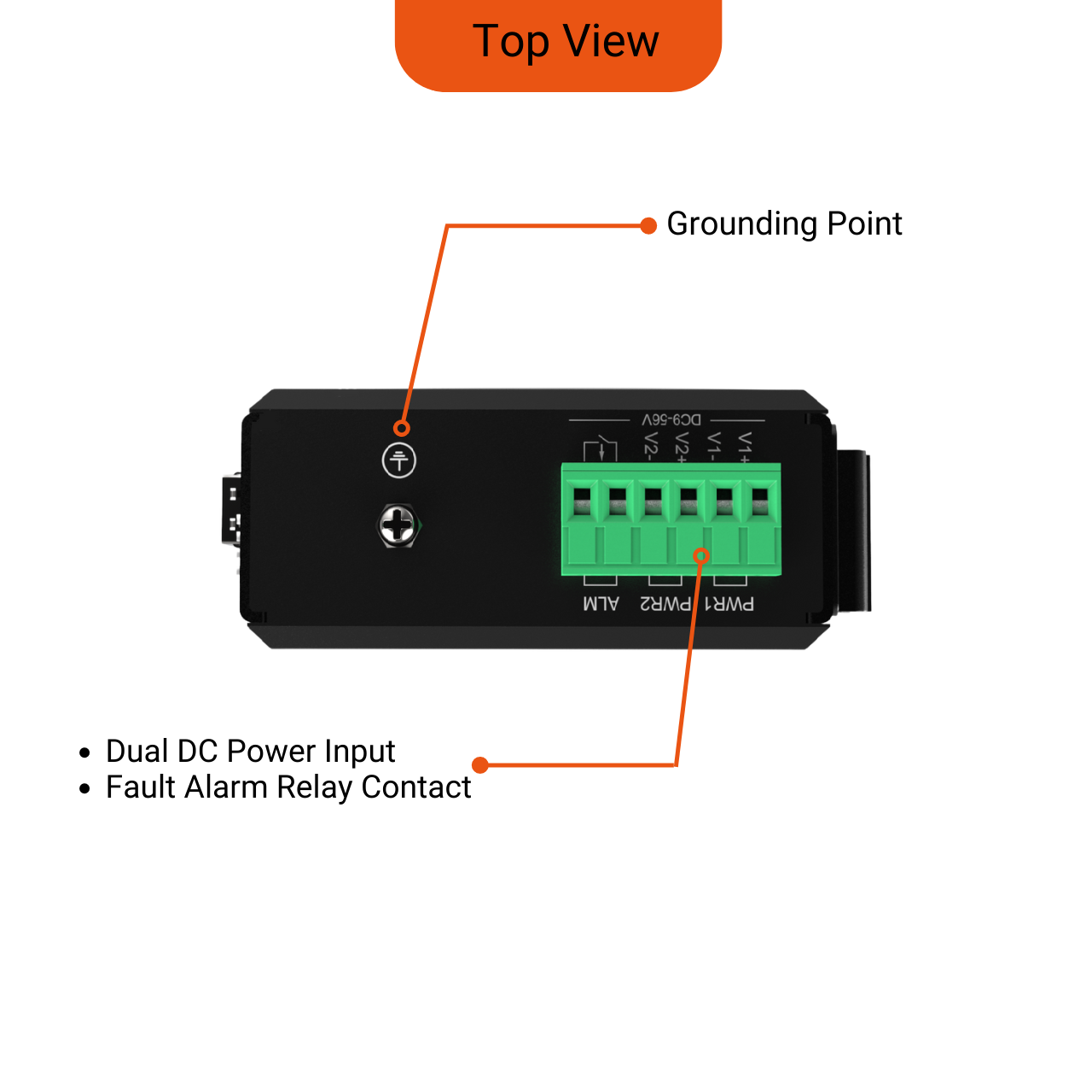

Connector 1 removable 6-contact terminal blocks

Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Protection Overload Current Protection, Reverse Polarity Protection
