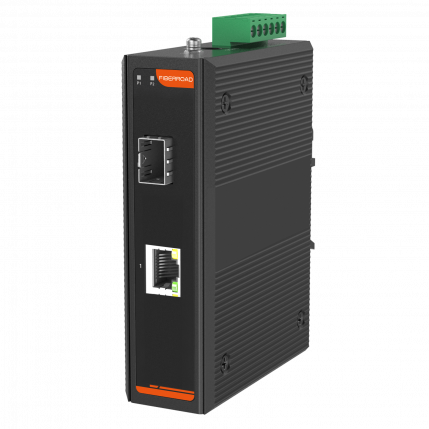

Industrial Gigabit Ethernet Media Converter
The industrial media converters are designed with a compact housing, providing a secure way to connect Ethernet networks over long distances using all types of fiber through the integrated optical fiber port(s). Regarding specification, Fibre connectivity is determined by a separate SFP/1×9 device selection, allowing application and site flexibility. The models are available in both non-PoE and PoE versions and can power the latest high-powered PoE devices over a wide industrial operating temperature range. The media converter has dual redundant power inputs, and an alarm relay guarantees maximum operational reliability.
Quality Certifications
Guarantee
Share This Product:
High Industrial Standard Fiber Media Converter
To protect the Industrial Ethernet Media Converter from the harsh environment, the enclosure plays the core role in fitting the industrial grade standard. Aluminium, also a widely used metal material, has several advantages over steel as compared to iron.

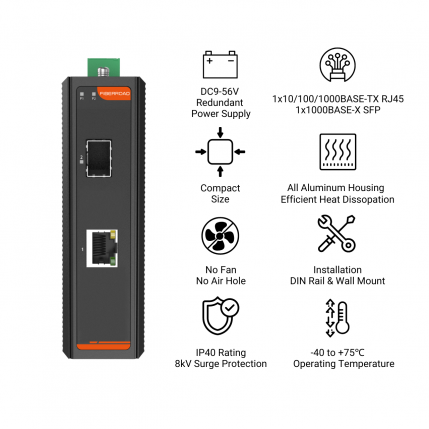

| Product Specifications | |||
|---|---|---|---|
| Ports | 1×10/100/1000Base TX RJ45 1x1000Base-X SFP/1×9 |
Port Mode(Tx) | Auto Negotiation Full/Half Duplex Auto MDI/MDIX |
| Frame Size | 10K | Transmission Mode | Store and Forward |
| Input Power | 9-56V DC | Power Consumption | 3W MAX |
| Housing | Aluminium Case | IP Rating | IP40 |
| Operating Temperature | -40℃ to +75℃ | Dimensions | 120x90x35mm |
| Installation Mode | DIN Rail and Wall Mount | Weight | 350g |
Make sure the Industrial Fiber Media Converter is Rugged in Harsh Environments
There is no need to worry about reliability or maintenance issues with the Industrial Ethernet Media Converter . Features include a fanless design and low power consumption. The Industrial Fiber Media Converter can operate at low and high temperatures thanks to mature technology and open network standards. It is also resistant to electric interference, salt fog, vibration, and shocks. Also, it integrates redundant dual power supplies, which provides additional reliability for applications that require always-on connections.
Fibre-optic Link Capacity Allows Network Deployment to Extend
Video surveillance administrators can select a suitable SFP transceiver based on the transmission distance and speed requirements. Distances can be extended from 550 meters to 2 kilometres (multi-mode fibre) and up to 10/20/40/60/80/120 kilometres (single-mode fibre or WDM fibre). Applications within enterprise data centres and distributed systems are particularly suitable.
Plug and Play Meets a Variety of Application Needs
