10 Port Unmanaged Industrial Network Switch

The Unmanaged Industrial Network Switch is designed for small and medium industrial network applications. It provides an easy way to access Gigabit Ethernet. This switch’s robust design makes it ideal for deployment in industrial and outdoor surveillance settings. It can optionally support DIN-Rail mounting or Wall mounting. LEDs provide visual monitoring of Ethernet-connected devices via twisted-pair RJ45 ports. The models are available in both non-PoE and PoE versions and can power the latest high-powered PoE devices over a wide industrial operating temperature range.



Video Gallery

Quality Certifications
Guarantee
Share This Product

High Industrial Standard Gigabit Ethernet Switch with SFP Ports

Product Specifications
Ports 8×10/100/1000Base TX RJ45
2×100/1000Base-X SFP
Port Mode(Tx) Auto Negotiation
Full/Half Duplex
Auto MDI/MDIX
Frame Size 9K Transmission Mode Store and Forward
Input Power 9-56VDC Power Connector 1 Removable 6-contact Terminal Block
Housing Aluminium Case IP Rating IP40
Operating Temperature -40℃ to +75℃ Dimensions 138x108x49mm
Installation Mode DIN Rail and Wall Mount Weight 680g

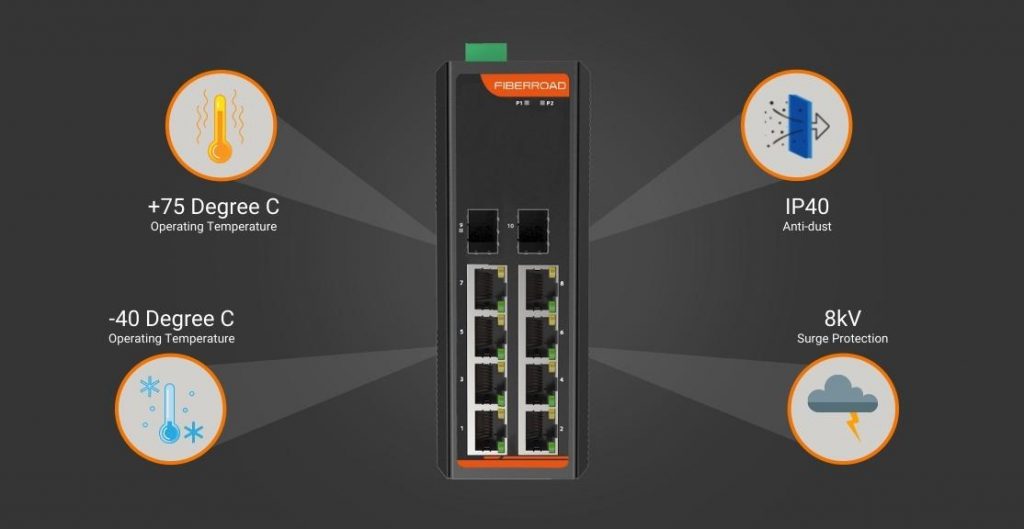

Ensure Industrial Network Switch Operates In Harsh Environments

The Unmanaged Industrial Network switch is designed for reliability and ease of maintenance. It features such as a fanless design and low power consumption. The Industrial Network Switch can operate at low and high temperatures thanks to mature technology. It is also resistant to electric interference, salt fog, vibration, and shocks. The system also features redundant dual power supplies, allowing for additional reliability for applications that require always-on connections.

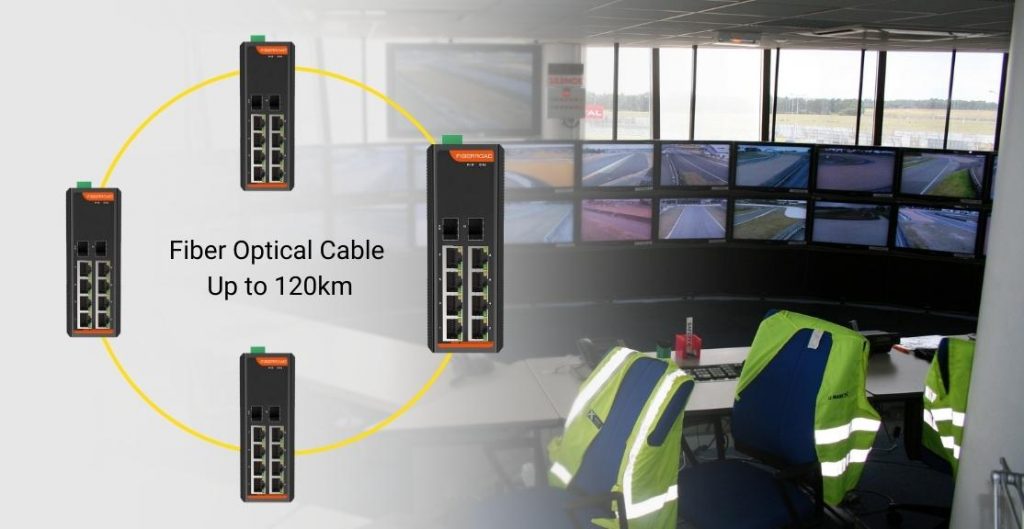

Provides an Extension of Network Deployment Capacity

Video surveillance administrators can select a suitable SFP transceiver based on the transmission distance and speed requirements. Distances can be extended from 550 meters to 2 kilometres (multi-mode fibre) and up to 10/20/40/60/80/120 kilometres (single-mode fibre or WDM fibre). Applications within enterprise data centres and distributed systems are particularly suitable.

Plug and Play Meets a Variety of Application Needs

 Unmanaged Industrial Network Switch

City Surveillance System

Unmanaged Industrial Switch

Smart Bus Stop

Unmanaged Industrial Switch

Intelligent Access Control

Ethernet Interface
Model FR-7N3208 FR-7N3208P/3208BT
Ports

8×10/100/1000Base-TX Port(RJ45)

2x1000Base-X(SFP/1×9)

Port Mode(Tx)

Auto-Negotiation

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

Standards

IEEE 802.3 for 10BaseT

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x for flow control and back pressure

IEEE802.3az for Energy Efficient Ethernet(EEE)

Packet Buffer Size 2M
Maximum Packet Length 9K
MAC Address Table 4K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property

Delay time: < 7μs

Backplane bandwidth: 20G

Physical Characteristics
Housing Aluminium case
IP Rating IP40
Dimensions 138mm x 108mm x 49mm (L x W x H)
Installation DIN Rail/Wall Mount
Weight 680g
Environmental
Operating Temperature -40℃~75℃ (-40 to 167 ℉)
Operating Humidity 5%~95% (non-condensing)
Storage Temperature -40℃~85℃ (-40 to 185 ℉)
MTBF 907,476 hours @ Telcordia SR-332 Standard
Heat Dissipation 34 BTU/h (non-PoE mode)

853 BTU/h (with 240W PoE load)

Cooling Passive Cooling, Fanless Design
Noise Level 0 dBA
