8xGigabit SFP+16xGigabit RJ45 Managed Industrial PoE Switch
L2+ Managed Industrial PoE Switch is a multi-port, high-standard Industrial Managed Ethernet Switch independently developed by Fiberroad for industrial ethernet networks. This product adopts industry-leading technical standards and can provide stable and reliable Ethernet transmission with high-quality design and reliability. They are designed in rack mount aluminium housing and have 24 Ethernet ports (depending on the model). An additional 4 Gigabit Combo(SFP/RJ45) provides data uplink and backbone connectivity. As a result, it can supply power to PD terminal equipment like wireless AP, webcam, VoIP, and visual intelligent building intercom through network cable and meet the infrastructure requirements of a high-density PoE/PoE+ supply.

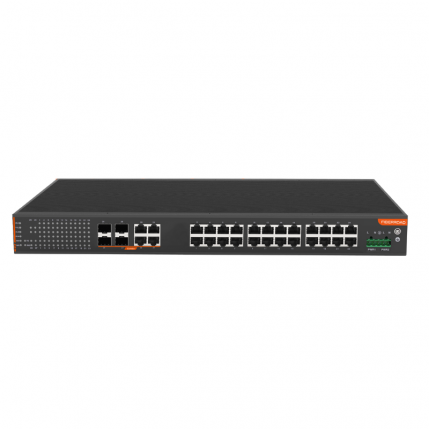

24-Port Managed Industrial PoE Network Switch, with 4xGigabit Combo Port
Fiberroad FR-9M3424P is a 28-port Industrial Managed PoE Network Switch designed for the industrial network. The rugged enclosure provides IPv6/IPv4 management protocols, Layer 2 switching functions, and Layer 3 static routing capabilities. Industrial PoE Network switches can operate stably under temperatures from -40 degrees C to 75 degrees C.
Smart PoE Features
- Support IEEE802.3af/at standard automatically identifies PoE devices for power supply without damaging non-PoE devices.
- Support up to 30W per port.
- The priority mechanism for the PoE+ Switch port will supply power to the high-priority level port when the power budget is insufficient.
- PoE output power allocation, Scheduling of PoE operation.
Advance Layer2+ Features
- Build a redundant PoE network with STP/RSTRP/MSTP/ERPSv2.
- IPv4/IPv6 Management and Static Route
- ACL Based on MAC, IP address.
- Priority retagging and complicated flow classification based on VLAN, MAC/IP.
- Flexible bandwidth control policies.
High-Performance Network Management
- Web-based CloudMQTT to monitor the Industrial Network anytime, anywhere.
- Command-line interface(CLI) and Firo WebGUI management for configuring primary managed functions.
- SNMPv1/v2C/v3 for different levels of network management.
Complete Security Mechanisms
- AAA&RADIUS, IEEE 802.1X, SNMPv3, HTTPs/SSLv3,SSH2.0 to enhance network security.
- Support user hierarchical management, ACL control list
- DDOS, port-based MAC filtering/binding, MAC black holes, IP source protection, ARP message speed limit

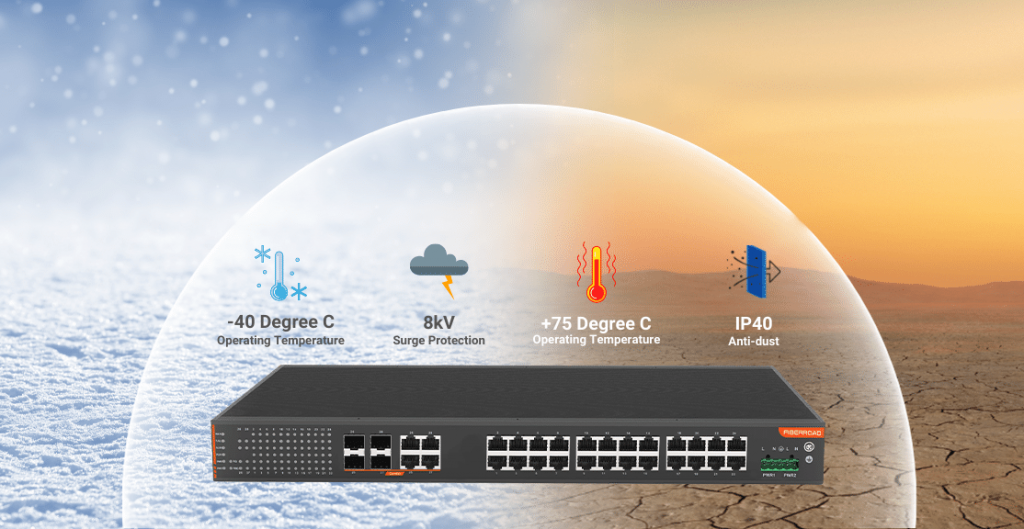

In a Harsh Environment, High Industrial Standards are Necessary
With IP40 Durable Aluminum housing and fanless design also provide efficient heat dissipation. 28-por Industrial Managed PoE Network Switch provides a high level of immunity against electromagnetic interference and heavy electrical surges, usually found on plant floors or curb-side traffic control cabinets. It also possesses an integrated power supply source with a wide range of voltages (9 to 56V DC) for worldwide high availability applications requiring dual or backup power inputs. Indeed, The design of the switch ensures operates in Harsh Environment.

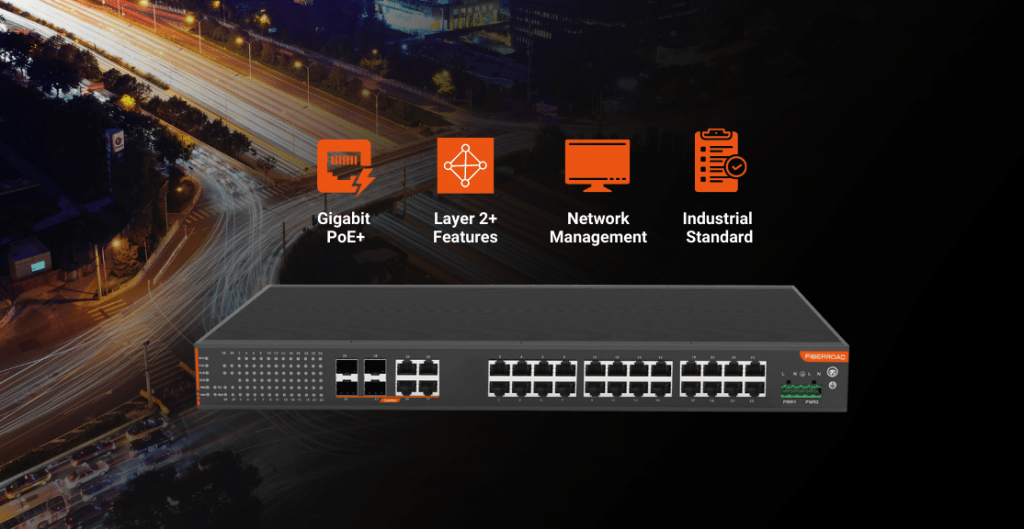

28 Port Industrial PoE Network Switch with Advance L2+ Features
With a 4xGigabit Combo Port (SFP/RJ45), the 28-Port Industrial Managed PoE Network Switch can handle extremely large amounts of data in a secure topology linking to an industrial backbone or high-capacity servers. The FR-9M3424P is capable of providing non-blocking switch fabric and wire-speed throughput.
The 28-port Industrial Managed PoE Ethernet Switch series allows the administrator to conveniently boost network efficiency by manually configuring Layer 3 IPv4/IPv6 VLAN static routing. FR-9M3424P supports redundant ring technology and features a strong, rapid self-recovery capability to prevent interruptions and external intrusions. In addition to using advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching), Spanning Tree Protocol, and redundant power input systems, it enhances system reliability and uptime in harsh factory environments.
Industrial PoE Network Switch Compliant with IEEE802.3af/at PoE+ Standards
Port 1-24 complies with IEEE802.3af/at standard. Another critical point is it can automatically detect and recognise the power devices that meet the standard and supply power through the network cable. Being the PoE management for CCTV surveillance, wireless and VoIP Networks FR-9M3424P features the following special PoE management functions: PoE PD-alive check, Schedule power rebooting, PoE operation schedule, PoE usage monitoring, PoE port power feeding priority…
Take care of the 28 Port Managed Industrial Switch Anytime and Anywhere
28-port Industrial Managed PoE Network Switch allows various network management methods, such as the Cloud(MQTT), WebGUI, CLI and NMS. The notion of easy to use, particularly with no additional hardware investment and installation. Industrial Network Switch can deploy centralised management, Layer 2 to Layer 4 QoS, Bandwidth allocation, real-time monitoring, etc.
Both SSH2.0 and HTTPS/TLS protocols are utilized to provide robust protection against network threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, ARP Inspection Protection, 802.1x port-based and MAC-based network access control, user hierarchical management, SNMPv3 authentication, and so on to complement it as an all-security solution. The 28-Port Managed Industrial PoE Network Switch administrator can now construct highly-secure corporate networks with considerably less time and effort than before.
Full/Half Duplex Mode
Auto MDI/MDI-X Connection
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP
|Packet Buffer Size||4Mbits|
|Maximum Packet Length||Up to 10K|
|MAC Address Table||8K|
|Transmission Mode||Store and Forward (full/half duplex mode)|
Delay time: < 7μs
Backplane bandwidth: 56Gbps
|Max. No. of VLAN||256|
|VLAN ID Range||VID 1 to 4094|
|Operating Temperature||-40℃~75℃ (-40 to 167 ℉)|
|Operating Humidity||5%~90% (non-condensing)|
|Storage Temperature||-40℃~85℃ (-40 to 185 ℉)|
|Heat Dissipation||75 BTU/h|
|Cooling||Passive Cooling, Fanless Design|
|Noise Level||0 dBA|
|Ethernet Software Features|
|Redundancy Protocols||Support STP/RSTP/MSTP/ERPSv2, Link Aggregation|
|Multicast Support||Support IGMP Snooping V1/V2/V3, support GMRP, GVMP,802.1Q|
|VLAN||Support IEEE 802.1Q 4K VLAN, support QINQ, Double VLAN,|
Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)
Port-based Issuing ACL
ACL based on port and VLAN
L2 to L4 packet filtering, matching the first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, VLAN, etc
Total power limit of PoE power supply
PoE output power allocation
PoE output priority configuration
PoE working status
Scheduling of PoE operation
|Diagnostic Maintenance||Support port mirroring, Syslog, Ping|
|Management Function||Support CLI、WEB、SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT|
|Alarm Management||Support 1-way relay alarm output, RMON, TRAP|
Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0
Support DHCP Snooping, Option 82，802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS，port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
|Advance Layer 2+ Features||
|PoE & Power Supply|
|PoE Ports||Port 1-24||Port 9-24||Port 17-24||Port 1-24||Port 9-24||Port 17-24|
|Power Supply Pin||Default: 1/2(+), 3/6(-)||Default: 1/2(+), 3/6(-) ,4/5(+), 7/8(-)|
|Max Power Per Port||IEEE802.3 af/at 30W||IEEE802.3 af/at/bt 90W|
Total PWR /
|480W(DC48-56V) (Model dependent)||720W(DC48-56V) (Model dependent)|
|Power Consumption||24 Watts Max(without PoE load)|
|Input Voltage||9-56VDC,Redundant dual inputs|
Non-PoE Mode: 9-56VDC
30W PoE Mode: 48-56VDC
90W PoE Mode: 52-56VDC(IEEE802.3bt model)
1 removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm
|Protection||Overload Current Protection, Reverse Polarity Protection|
