4xGigabit SFP+24xGigabit RJ45 Managed Industrial PoE Switch

L2+ Managed Industrial PoE Switch is a multi-port, high-standard Industrial Managed Ethernet Switch independently developed by Fiberroad for industrial ethernet networks. This product adopts industry-leading technical standards and can provide stable and reliable Ethernet transmission with high-quality design and reliability. They are designed in rack mount aluminium housing and have 24 Ethernet ports (depending on the model). An additional 4 Gigabit Combo(SFP/RJ45) provides data uplink and backbone connectivity. As a result, it can supply power to PD terminal equipment like wireless AP, webcam, VoIP, and visual intelligent building intercom through network cable and meet the infrastructure requirements of a high-density PoE/PoE+ supply.



  • Supports up to 4×Uplink Combo Gigabit+ 24×10/100/1000M Base-TX
  • Cache up to 4M for smooth transfer of 4K video
  • Support large backplane bandwidth, large swap cache, ensure line-speed forwarding for all ports
  • Support ERPS ring network protocol of ITU G.8032 standard, self-healing time less than 20ms
  • Redundant dual power DC/AC power supply are optional, anti-reverse connection, overcurrent protection
  • -40 ° C ~ 75 ° C wide temperature design to ensure that the equipment adapts to a variety of harsh on-site environments
  • IP40 grade protection, high strength metal case, fanless, low power design

Video Gallery

Quality Certifications
Share This Product

24-Port Managed Industrial PoE Network Switch, with 4xGigabit Combo Port

Fiberroad FR-9M3424P is a 28-port Industrial Managed PoE Network Switch designed for the industrial network. The rugged enclosure provides IPv6/IPv4 management protocols, Layer 2 switching functions, and Layer 3 static routing capabilities. Industrial PoE Network switches can operate stably under temperatures from -40 degrees C to 75 degrees C.


1. Support IEEE802.3af/at/bt standard automatically identifies PoE devices for power supply without damaging non-PoE devices.
2. Support up to 30W per port.
3. Priority mechanism for PoE+ Switch port will supply power to the high priority level port first when the power budget is insufficient.
4. PoE output power allocation, Scheduling of PoE operation.


1. Build up a redundant PoE network with STP/RSTRP/MSTP/ERPSv2.
2. IPv4/IPv6 Management and Static Route
3. ACL Based on MAC, IP address.
4. Priority retagging and complicated flow classification based on VLAN, MAC/IP.
5. Flexible bandwidth control policies.


1. Web-based CloudMQTT standard to monitor the PoE Network anytime, anywhere.
2. Command-line interface(CLI) and Firo WebGUI management for quickly configuring major managed functions.
3. SNMPv1/v2C/v3 for different levels of network management.


1. AAA&RADIUS, IEEE 802.1X, SNMPv3, HTTPs/SSLv3,SSH2.0 to enhance network security
2. Support user hierarchical management, ACL control list
3. Support DDOS, port-based MAC filtering/binding, MAC black holes, IP source protection, ARP message speed limit

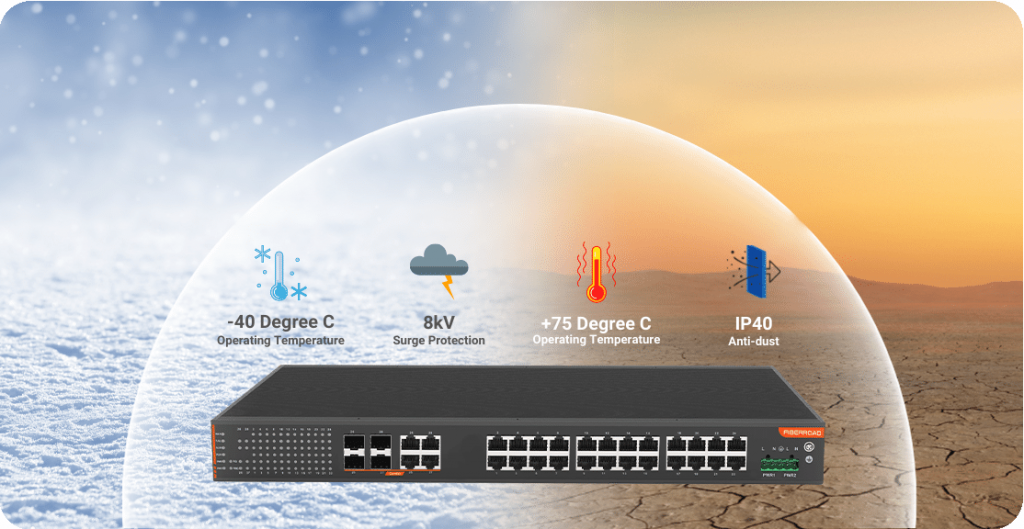

In a Harsh Environment, High Industrial Standards are Necessary

With IP40 Durable Aluminum housing and fanless design also provide efficient heat dissipation. 28-por Industrial Managed PoE Network Switch provides a high level of immunity against electromagnetic interference and heavy electrical surges, usually found on plant floors or curb-side traffic control cabinets. It also possesses an integrated power supply source with a wide range of voltages (9 to 56V DC) for worldwide high availability applications requiring dual or backup power inputs. Indeed, The design of the switch ensures operates in Harsh Environment.

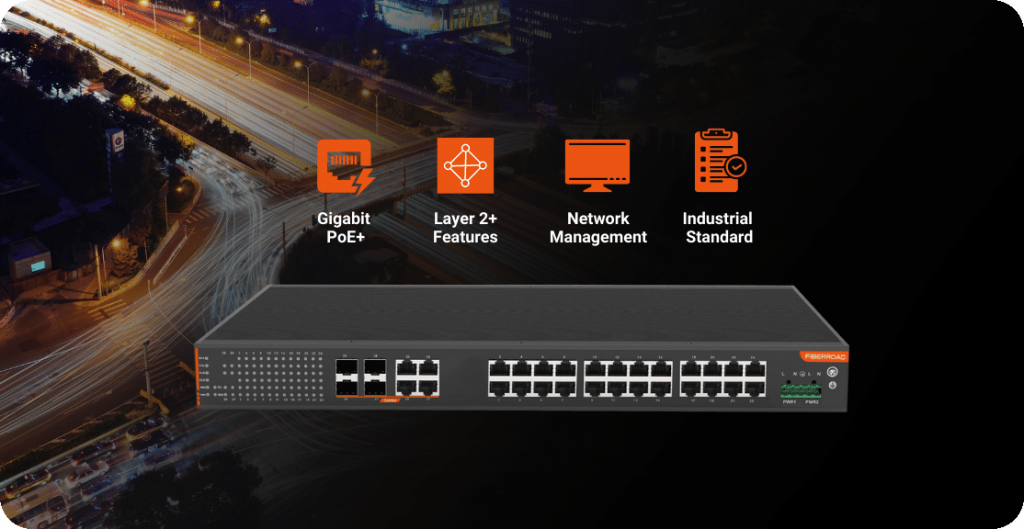

28 Port Industrial PoE Network Switch with Advance L2+ Features

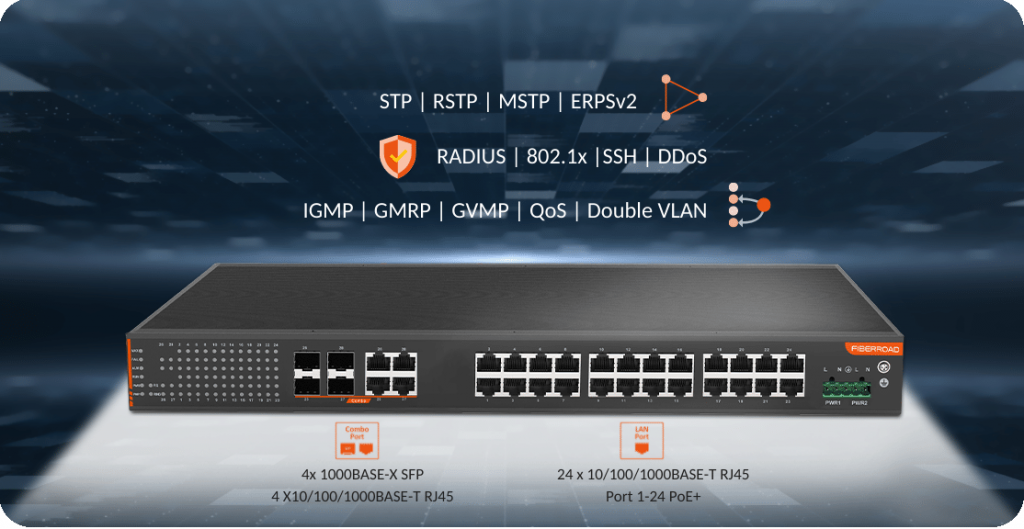

With a 4xGigabit Combo Port (SFP/RJ45), the 28-Port Industrial Managed PoE Network Switch can handle extremely large amounts of data in a secure topology linking to an industrial backbone or high-capacity servers. The FR-9M3424P is capable of providing non-blocking switch fabric and wire-speed throughput.

The 28-port Industrial Managed PoE Ethernet Switch series allows the administrator to conveniently boost network efficiency by manually configuring Layer 3 IPv4/IPv6 VLAN static routing. FR-9M3424P supports redundant ring technology and features a strong, rapid self-recovery capability to prevent interruptions and external intrusions. In addition to using advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching), Spanning Tree Protocol, and redundant power input systems, it enhances system reliability and uptime in harsh factory environments.

Industrial PoE Network Switch Compliant with IEEE802.3af/at PoE+ Standards

Port 1-24 complies with IEEE802.3af/at standard. Another critical point is it can automatically detect and recognise the power devices that meet the standard and supply power through the network cable. Being the PoE management for CCTV surveillance, wireless and VoIP Networks FR-9M3424P features the following special PoE management functions: PoE PD-alive check, Schedule power rebooting, PoE operation schedule, PoE usage monitoring, PoE port power feeding priority…

Take care of the 28 Port Managed Industrial Switch Anytime and Anywhere

28-port Industrial Managed PoE Network Switch allows various network management methods, such as the Cloud(MQTT), WebGUI, CLI and NMS. The notion of easy to use, particularly with no additional hardware investment and installation. Industrial Network Switch can deploy centralised management, Layer 2 to Layer 4 QoS, Bandwidth allocation, real-time monitoring, etc.

Both SSH2.0 and HTTPS/TLS protocols are utilized to provide robust protection against network threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, ARP Inspection Protection, 802.1x port-based and MAC-based network access control, user hierarchical management, SNMPv3 authentication, and so on to complement it as an all-security solution. The 28-Port Managed Industrial PoE Network Switch administrator can now construct highly-secure corporate networks with considerably less time and effort than before.

Ethernet Interface
Model FR-9M34F8P FR-9M348FP FR-9M3424P
Ports 8×10/100/1000Base-TX

16×1000Base-X SFP

4xGigabit Combo(SFP/RJ45)


8×1000Base-X SFP

4xGigabit Combo(SFP/RJ45)

24×10/100/1000M Base-TX

4xGigabit Combo(SFP/RJ45)

Port Mode(Tx)


Full/Half Duplex Mode

Auto MDI/MDI-X Connection


IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IEEE 802.3x for flow control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1p for Class of Service

IEEE 802.1Q for VLAN Tagging

IEEE 802.1X for authentication

IEEE 802.3ad for Port Trunk with LACP

Packet Buffer Size 4Mbits
Maximum Packet Length Up to 10K
MAC Address Table 8K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property

Delay time: < 7μs

Backplane bandwidth: 56Gbps

IGMP Group 4096
Max. No. of VLAN 256
VLAN ID Range VID 1 to 4094
Physical Characteristics
Housing Aluminium case
IP Rating IP40
Dimensions 400mmx300mmx45mm
Installation Rack Mount
Weight 2600g
Operating Temperature -40℃~75℃ (-40 to 167 ℉)
Operating Humidity 5%~90% (non-condensing)
Storage Temperature -40℃~85℃ (-40 to 185 ℉)
MTBF >250,000@Telcordia(Bellcore)GB
Heat Dissipation 75 BTU/h
Cooling Passive Cooling, Fanless Design
Noise Level 0 dBA
Ethernet Software Features
Redundancy Protocols Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
Multicast Support Support IGMP Snooping V1/V2/V3, support GMRP, GVMP,802.1Q
VLAN Support IEEE 802.1Q 4K VLAN, support QINQ, Double VLAN,
Time Management SNTP

Flow-based redirection

Flow-based rate limiting

Flow-based packet filtering

8*Output queues of each port 802.1p/DSCP priority mapping

Diff-Serv QoS, Priority Mark/Remark

Queue Scheduling Algorithm (SP, WRR, SP+WRR)


Port-based Issuing ACL

ACL based on port and VLAN

L2 to L4 packet filtering, matching the first 80 bytes message.

Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, VLAN, etc

POE Management

Total power limit of PoE power supply

PoE output power allocation

PoE output priority configuration

PoE working status

Scheduling of PoE operation

Diagnostic Maintenance Support port mirroring, Syslog, Ping
Management Function Support CLI、WEB、SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT
Alarm Management Support 1-way relay alarm output, RMON, TRAP

Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0

Support DHCP Snooping, Option 82,802.1X security access,

Support hierarchical user management, ACL access control list,

Support DDOS,port-based MAC filtering/binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit

Advance Layer 2+ Features

IPv4/IPv6 Management

Static Route

PoE & Power Supply
Model FR-9M3424P FR-9M348FP FR-9M34F8P FR-7M3424BT FR-9M348FBT FR-9M34F8BT
PoE Ports Port 1-24 Port 9-24 Port 17-24 Port 1-24 Port 9-24 Port 17-24
Power Supply Pin Default: 1/2(+), 3/6(-) Default: 1/2(+), 3/6(-) ,4/5(+), 7/8(-)
Max Power Per Port IEEE802.3 af/at 30W IEEE802.3 af/at/bt 90W

Total PWR /

Input Voltage

480W(DC48-56V) (Model dependent) 720W(DC48-56V) (Model dependent)
Power Consumption 24 Watts Max(without PoE load)
Power Inputs 2
Input Voltage 9-56VDC, Redundant dual inputs
Operating Voltage

Non-PoE Mode: 9-56VDC

30W PoE Mode: 48-56VDC

90W PoE Mode: 52-56VDC(IEEE802.3bt model)


1 removable 6-contact terminal blocks

Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Protection Overload Current Protection, Reverse Polarity Protection
