High-Capacity Industrial Ethernet Switch for Demanding Networks

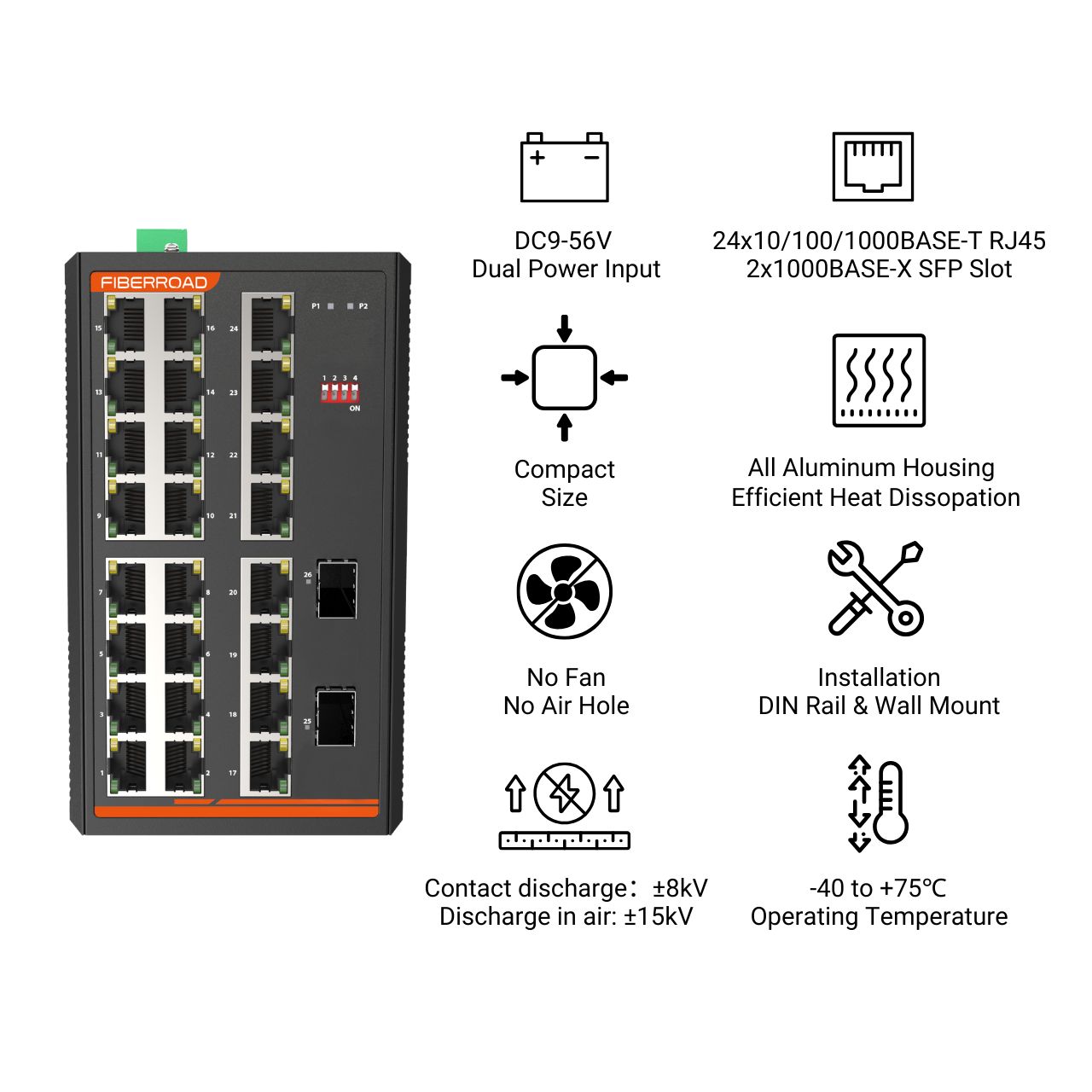

The 24-Port 10/100/1000T + 2-Port 1000X SFP Industrial Ethernet Switch delivers 26-port Gigabit connectivity with a powerful 52Gbps switching bandwidth, ensuring seamless data transmission for industrial applications. Featuring a non-blocking switching architecture, it forwards and filters packets at full wire-speed, eliminating bottlenecks and maximizing throughput for high-performance networks. With 24 copper ports for local device connections and 2 SFP fiber slots for long-distance uplinks, this rugged switch is built for harsh environments—supporting wide-temperature operation, surge protection, and reliable fiber-optic expansion. Ideal for automation, transportation, and energy systems, it provides scalable, high-speed networking with zero compromise on reliability.
Compact Yet Rugged Industrial Switch for Extreme Environments
The 24-Port 10/100/1000T + 2-Port 1000X SFP Industrial Ethernet Switch is engineered to thrive in harsh conditions, with an operating temperature range of -40°C to +75°C (-40 to 167°F) and humidity tolerance of 5% to 95% (non-condensing). Designed for reliability, it features strong ESD and electrical surge protection, safeguarding your network against power fluctuations and environmental interference. With 24 Gigabit copper ports for local connectivity and 2 SFP fiber slots for high-speed, long-distance uplinks, this compact switch delivers flexible, high-performance networking in space-constrained industrial settings. Ideal for factory automation, outdoor surveillance, and transportation systems, it ensures uninterrupted operation in the most demanding applications.
Plug and Play Meets a Variety of Application Needs
The 24-Port 10/100/1000T + 2-Port 1000X SFP Industrial Ethernet Switch offers effortless plug-and-play deployment, making it ideal for a wide range of demanding applications. Whether enabling seamless connectivity at Smart Highway Tollgates, ensuring reliable data transfer in Smart Container Terminals, or supporting robust communication networks for Smart Energy systems, this switch delivers high-performance networking without complex configuration. Its rugged industrial design, combined with flexible copper and fiber connectivity, ensures instant, stable, and secure operation in mission-critical environments—helping to streamline operations and enhance efficiency across intelligent infrastructure projects.
Smart Highway Tollgate
Smart Container Terminal
Smart Energy
| Hardware Specifications | |||
| Product | FR-7N3224 | FR-7N3224P | FR-7N3224BT |
| Copper Ports | 24×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (Port 1-24) | ||
| Fiber Ports | 2x1000BASE-X SFP Slot (Port 25 -26) | ||
| Enclosure | IP40 aluminum case | ||
| Installation | DIN-Rail and Wall-mount | ||
| Dimension | 155x128x88mm | ||
| Weight | 1500g(Bare weight), 1800g(With package) | ||
| Surge Protection | ±6kV DC, ±4kV RJ45 | ±6kV DC, ±6kV RJ45 | |
| Switching | |||
| Switch Architecture | Store-and-Forward | ||
| Switch Fabric | 52Gbps/non-blocking | ||
| Forwarding Rate | 38.69 Mpps(64-byte packet size) | ||
| Packet Buffer Size | 4Mbits | ||
| MAX. Packet Length | 1500 bytes | ||
| MAC Address Table | 8K entries, automatic source address learning and aging | ||
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex | ||
| Power Supply and PoE | |||
| Power Input | 2 | ||

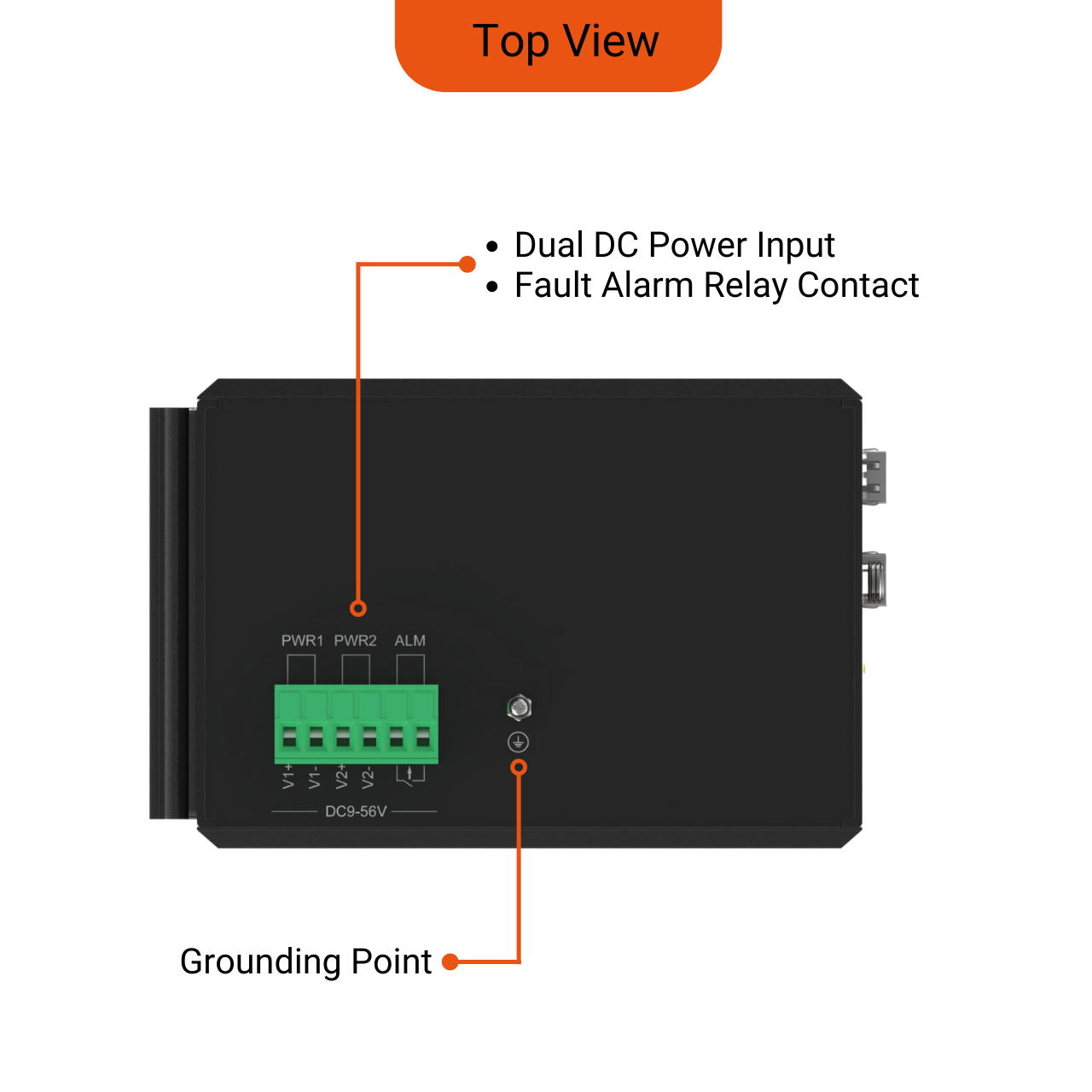

| Power Connector | 1 removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm(As required) |
||
| Operating Voltage | DC9-56V | DC48-56V | DC52-56V |
| Power Consumption | 12 Watts Max (without PoE load) | ||
| Protection | Reverse Polarity, Overload Current | ||
| PoE Ports | \ | Port 1 to 24 IEEE802.3 af/at | Port 1 to 24 IEEE802.3 af/at/bt |
| PoE Power Supply Type | \ | End-span | End-span |
| Power Supply Pin | \ | 1/2(+), 3/6(-) | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Max Power Per Port | \ | 30W | 90W |
| PoE Power Budget | \ | 240W
(Depending on power input) |
240W
(Depending on power input) |
| Environmental | |||
| Operating Temperature | -40℃ to +75℃ (-40 to 167 ℉) | ||
| Storage Temperature | -40℃ to +85℃ (-40 to 185 ℉) | ||
| Operating Humidity | 5%~95% (non-condensing) | ||
| Cooling | Passive Cooling | ||
| MTBF | ＞500,000 hours @Telcordia SR-332 GB 50°C | ||
| LED Indicators | |||
| P1 & P2 | ON: Power is being supplied ,OFF: Power is not being supplied | ||
| Fiber Port | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active | ||
| RJ45 Port Amber LEDs | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active | ||
| RJ45 Port Green LEDs | ON: Port is operating at 1000 Mb/s, OFF: Port is operating at 10/100 Mb/s | ||
