24 Port Unmanaged Industrial PoE Switch

The 26 Port Unmanaged Industrial Ethernet Switch is designed for industrial network applications. It provides an easy way to access Gigabit Ethernet. This switch’s robust design makes it ideal for deployment in industrial and outdoor surveillance settings. It can optionally support DIN-Rail mounting or Wall mounting. LEDs provide visual monitoring of Ethernet-connected devices via twisted-pair RJ45 ports. The models are available in both non-PoE and PoE versions and can power the latest high-powered PoE devices over a wide industrial operating temperature range.


Product Features

  • Support IEEE 802.3af/at/bt PoE Standard, without damaging not-PoE devices.
  • Support up to 24×10/100/1000Base-T RJ45 and 2×100/1000Base-X SFP
  • Full/Half-duplex self-adaptationvMDI/MDIX automatic recognition
  • Jumbo Frame up to 10K, 52G backplane bandwidth
  • Operating temperature -40 to 75℃
  • Wide-range DC9~56V power input
  • Support power input polarity protection; no worries about the reverse connection
  • All-Aluminium shell, fanless design
  • Free fall, shock-proof and vibration-proof for industries
  • All-aluminum Case, Compact and Fanless Design
  • Plug and play,no software configuration.

Video Gallery

Quality Certifications
Share This Product

Product Specifications
Ports 24x10/100/1000Base TX RJ45
2x100/1000Base-X SFP
Port Mode(Tx) Auto Negotiation
Full/Half Duplex
Frame Size 10K Transmission Mode Store and Forward
PoE Ports Port 1-24 Max Power Per Port 30W
Input Power 9-56VDC Power Connector 1 Removable 6-contact Terminal Block
Housing Aluminium Case IP Rating IP40
Operating Temperature -40℃ to +75℃ Dimensions 155mmx128mmx88mm

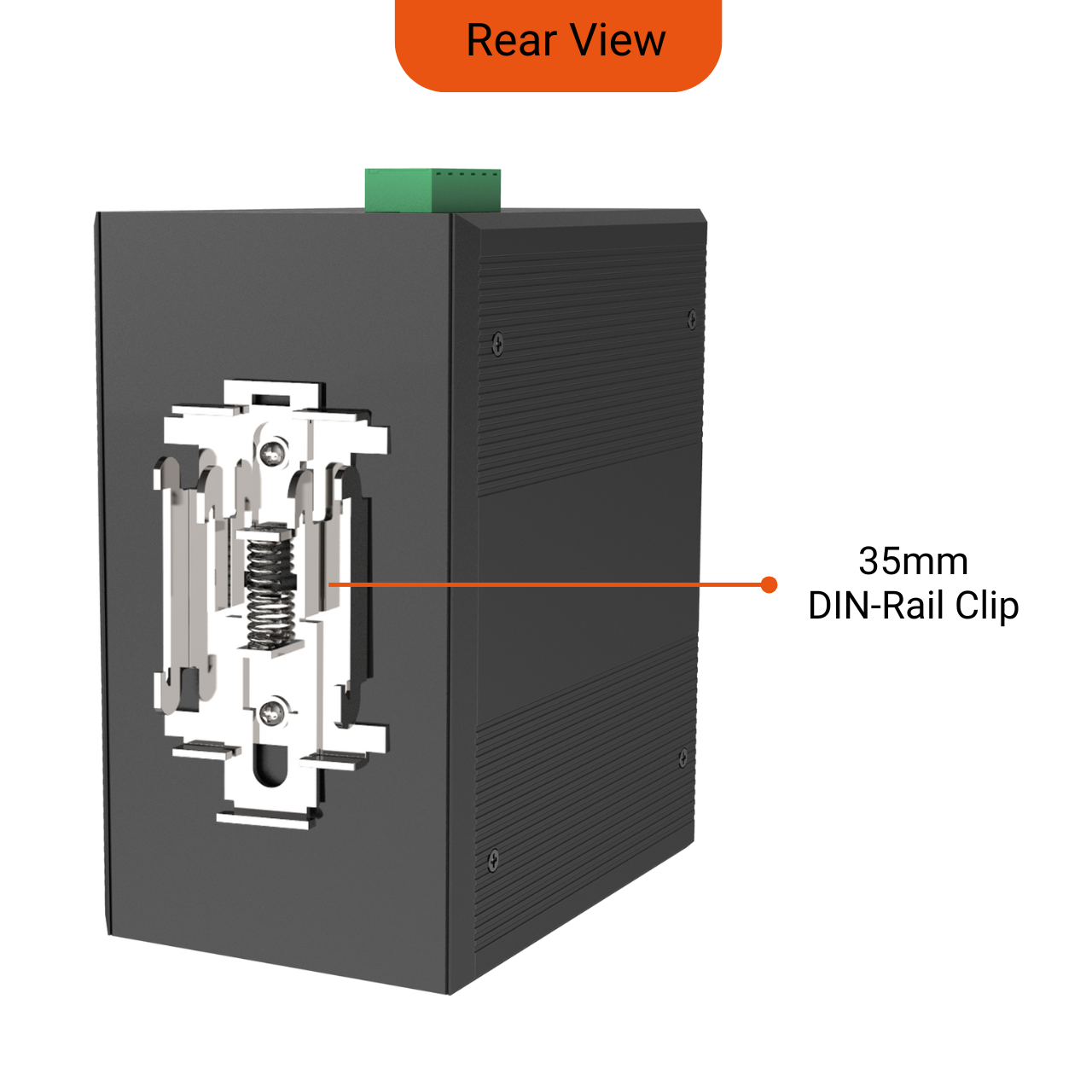

Installation Mode DIN Rail and Wall Mount Weight 1.35kg

Make Sure Industrial PoE Switches Operate in Harsh Environments

The 24 Port Unmanaged Industrial PoE Switch is designed for reliability and ease of maintenance. It features such as a fanless design and low power consumption. 24 Port Unmanaged Industrial PoE Switch can operate at low and high temperatures thanks to mature technology. It is also resistant to electric interference, salt fog, vibration, and shocks. The system also features redundant dual power supplies, allowing for additional reliability for applications that require always-on connections.

Provides an Extension of Industrial Network Deployment Capacity

With 24 Port Unmanaged Industrial PoE Switch, The video surveillance administrators may select a transceiver based on the transmission distance and speed requirements. It is possible to extend the distance from 550 meters to 2 kilometres (multi-mode fibre) and up to 10/20/40/60/80/120 km (single-mode fibre or WDM fibre). Many enterprise data centres and distributed systems are suitable for applications

Unmanaged Industrial PoE Switch Ideal for IP Surveillance System

AI Extend: AI extend is a common PoE switch feature designed to extend PoE distance up to 250m. The downside is that port speeds will be limited to only 10Mbps.

AI PoE: The AI PoE feature allows the switch to periodically check the ports for activity. If a port is not passing traffic for a certain amount of time, the switch will reset the power on that specific port.

Powerful 24 Port Unmanaged Industrial PoE Switch

AI VLAN: AI VLAN is essentially port isolation on each PoE port. All PoE ports can only communicate with the uplinks when this option is enabled.

AI QoS: When AI QoS is enabled, 1-8 port prioritises video and VoIP traffic flows over others. For example, an IP camera streaming in real-time takes preference over a user transferring a backup file to a server.

Plug and Play Meets a Variety of Application Requirements

Smart Highway Tollgate

Smart Container Terminal

Smart Energy

Ethernet Interface
Model FR-7N3224 FR-7N3224P/FR-7N3224BT

24×10/100/1000Base-TX Port(RJ45)

2x1000Base-X SFP

Port Mode(Tx)


Full/Half Duplex Mode

Auto MDI/MDI-X Connection


IEEE 802.3 for 10BaseT

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x for flow control and back pressure

IEEE802.3az for Energy Efficient Ethernet(EEE)

Packet Buffer Size 4M
Maximum Packet Length 10K
MAC Address Table 8K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property

Delay time: < 7μs

Backplane bandwidth: 52G

PoE & Power Supply(Base on model)
Model FR-7N3224P FR-7N3224BT
PoE Ports Port 1 to 24 IEEE802.3af/at @PoE+ Port 1 to 24 IEEE802.3af/at/bt @PoE++
Power Supply Pin Default: 1/2(+), 3/6(-) Default: 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Max Power Per Port 30W 90W
Total PWR /Input Voltage 480W(DC48-56V) (Model dependent) 720W(DC52-56V) (Model dependent)
Power Consumption 24 Watts Max(without PoE load)
Power Inputs 2
Input Voltage 9-56VDC, Redundant dual inputs
Operating Voltage

Non-PoE Mode: 9-56VDC

30W PoE Mode: 48-56VDC

90W PoE Mode: 52-56VDC(IEEE802.3bt model)


1 removable 6-contact terminal blocks

Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Protection Overload Current Protection, Reverse Polarity Protection
Physical Characteristics
Housing Aluminium case
IP Rating IP40
Dimensions 155mmx128mmx88mm
Installation DIN Rail/Wall Mount
Weight 1.35kg
Operating Temperature -40℃~75℃ (-40 to 167 ℉)
Operating Humidity 5%~95% (non-condensing)
Storage Temperature -40℃~85℃ (-40 to 185 ℉)
MTBF 907,476 hours @ Telcordia SR-332 Standard
Heat Dissipation

34 BTU/h (non-PoE mode)

853 BTU/h (with 240W PoE load)

Cooling Passive Cooling, Fanless Design
Noise Level 0 dBA
