Benefits of Upgrading to a 100M Industrial Ethernet Switch for Your Network

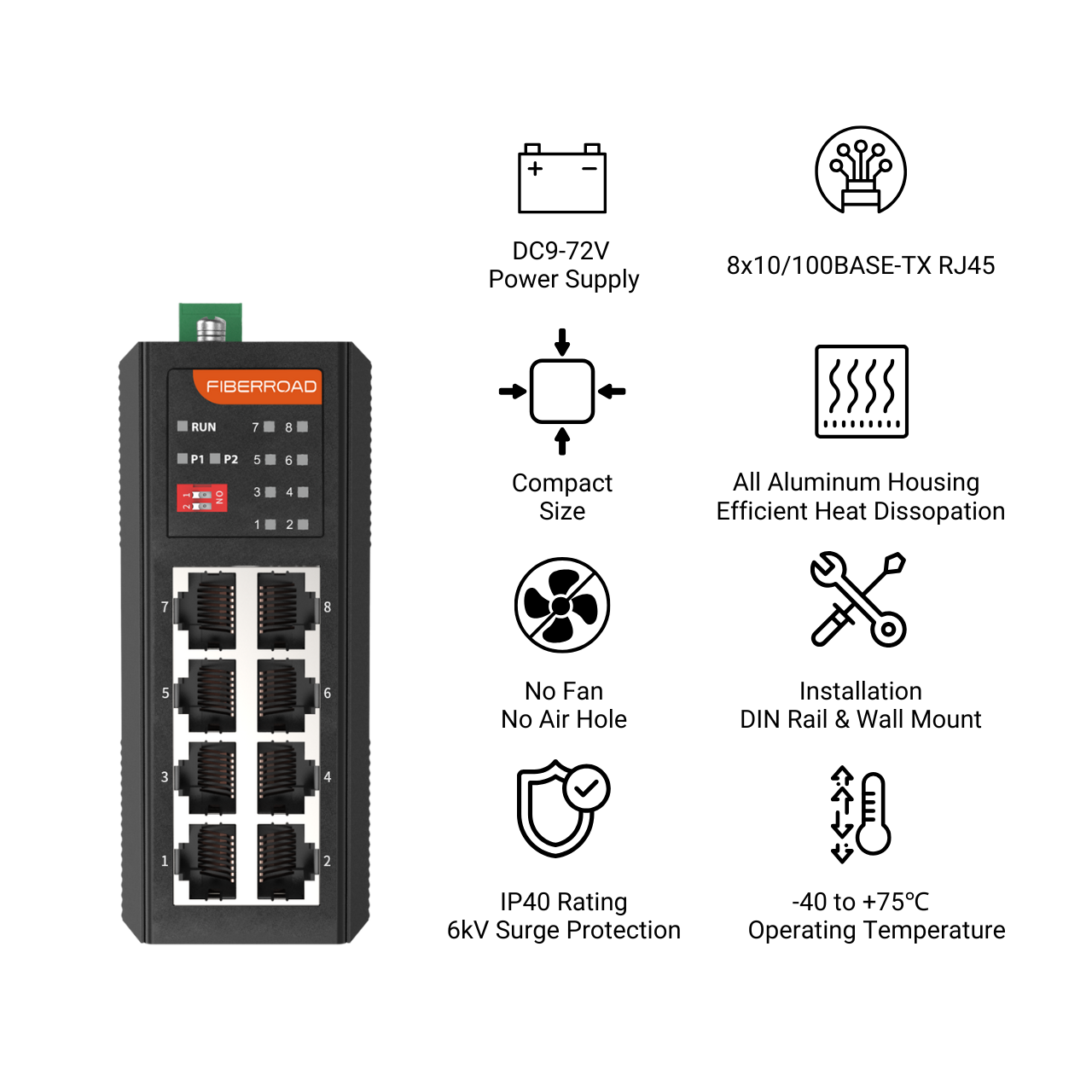

The Fiberroad FR-7A Series Industrial Ethernet Switch is a state-of-the-art device that has been engineered specifically to cater to the unique needs of industrial automation. It stands out froUpgrading to a 100M Industrial Ethernet Switch such as the Fiberroad FR-7A Series Unmanaged Industrial Ethernet Switch can bring numerous benefits to your network. With its state-of-the-art design and unique features that cater specifically to the needs of industrial automation, this device is an excellent investment for any business looking to improve their networking infrastructure. One of the most significant advantages of upgrading to this switch is its ability to provide faster data transfer speeds, enabling more efficient communication between devices on your network. Additionally, the FR-7A series ensures reliable connectivity with minimal downtime by offering advanced error detection and correction mechanisms. This switch also comes with robust security features, including access control lists and port security settings that aid in safeguarding against unauthorized access and cyber attacks. Overall, investing in a 100M Industrial Ethernet Switch like the Fiberroad FR-7A Series offers enhanced performance, reliability, and security for your network – making it a perfect choice for businesses operating in industrial environments requiring high-speed data transmission capabilities.
Key Features
Auto Broadcast Suppression
Auto Pro series industrial switches are equipped with Auto Broadcast Suppression technology, which improves the stability and reliability of industrial networks and allows uninterrupted communication. Auto Broadcast Suppression is an intelligent network management function that can identify and respond to broadcast storms that may occur in the network.
Auto broadcast storm suppression，The switch independently learns the addresses of termination devices connected to a port by evaluating the source addresses in the data. Only packets with unknown addresses, with a source address of this port or with a multicast/broadcast address in the destination address field are forwarded via the corresponding port. Up to 2048 MAC addresses can be stored.
Auto PROFINET PTCP Filtering
Auto PROFINET PTCP filter is not only a key function to improve communication efficiency, but also an important part of Auto Pro switches to provide excellent solutions for industrial automation. It ensures the stability and reliability of real-time communication through an intelligent filtering mechanism. This function gives Auto Pro series industrial switches a higher level of intelligence. Its sophisticated filtering algorithm not only identifies PTCP traffic, but also intelligently adapts to network changes, ensuring that Auto Pro series switches can operate at their best even in complex industrial environments.
By filtering frames with destination MAC addresses in the range 01-80-C2-00-00-02 through 01-80-C2-00-00-0F, Auto PROFINET PTCP Filtering blocks PROFINET PTCP-Delay traffic. Because PTCP-Delay uses the same MAC address (01-80-C2-00-00-0E), the filter blocks LLDP traffic as well.
Auto QoS Priority
Auto Pro series industrial switches adopt advanced QoS （Quality of Service） technology to provide superior performance and stability for industrial Ethernet communications through intelligent traffic analysis and dynamic priority adjustment. This series of switches can automatically adjust the priority of packets based on traffic characteristics and network requirements to ensure real-time transmission of critical data. This intelligent QoS prioritization not only improves network efficiency, but also effectively reduces response time, making industrial communication systems more flexible and reliable.
Auto QoS, when heavy traffic occurs, packets with an 802.1Q priority level of 4 to 7 or with an IPv4 Type of Service Precedence value of one or more are considered high priority and are processed before packets with an 802.1Q priority level of 0 to 3 or an IPv4 Type of Service value of one or more.
Auto Jumbo Frame Support
The Auto Pro series of industrial switches introduces advanced Auto Jumbo Frame technology, which allows the switch to intelligently identify and process jumbo frames, enhancing the efficiency and volume of data transmission. By automatically recognizing jumbo frames, the switch can effectively cope with high-capacity data streams, providing excellent performance support for real-time data collection, video surveillance and other application scenarios.
Real-time performance and reliability play a key role in industrial communication. Auto Jumbo Frame technology of Auto Pro series switches not only improves the speed of data transmission but also drastically reduces the delay of packet transmission, ensuring the timeliness of real-time data.
Auto Power Alert
More than just a high-performance data transmission device, the Auto Pro series switch is a reliable guardian of the industrial Ethernet communication network. Auto Pro supports Auto Power Alert, which alerts managers of any power problems as soon as abnormal conditions such as voltage fluctuations or power interruptions are detected. This timely notification mechanism helps us to respond quickly and take necessary measures to prevent potential network failures and maintain the stability and reliability of the entire system.
| Ethernet Interface | ||||
| FR-7A1005 | FR-7A1008 | FR-7A1016 | ||
| Ports | 5×10/100Base-T Port(RJ45) | 8×10/100Base-T Port(RJ45) | 16×10/100-T Port(RJ45) | |
| Port Mode(Tx) |
Auto-Negotiation Full/Half Duplex Mode Auto MDI/MDI-X Connection |
|||
| Standards |
IEEE 802.3 for 10BaseT IEEE 802.3u for Fast Ethernet |
|||
| Packet Buffer Size | 512K | 512K | 1M | |
| Maximum Packet Length | 9K | 10K | 10K | |
| MAC Address Table | 1K | 1K | 2K | |
| Transmission Mode | Store and Forward (full/half duplex mode) | |||
| Switch Fabric | 1G | 1.6G | 3.2Gbps(non-blocking | |
| Throughput(packet per second) | 0.74Mpps | 1.19Mpps | 2.38Mpps | |
| Switching Latency | ≤7us | ≤7us | ≤7us | |
| Network Cables | 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters 100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters |
|||
| Physical Characteristics | |||
| Model | FA-7A1005/7A1008 | FR-7A1016 | |
| Housing | Aluminium case | ||
| IP Rating | IP40 | ||
| Dimensions | 100mm x 78mm x 40mm (L x W x H) | 138mm x 108mm x 49mm (L x W x H) | |
| Installation | DIN Rail/Wall Mount | ||
| Weight | 300g | 680g | |
| Environmental | |||
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) | ||
| Operating Humidity | 5%~95% (non-condensing) | ||
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) | ||
| MTBF | ＞500,000 hours @ Telcordia SR-332 Standard | ||
| Heat Dissipation | 10 BTU/h | 34 BTU/h | |
| Cooling | Passive Cooling, Fanless Design | ||
| Noise Level | 0 dBA | ||
