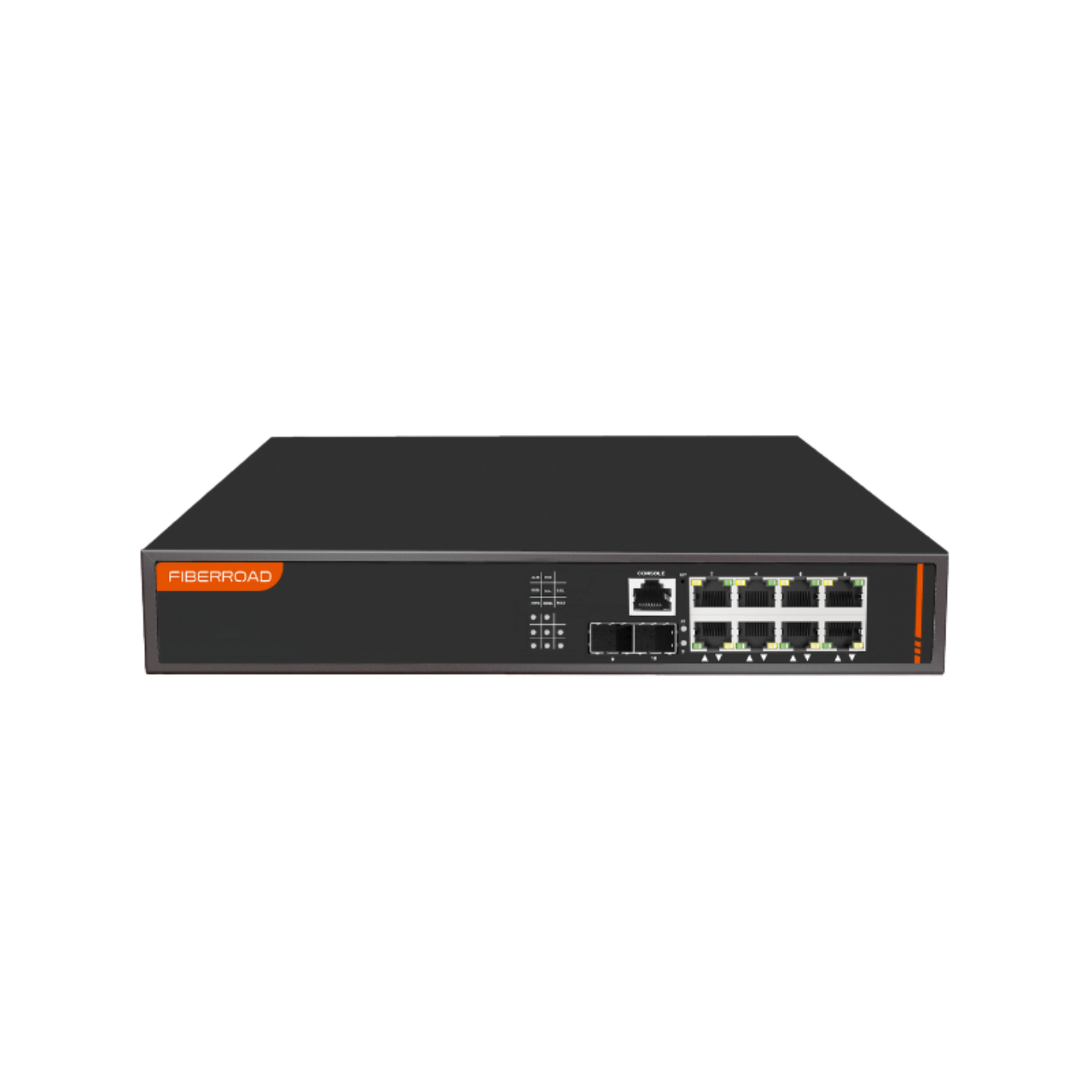

8 Port Managed PoE++ Switch

FR-5M3208BT is a new generation Power over Ethernet switch with 8-Port 10/100/1000Base-TX and 2 Gigabit uplink ports that provide stable and reliable Ethernet transmission. With high-quality design and reliability. It can supply power to PD terminal equipment such as wireless AP, webcam, VoIP, and visual intelligent building intercom through network cable and meet the network environment that needs a high-density PoE/PoE+/PoE++ power supply. It suits hotels, campuses, factory dormitories and small and medium-sized enterprises.


Product Features

  • IEEE 802.3af/at/bt PoE Standard, without damaging not-PoE devices.
  • Advanced PoE management functions include PoE output setting, Smart PoE, PoE scheduling and PoE Budget Management.
  • The priority system for PoE Port will supply power to the high-priority level port first when the power budget is insufficient.
  • Full gigabit L2+ management, easy to manage the PoE network by CLI/Cloud/WebGUI/NMS.
  • Build up a redundant PoE network with STP/RSTP/MSTP/ERPSv2.
  • RADIUS, IEEE 802.1X, SNMPv3, HTTP and SSH to enhance network security.
  • Bandwidth management prevents unpredictable network status with ”Lock Port” to restrict access to authorized MAC addresses.
  • QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR&SP+WRR

Video Gallery

Quality Certifications
Share This Product

8 Port Managed PoE++ Switch Provide reliable Power over Gigabit Ethernet

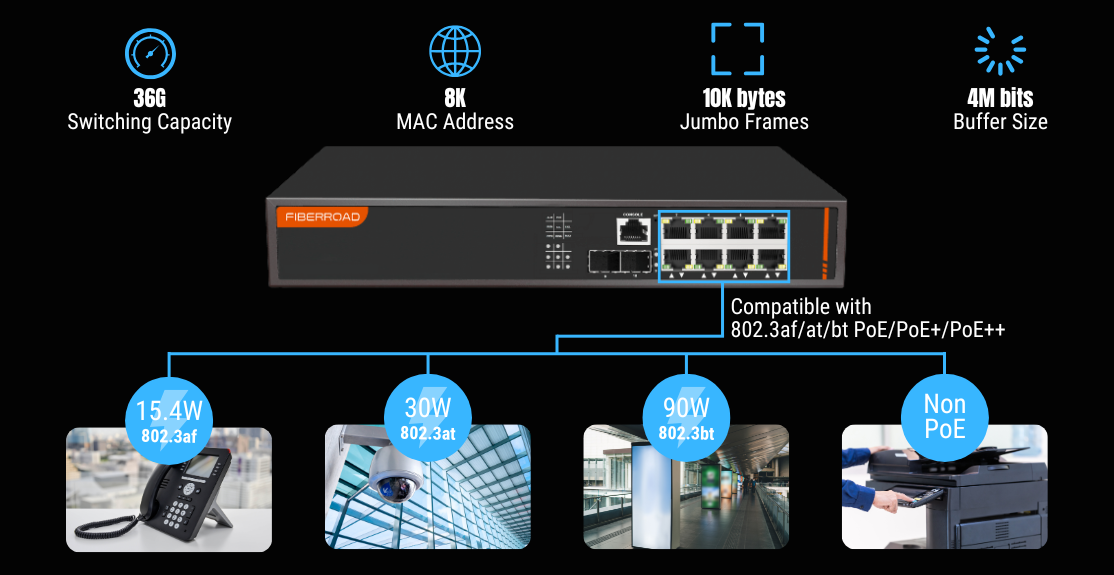

The Managed PoE++ ( IEEE802.3bt ) Network switch with 8-Port 10/100/1000Base-TX and 2 Gigabit uplink ports provide stable and reliable Gigabit Ethernet transmission. The PoE++ switch can supply power to PoE-compatible devices, such as wireless APs, IP cameras, VoIP phones, and visual intercoms. These PoE network switches can meet the network that needs a high-density IEEE802.3(PoE++) power supply.

Managed PoE++ Switch


1. IEEE802.3af/at/bt standard automatically identifies power devices without damaging non-PoE devices.
2. Up to 90W per port.
3. PoE++ Switch port will supply power to the high priority level port when the power budget is insufficient.
4. PoE output power allocation, Scheduling of PoE operation.


1. Build a redundant network with STP/RSTRP/MSTP/ERPSv2.
2. IPv4/IPv6 Management and Static Route
3. ACL Based on MAC, IP address.
4. Retagging and complicated flow classification based on VLAN, MAC/IP.
5. Flexible bandwidth control policies.


1. Web-based CloudMQTT to monitor the PoE Network anytime, anywhere.
2. Command-line interface(CLI) and Firo WebGUI management for configuring major managed functions.
3. SNMPv1/v2C/v3 for different levels of network management.
4. FIRO Web-based NMS enable discovery and diagrams of PoE++ Switch network topology.


1. AAA&RADIUS, IEEE 802.1X, SNMPv3, HTTPs/SSLv3,SSH2.0 to enhance network security.
2. Support user hierarchical management, ACL control list
3. Port isolation within the same VLAN, DHCP-Snooping
4. DDOS, port-based MAC filtering/binding, MAC black holes, IP source protection, ARP message speed limit

Commercial Grade PoE++ Switch With Customer Friendly

The Managed PoE++ Switch is a reliable and efficient solution for businesses looking to streamline their network infrastructure. With its commercial-grade construction, this switch can handle the demands of enterprise-level applications with ease, providing high-speed connectivity and power over Ethernet to connected devices. What sets it apart from other managed switches on the market is its customer-friendly design – intuitive web-based management software allows users to easily configure and monitor their network from anywhere, while advanced security features protect against unauthorized access. Whether you’re managing a small business or a large enterprise, this switch delivers the scalability and flexibility you need to keep your network running smoothly.

Make PoE++ Optimize Your Network’s Efficiency

The 8 PoE Network Switch can handle amounts of data in a secure topology linking to a network backbone or high-capacity servers. The FR-5M3208BT is capable of providing non-blocking switch fabric and wire-speed throughput.

The 8-Port Managed PoE Switch series allows the administrator to conveniently boost network efficiency by manually configuring Layer 3 IPv4/IPv6 VLAN static routing. FR-5M3208BT supports redundant ring technology and features a strong, rapid self-recovery capability to prevent interruptions and external intrusions. In addition to using advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching), Spanning Tree Protocol, and redundant power input systems, it enhances system reliability and uptime in harsh factory environments.

Get The Most Out Of Your Network With 8 Port PoE++Switch

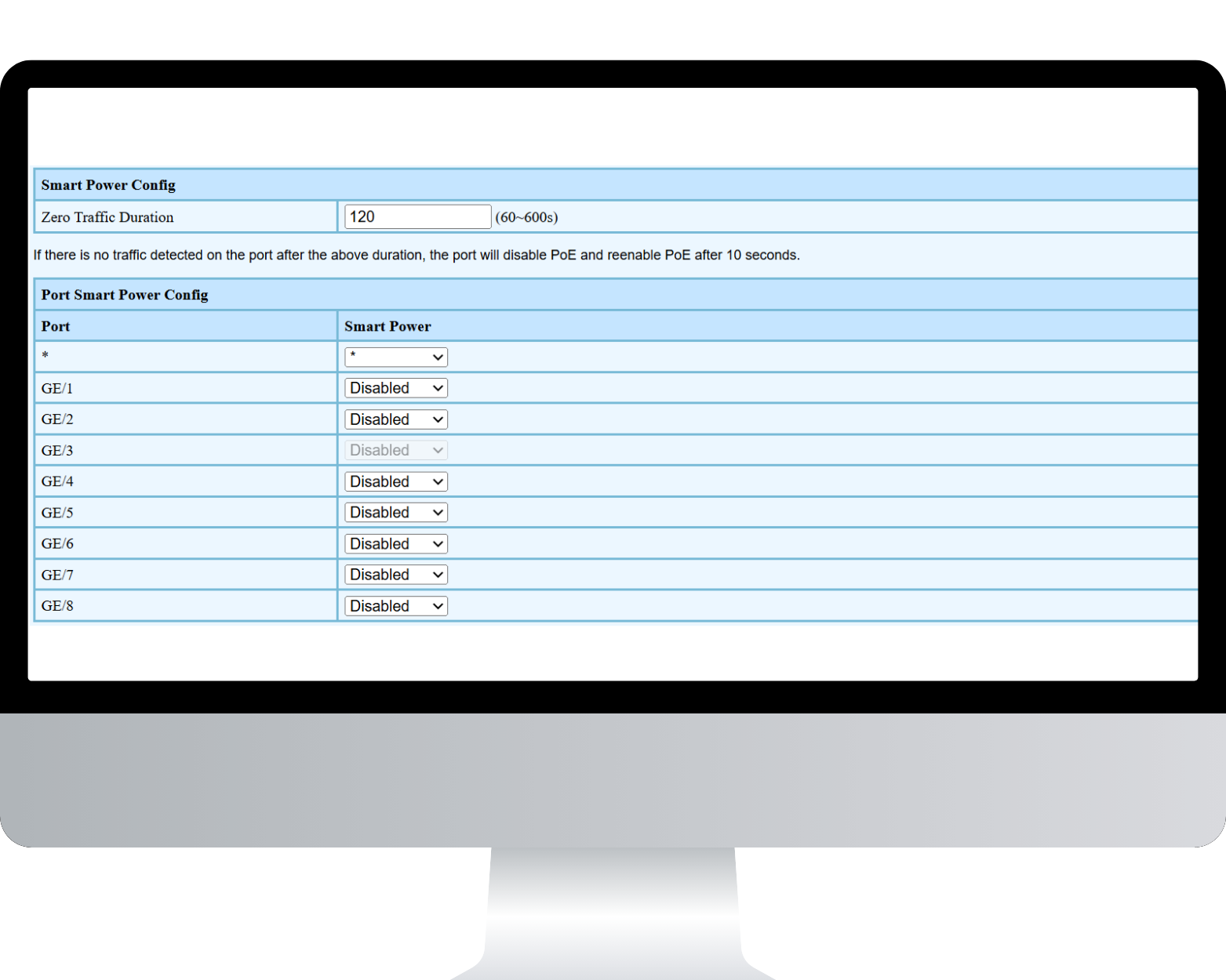

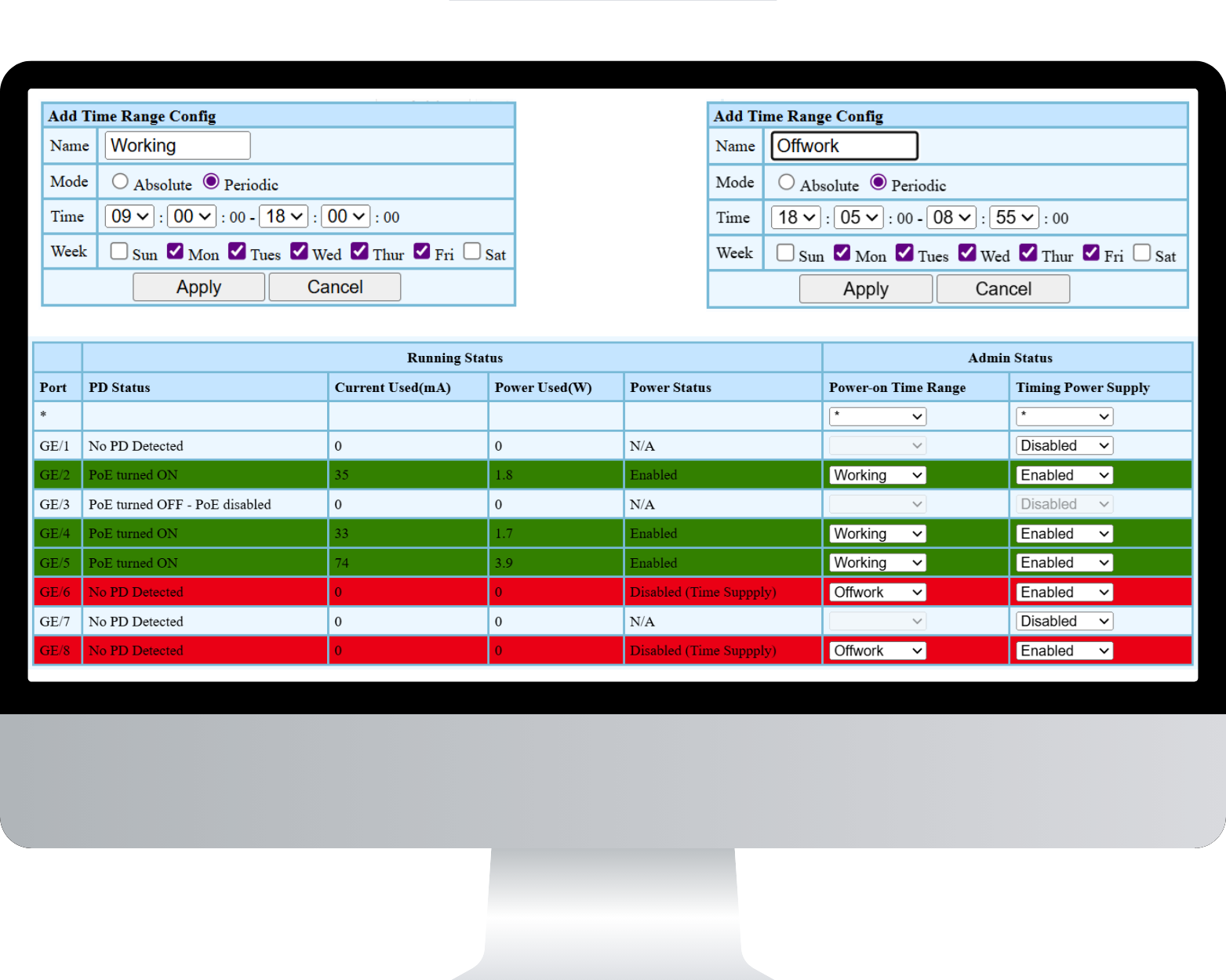

FR-5M3208BT offers multiple network management methods. This software is easy to use, with no extra hardware another critical feature of the 8-Port PoE++ Network Switch is that it will automatically detect and recognize power devices that meet the standard and supply power through the network cable. Being the PoE management for CCTV surveillance, wireless and VoIP Networks, FR-5M3208BT features the following special PoE management functions: PoE PD-alive check, Schedule power rebooting, PoE operation schedule, PoE usage monitoring, PoE++ port power feeding priority.

Managed PoE++ Switch
Ethernet Interface
Ports 2×Uplink Gigabit SFP

8×10/100/1000M Base-TX RJ45

Port Mode(Tx) Auto-Negotiation Speed

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

SFP Port Transmission Multi-mode: 850nm/0-500M, Single-mode:1310nm/0-40km, 1550nm/up to 120km
RJ45 Port Transmission 100m(using standard CAT5/CAT5e cable )
Standards IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IEEE 802.3x for flow control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1p for Class of Service

IEEE 802.1Q for VLAN Tagging

IEEE 802.1X for authentication

IEEE 802.3ad for Port Trunk with LACP

Packet Buffer Size 4 Mbits
Maximum Packet Length Up to 10K
MAC Address Table 4K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property Delay time: < 7μs

Backplane bandwidth: 20Gbps

IGMP Group 4096
Max. No. of VLAN 256
VLAN ID Range VID 1 to 4094
PoE & Power Supply
PoE Ports Port 1 to 8 IEEE802.3af/at/bt @PoE
Power Supply Pin Default: 1/2(+), 3/6(-), 4/5(+), 7/8(-)
Max Power Per Port 90W; IEEE802.3af/at/bt
Total PWR /Input Voltage 150W(AC100-240V)
Power Consumption 18W MAX (Without PoE load)
Power Inputs 1

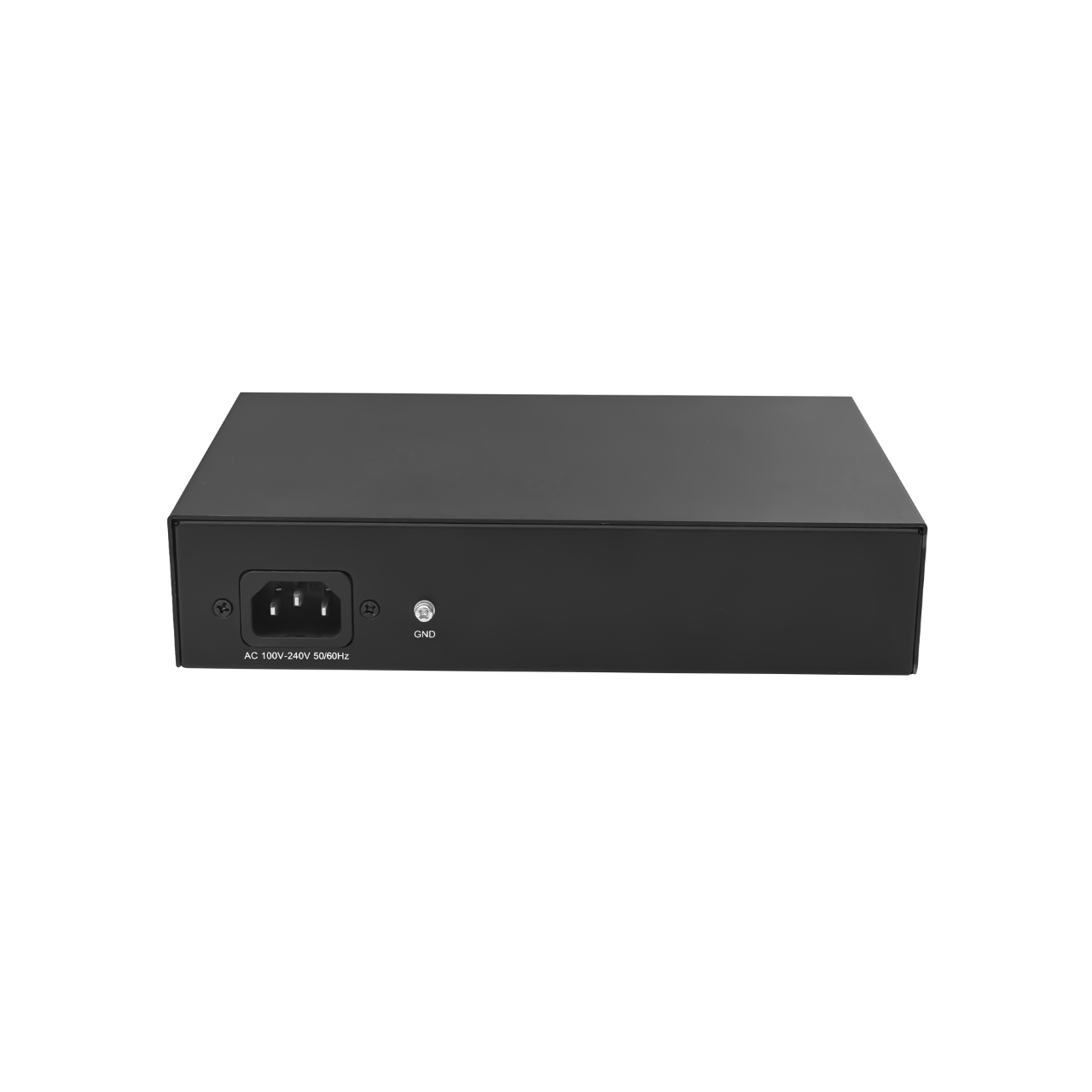

Power Supply Internal power adapter with AC100 – 240V 50-60Hz input
Protection Overload Current Protection


Physical Characteristics
Housing Metal
IP Rating IP30
Dimensions 208mm*140mm*45mm

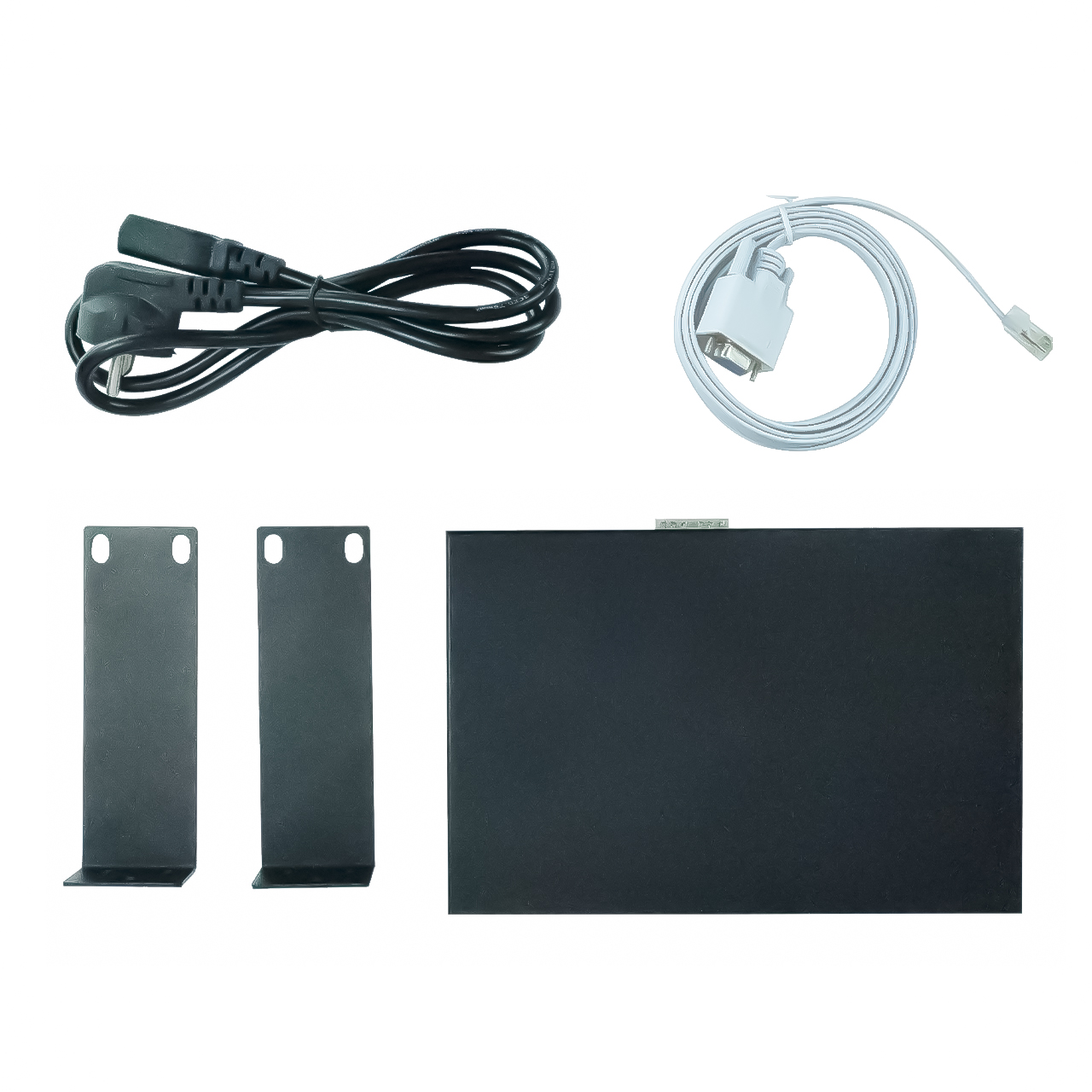

Installation Mode 1RU Chassis Rack-Mount Installation
Weight 1200g
Working Environment
Operating Temperature 0℃~50℃ (32to 122 ℉)
Operating Humidity 5%~90% (non-condensing)
Storage Temperature -20℃~70℃ (-4 to 158 ℉)
MTBF 100,819 Hours
MTBF Standard Telcordia SR-332 GB 25℃
