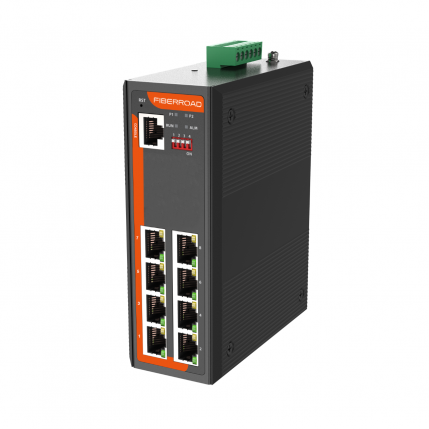

8 Port Managed Industrial PoE Switch(9-24VDC Input)
The new generation Industrial Power over Ethernet Switch with 8-Port 10/100/1000Base-TX RJ45 Ports that provide stable and reliable Ethernet transmission . For an 802.3at PoE+ device to work properly, it needs power inputs with a voltage of 48VDC. If a power input has a voltage lower than 24V then it will not function as intended. FR-7M3008-24V solves this problem by using power boosting technologies to convert 9-24VDC input to 48-56VDC output, which is the necessary voltage range for the 802.3at PoE+ standard. It can supply power to PD terminal equipment such as wireless AP, webcam, VoIP for smart building or smart bus solution through network cable and meet the network.
Managed Industrial Ethernet Switch with 8 Port PoE+
If you’re looking for a top-of-the-line industrial PoE+ switch, you’ll want to check out the 8 port managed industrial PoE switch. This industrial switch is designed for optimal performance and features eight 10/100/1000Mbps Ethernet ports with PoE+ support. It also has a rugged casing that can withstand harsh environments, making it ideal for industrial applications. Plus, the web-based management interface makes it easy to configure and monitor your network.
Smart PoE Features
- IEEE802.3af/at standard automatically identifies power devices without damaging non-PoE devices.
- Up to 30W per port.
- PoE+ Switch port will supply power to the high-priority level port when the power budget is insufficient.
- PoE output power allocation, Scheduling of PoE operation.
Advance Layer2+ Features
- Build a redundant network with STP/RSTRP/MSTP/ERPSv2.
- IPv4/IPv6 Management and Static Route
- ACL Based on MAC, IP address.
- Retagging and complicated flow classification based on VLAN, MAC/IP.
- Flexible bandwidth control policies.
High-Performance Network Management
- Web-based CloudMQTT to monitor the PoE Network anytime, anywhere.
- Command-line interface(CLI) and Firo WebGUI management for configuring major managed functions.
- SNMPv1/v2C/v3 for different levels of network management.
- FIRO Web-based NMS enable discovery and diagrams of PoE+ Switch network topology.
Complete Security Mechanisms
- AAA&RADIUS, IEEE 802.1X, SNMPv3, HTTPs/SSLv3,SSH2.0 to enhance network security.
- Support user hierarchical management, ACL control list
- Port isolation within the same VLAN, DHCP-Snooping
- DDOS, port-based MAC filtering/binding, MAC black holes, IP source protection, ARP message speed limit

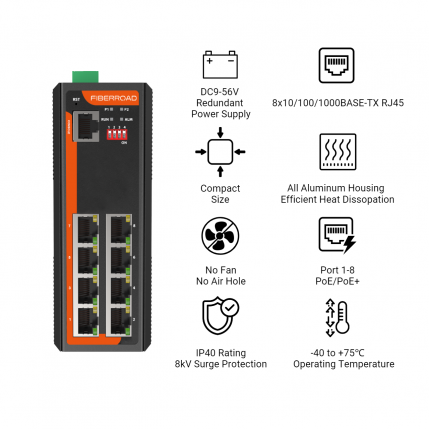

Industrial-Grade Design for Harsh Application Conditions
8 Port Managed Industrial PoE+ Switch with Industrial-grade designs are specially designed to withstand harsh application conditions. They are made of high-quality materials that can withstand extreme temperatures(-40 to 75℃）, humidity, and other harsh conditions. Industrial-grade design suits are ideal for use in industrial settings, such as factories, warehouses, and other harsh environments.
Use Industrial PoE+ Switch in Low-voltage Applications
In most applications, Low voltage power is needed, especially in smart bus systems and smart building applications. For an 802.3at PoE+ device to work properly, it needs power inputs with a voltage of 48VDC. If a power input has a voltage lower than 24V then it will not function as intended. FR-7M3008-24V solves this problem by using power boosting technologies to convert 9-24VDC input to 48-56VDC output, which is the necessary voltage range for the 802.3at PoE+ standard.
The Industrial PoE Network Can be Managed anytime, anywhere
Port 1-8 complies with IEEE802.3af/at standards. One critical point is that it can automatically detect and recognize PD devices that meet the standards and supply power through the network cable. As a PoE management unit for CCTV surveillance, wireless and VoIP networks, FR-7M3008P-24V has the following special PoE management functions: PoE PD-alive check, schedule power rebooting, scheduled power feeding, usage monitoring, and port priority power feeding.
Managed IndustrialPoE switches are used in Harsh Environment Applications that require rugged hardware and support for Power over Ethernet (PoE). These switches offer advanced features such as PoE+ support, port-based VLANs, and QoS.
Industrial Ethernet switches have a wide operating voltage range, while regular switches require higher voltages. Regular switches are basically single power supplies, while industrial switch power supplies are generally dual power supply backups. Industrial Ethernet switches can be installed in DIN rails and racks.
|Ports||8×10/100/1000Base-T(X）Ports (RJ45 connector)|
|Port Mode(Tx)||Auto-Negotiation Speed
Full/Half Duplex Mode
Auto MDI/MDI-X Connection
|Standards||IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP
|Console||1x RJ45-to-RS232 Serial Port(115200)|
|Packet Buffer Size||2Mbits|
|Maximum Packet Length||Up to 9K|
|MAC Address Table||4K|
|Transmission Mode||Store and Forward (full/half duplex mode)|
|Exchange Property||Delay time: < 7μs
Backplane bandwidth: 20Gbps
|Max. No. of VLAN||64|
|VLAN ID Range||VID 1 to 4094|
|PoE & Power Supply|
|PoE Ports||Port 1 to 8 IEEE802.3af/at @PoE+|
|Power Supply Pin||Default: 1/2(+), 3/6(-)|
|Max Power Per Port||30W|
|Total PWR /Input Voltage||80W(9VDC)
|Power Consumption||10 Watts Max(without PoE load)|
|Input Voltage||9-56VDC,Redundant dual inputs|
|Operating Voltage||Non-PoE Mode: 9-56VDC
30W PoE Mode: 48-56VDC
|Connector||1 removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm
|Protection||Overload Current Protection, Reverse Polarity Protection|
|Redundancy Protocols||Support STP/RSTP/MSTP/ERPSv2, Link Aggregation|
|Multicast Support||Support IGMP Snooping V1/V2/V3，support GMRP, GVMP,802.1Q|
|VLAN||Support IEEE 802.1Q 4K VLAN，support QINQ, Double VLAN,|
Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)
|ACL||Port-based Issuing ACL
ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
|POE Management||Total power limit of PoE power supply
PoE output power allocation
PoE output priority configuration
PoE working status
Scheduling of PoE operation
|Diagnostic Maintenance||Support port mirroring, Syslog, Ping|
|Management Function||Support CLI、WEB、SNMPv1/v2/v3， Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT|
|Alarm Management||Support 1-way relay alarm output, RMON, TRAP|
|Security||Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0
Support DHCP Snooping, Option 82，802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS，port-based MAC filtering/binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
|Advance Layer 2+ Features||IPv4/IPv6 Management
