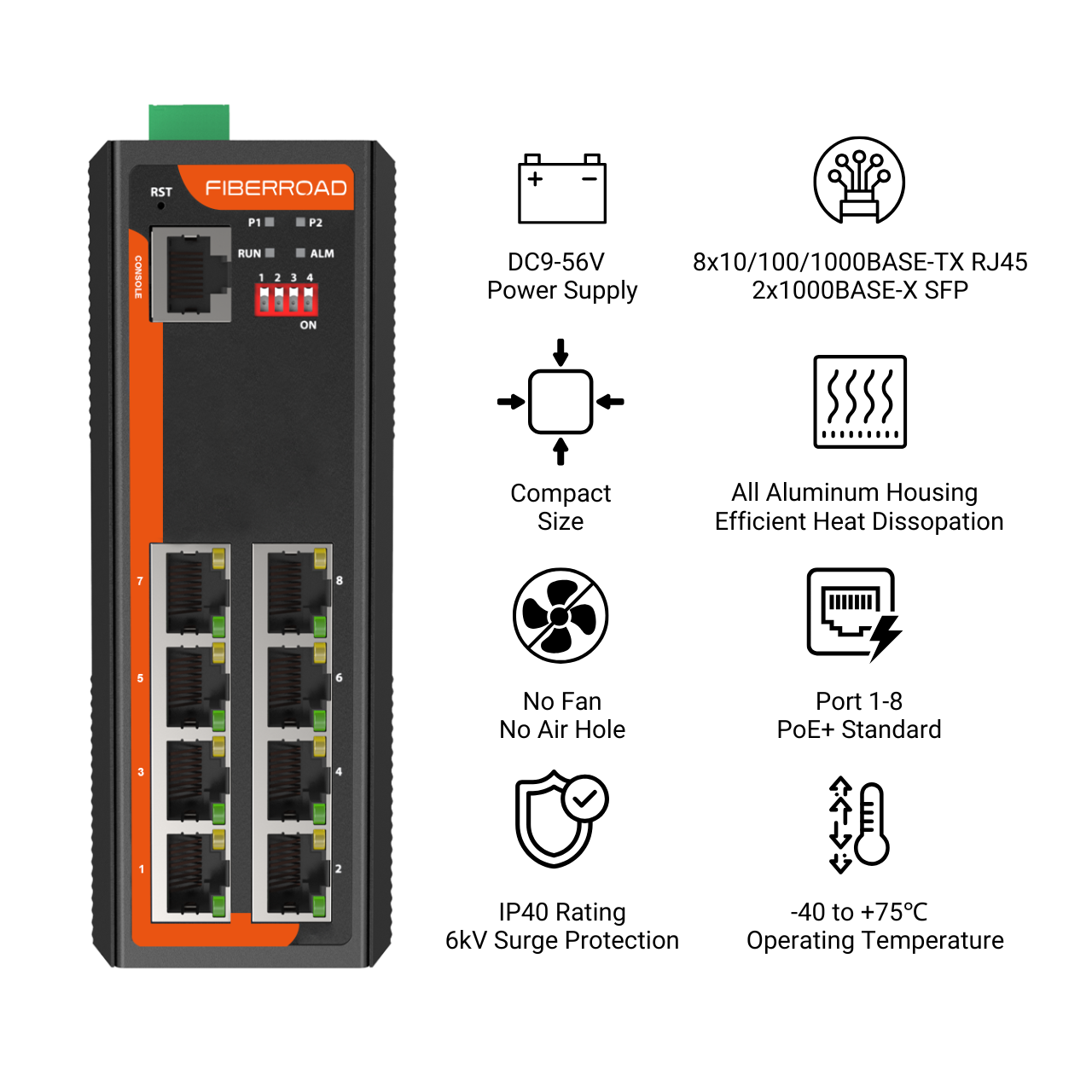

8 Port Managed Industrial 24v PoE Switch

The new generation Industrial Power over Ethernet Switch with 8-Port 10/100/1000Base-TX RJ45 Ports that provide stable and reliable Ethernet transmission . For an 802.3at PoE+ device to work properly, it needs power inputs with a voltage of 48VDC. If a power input has a voltage lower than 24V then it will not function as intended. FR-7M3008-24V solves this problem by using power boosting technologies to convert 9-24VDC input to 48-56VDC output, which is the necessary voltage range for the 802.3at PoE+ standard. It can supply power to PD terminal equipment such as wireless AP, webcam, VoIP for smart building or smart bus solution through network cable and meet the network.



  • IEEE 802.3af/at PoE+ Standard, without damaging not-PoE devices.
  • Advanced PoE management functions : PoE output setting, Smart PoE, PoE scheduling and PoE Budget Management.
  • Priority system for PoE Port, it will supply power to the high priority level port first when the power budget is insufficient.
  • Full gigabit L2+ management, easy to manage the PoE network by CLI/WebGUI/NMS.
  • Build up a redundant PoE network with STP/RSTP/MSTP/ERPSv2.
  • RADIUS, IEEE 802.1X, SNMPv3, HTTPs and SSH to enhance network security.
  • Bandwidth management prevents unpredictable network status with ”Lock Port” to restrict access to authorized MAC addresses.
  • QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR&SP+WRR
  • All-aluminum Case, Compact and Fanless Design

Video Gallery

Quality Certifications
Share This Product

Exploring the Benefits of Using a 24v Industrial PoE Switch in Your Network

If you’re looking for a top-of-the-line industrial 24v PoE+ switch, you’ll want to check out the 8 port managed industrial PoE switch. This industrial switch is designed for optimal performance and features eight 10/100/1000Mbps Ethernet ports with PoE+ support. It also has a rugged casing that can withstand harsh environments, making it ideal for industrial applications. Plus, the web-based management interface makes it easy to configure and monitor your network.

24v industrial poe switch

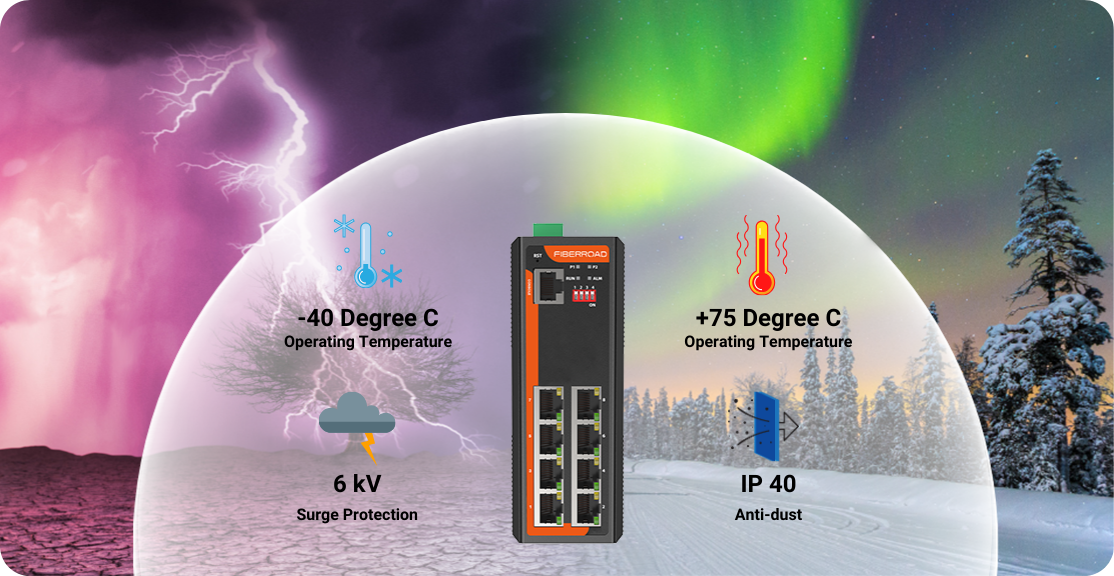

Surviving the Toughest Conditions: Industrial-Grade Design for Harsh Applications

In the world of industrial applications, durability is key. The equipment used must be able to withstand harsh environments and tough conditions. That’s why an industrial-grade design is necessary for these types of settings.

The 8 Port Managed Industrial 24v PoE Switch is specifically designed to handle even the toughest conditions with its rugged metal casing and IP40-rated housing. It’s equipped with surge protection to prevent damage from power surges, making it ideal for use in areas prone to electrical fluctuations.

But that’s not all – this switch also features a wide operating temperature range (-40°C to 75°C), ensuring it can function properly in extreme temperatures without overheating or malfunctioning.

24v industrial poe switch

The Importance of Proper Power Input Voltage for Optimal Device Functionality

The FR-7M3008-24V industrial PoE switch is a powerful solution that addresses one of the biggest challenges faced by network administrators – the need to provide power to devices located in areas where electrical outlets are not available. This switch uses state-of-the-art power-boosting technologies to convert 9-24VDC input into a steady and reliable 48-56VDC output, which is exactly what’s needed for devices that comply with the IEEE 802.3at PoE+ standard. With this advanced technology, users can easily connect various types of networking equipment such as IP cameras, access points or even VoIP phones without having to worry about finding an electrical outlet nearby. The FR-7M3008-24V industrial PoE switch provides an innovative and cost-effective solution for businesses looking to expand their networks while maintaining flexibility and convenience.

24v industrial poe switch

Revolutionize Your Network Management with 24v Industrial PoE Switch

Port 1-8 complies with IEEE802.3af/at standards. One critical point is that it can automatically detect and recognize PD devices that meet the standards and supply power through the network cable. As a PoE management unit for CCTV surveillance, wireless and VoIP networks, FR-7M3008P-24V has the following special PoE management functions: PoE PD-alive check, schedule power rebooting, scheduled power feeding, usage monitoring, and port priority power feeding.

24v industrial poe switch NMS


What technology does this switch use to convert 9-24VDC input into a steady and reliable 48-56VDC output?

Our FR-7M3008-24V industrial PoE switch uses advanced power-boosting technologies to convert 9-24VDC input into a steady and reliable 48-56VDC output. This is done by boosting the voltage with a high power efficiency integrated circuit. The integrated circuit included in our switch also ensures a long lifespan of the switch, so you can trust your setup to keep running smoothly for years to come.

What types of devices can be powered using the Power over Ethernet (PoE) feature of this 24v Industrial PoE Switch?

This 24v Industrial PoE Switch uses a unique IEEE 802.3at compliant DC-DC converter technology which provides the necessary power conversion from 9-24VDC input to steady and reliable 48-56VDC output. This technology also enables the device to be used for both indoor and outdoor applications. With this feature, you can power various IP devices such as VoIP phones, Wi-Fi Access Points, security cameras and more using a single Ethernet cable.

How does the rugged design of this switch make it suitable for use in harsh environments?

The 8 Port Managed Industrial 24v PoE Switch is designed with a rugged metal casing and IP40-rated housing to ensure it can withstand the toughest of conditions. It also comes equipped with surge protection technology, so you can be sure that your data will stay safe even in extreme temperatures or humidity levels. We have designed this switch to handle whatever conditions come its way.

Hardware Specifications
Model FR-7M3008P-24V
Ports 8×10/100/1000Base-T(X)Ports (RJ45 connector)
Port Mode(Tx) Auto-Negotiation Speed

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

Standards IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IEEE 802.3x for flow control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1p for Class of Service

IEEE 802.1Q for VLAN Tagging

IEEE 802.1X for authentication

IEEE 802.3ad for Port Trunk with LACP

Console 1x RJ45-to-RS232 Serial Port(115200)
Packet Buffer Size 4 Mbits
Maximum Packet Length Up to 10K
MAC Address Table 8K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property Delay time: < 7μs

Backplane bandwidth: 24Gbps

IGMP GroupS 2048
Max. No. of VLAN 64
VLAN ID Range VID 1 to 4094
PoE & Power Supply
Model FR-7M3008P-24V
PoE Ports Port 1 to 8 IEEE802.3af/at @PoE+
Power Supply Pin Default: 1/2(+), 3/6(-)
Max Power Per Port 30W
Total PWR /Input Voltage 90W(12VDC)



Power Consumption 10 Watts Max(without PoE load)
Power Inputs 2
Input Voltage 12-24VDC, Redundant dual inputs
Operating Voltage Non-PoE Mode: 9-56VDC

30W PoE Mode: 12-24VDC

Connector 1 removable 6-contact terminal blocks

Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Protection Overload Current Protection, Reverse Polarity Protection
Software Features
Redundancy Protocols Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
Multicast Support Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
VLAN Support IEEE 802.1Q 4K VLAN, support QINQ, Double VLAN,
Time Management SNTP
QOS Flow-based redirection

Flow-based rate limiting

Flow-based packet filtering

8*Output queues of each port 802.1p/DSCP priority mapping

Diff-Serv QoS, Priority Mark/Remark

Queue Scheduling Algorithm (SP, WRR, SP+WRR)

ACL Port-based Issuing ACL

ACL based on port and VLAN

L2 to L4 packet filtering, matching the first 80-byte message.

Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc

POE Management Total power limit of PoE power supply

PoE output power allocation

PoE output priority configuration

PoE working status

Scheduling of PoE operation

Diagnostic Maintenance Support port mirroring, Syslog, Ping
Management Function Support CLI、WEB、SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT
Alarm Management Support 1-way relay alarm output, RMON, TRAP
Security Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0

Support DHCP Snooping, Option 82,802.1X security access,

Support hierarchical user management, ACL access control list,

Support DDOS,port-based MAC filtering/binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit

Advanced Layer 2+ Features IPv4/IPv6 Management

Static Route
