10 Port Gigabit AI PoE Network Switch
FR-5A3010P is a new generation Power over Ethernet switch with 8-Port 10/100/1000Base-TX and 2 Gigabit uplink ports that provide stable and reliable Ethernet transmission offered by Fiberroad, with high-quality design and reliability. It can supply power to PD terminal equipment such as wireless AP, webcam, VoIP, and visual intelligent building intercom through network cable and meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories and small and medium-sized enterprises.

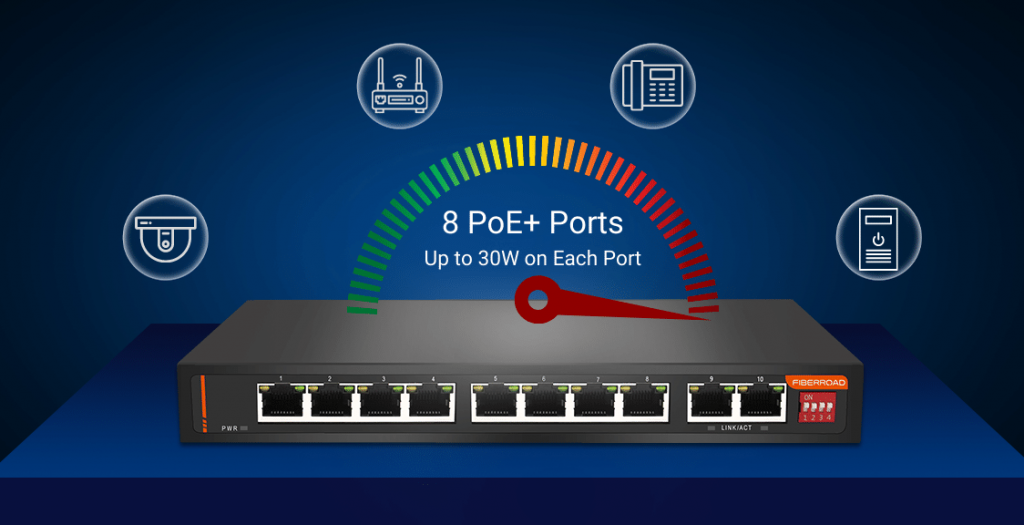

High-Power 10 Port PoE Gigabit Switch
10 port PoE gigabit switch compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The PoE network switch supports a total 125W PoE power budget* for the 8× PoE ports and opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, wireless access points, IP phones, computers, printers, and more.
|Ports||10×10/100/1000Base-T RJ45||Switching Capacity||20 Gbps|
|MAC Address||4K||Jumbo Frame||9K|
|PoE Port||Port 1 to 8 IEEE802.3af/at||Total Power||125W@15.4W/Port|
(External Power Adapter)
|100V-240VAC, 50-60Hz||Output Voltage
(External Power Adapter)
|Operating Temperature||0℃ to 50℃（32℉ to 122℉）||Storage Temperature||-20℃ to 70℃（-4℉ to 158℉）|
The PoE Network Switch Ideal for IP Surveillance

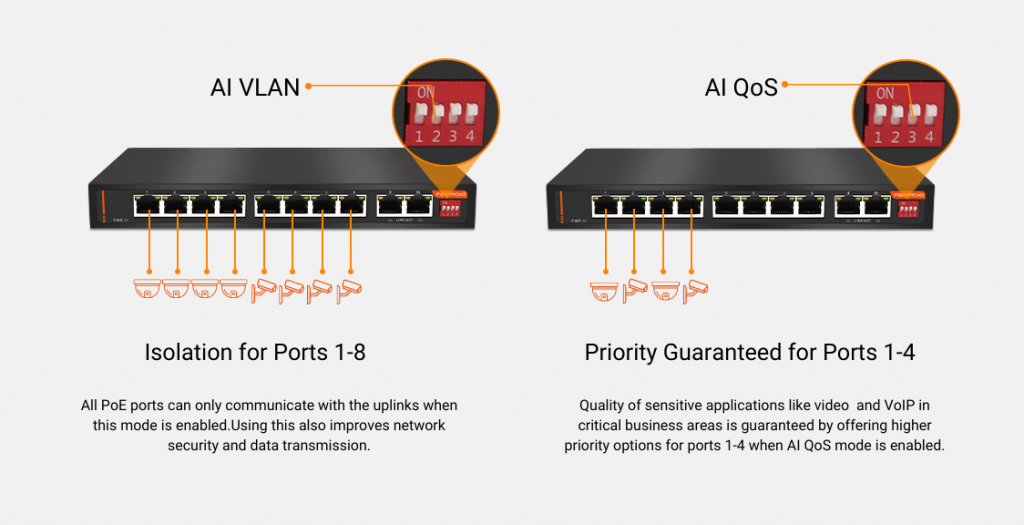

AI VLAN: AI VLAN is essentially port isolation on each PoE port. All PoE ports can only communicate with the uplinks when this option is enabled.
AI QoS: When AI QoS is enabled, 1-4 ports prioritise video and VoIP traffic flows over others. For example, an IP camera streaming in real-time takes preference over a user transferring a backup file to a server.
Secure and extend PoE network connectivity

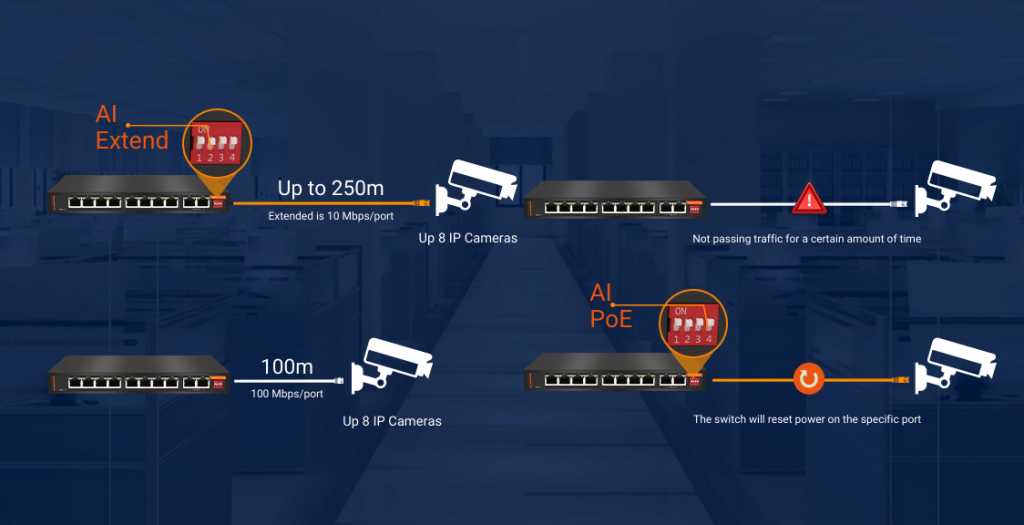

AI Extend: AI extend is a common PoE switch feature designed to extend PoE distance up to 250m. The downside is that port speeds will be limited to only 10Mbps.
AI PoE: The AI PoE feature (PoE watchdog) allows the switch to check the ports for activity periodically. If a port is not passing traffic for a certain amount of time, the switch will reset the power on that specific port.
|RJ45 Port||8×10/100/1000Base-TX + 2×10/100/1000Base-Tx||8×10/100/1000Base-TX|
|Optical Fiber Port||2x1000Base-X(SFP）|
|SFP Slot Port||Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)|
|Twisted Pair Transmission||10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-T: Cat5e or later UTP(≤100 meter)
Full/Half Duplex Mode
Auto MDI/MDI-X Connection
|Standards||IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1p for Class of Service
IEEE802.3az Energy Efficient Ethernet
|Packet Buffer Size||2Mbits|
|Maximum Packet Length||Up to 9K|
|MAC Address Table||4K|
|Transmission Mode||Store and Forward (Full Wire Speed)|
|Exchange Property||Delay time: < 7μs
Backplane bandwidth: 20Gbps
|PoE & Power Supply|
|PoE Port||Port 1 to 8 IEEE802.3af/at @PoE|
|Power Supply Pin||Default: 1/2(+), 3/6(-),Optional:4/5, 7/8(-)|
|Max Power Per Port||30W; IEEE802.3af/at|
|Total PWR / Input Voltage||125W(DC52V) @ 15.4W
240W(DC52V) @ 30W
|Power Supply||External power adapter with AC100 – 240V 50-60Hz input
52VDC 5A output@30W per port
52VDC 2A firstname.lastname@example.orgW per port
|Protection||Overload Current Protection|
