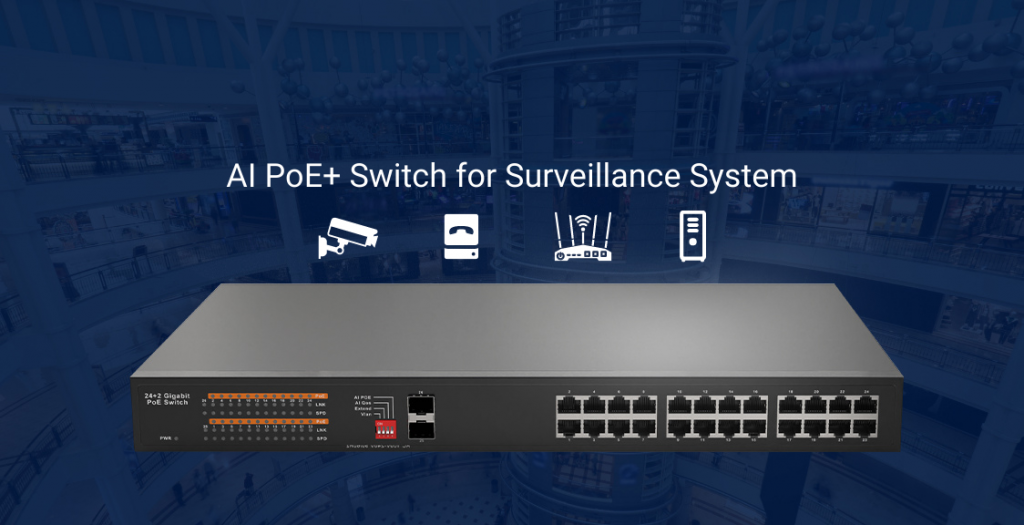

24 Port Gigabit Unmanaged PoE Switch
FR-5A3224P is a new generation Power over Ethernet switch with 24-Port 10/100/1000Base-TX and 2 Gigabit uplink ports to provide stable and reliable Ethernet transmission offered by Fiberroad, with high-quality design and reliability. It can supply power to PD terminal equipment such as wireless AP, webcam, VoIP, and visual intelligent building intercom through network cable and meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories and small and medium-sized enterprises.
Product Features
- 16/24×10/100/1000Base-TX RJ45 ports, 2xGigabit SFP/ RJ45
- Support full-duplex based on IEEE802.3x and half-duplex based on backpressure
- IEEE802.3af/at PoE standard, without damaging non-PoE devices.
- Support 10K bytes giant frame, compatible with various extension protocol
- Support IEEE802.3az Energy Efficient Ethernet technology
- Electric 4kV surge protection
- Fanless and noiseless design, IP30 rated
- Plug and play, no configuration, simple and convenient
- Providing a long term and stable PoE power output
- The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE
Video Gallery
Brief Introduction
What is AI PoE Switch?
Quality Certifications
Guarantee
Share This Product
Get the Most Out of Your Network with a 24 Port PoE Switch
One of the most important factors in a network upgrade is to find a way to get the most out of your existing infrastructure. A 24 port PoE switch offers a way to do just that by providing power to all devices on the same switch while allowing them to remain connected using standard Ethernet cables. With this type of switch, you can use fewer power cables and still have more ports than before.
| Product Attributes | |||
|---|---|---|---|
| Ports | 24×10/100/1000Base-T RJ45 2x1000Base-X SFP |
Switching Capacity | 52 Gbps |
| MAC Address | 8K | Jumbo Frame | 10K |
| PoE Port | Port 1 to 24 IEEE802.3af/at | Total Power | 250W@15.4W/Port |
| Input Voltage | 100V-240VAC, 50-60Hz | Output Voltage | 48VDC |
| Operating Temperature | 0℃ to 50℃（32℉ to 122℉） | Storage Temperature | -20℃ to 70℃（-4℉ to 158℉） |
| Housing | Metal | Warranty | 3 Years |
Compliance with 802.3af/at PoE+ Standard
Fiberroad 24 port PoE switch offers a complete solution for the cost-sensitive Ethernet market by delivering reliable, stable performance at an affordable price. It is compliant with the IEEE 802.3af/at PoE+ Standard, then allowing you to use power-over-Ethernet technology to deploy IP cameras or other PoE devices remotely up to 100m away from your power source.
24 Port PoE Switch Maximize your Network Connectivity

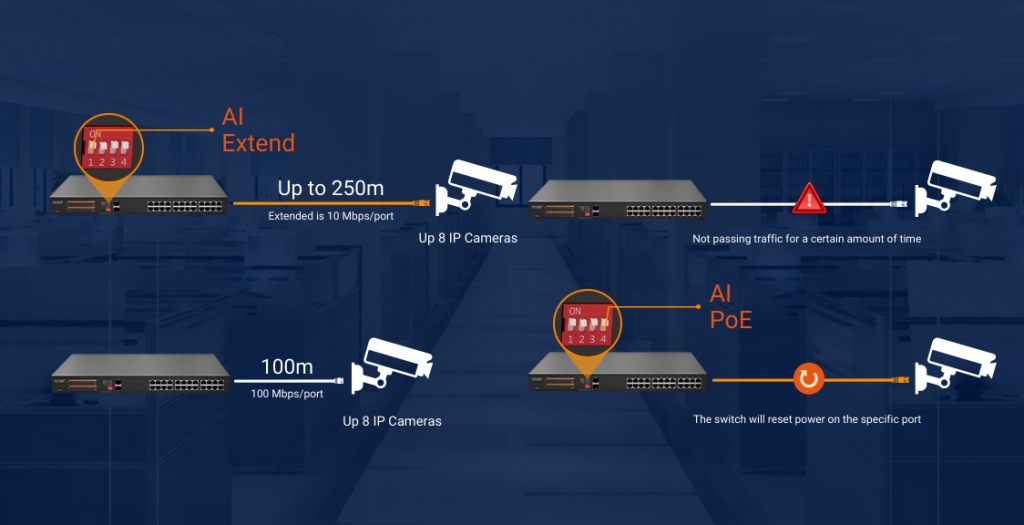

AI Extend: AI Extend is a common PoE switch feature designed to extend PoE distance up to 250m. Markedly, the downside is that port speeds will be limited to only 10Mbps.
AI PoE: The AI PoE feature allows the switch to check the ports for activity periodically. As long as a port is not passing traffic for a certain amount of time, the switch will reset the power on that specific port.
Stay connected with our 24 Port PoE Switch

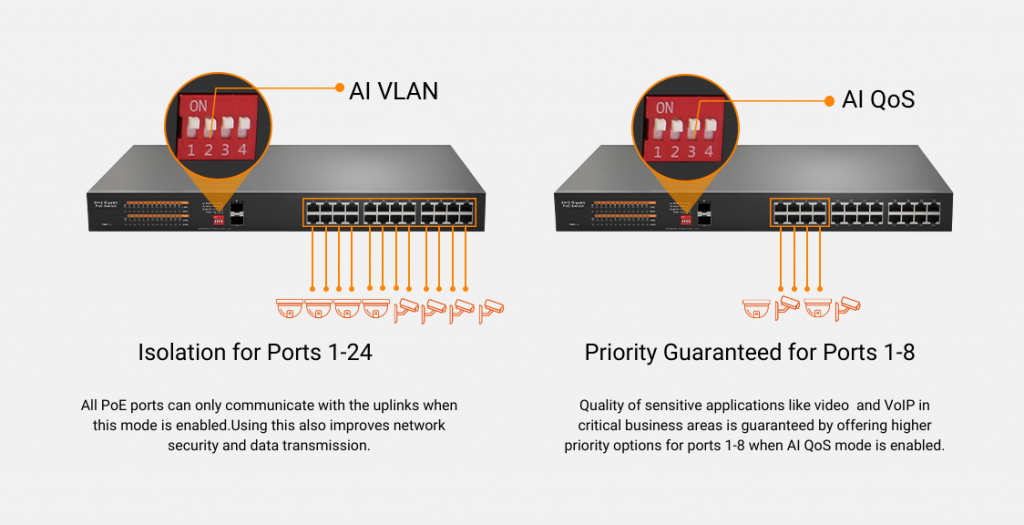

AI VLAN: AI VLAN is essentially port isolation on each of the PoE ports. All PoE ports are only able to communicate with the uplinks when this option is enabled.
AI QoS: When AI QoS is enabled, 1-8 ports will prioritise Video and VoIP traffic flows over others. For example, an IP camera streaming in real-time takes preference over a user transferring a backup file to a server.
24 Port PoE Switch FAQs
A 24 Port PoE switch is a great solution for Ethernet-enabled devices that require reliable power delivery over long distances, such as IP cameras and VoIP phones. It provides a total PoE+ output power of up to 30W per port, allowing you to use one device to power multiple devices in your network. With its … Continued
When selecting a PoE switch, there are several factors to consider. The number of ports, the power output and efficiency, port forwarding capability, data transfer rate and security features such as authentication and encryption should all be taken into account. Additionally, you will want to make sure that the switch is compatible with your existing … Continued
A 24-port PoE switch can benefit your network in many ways. It can provide more efficient data transmission by connecting multiple devices and by supplying power over Ethernet to PD terminal equipment. It also has up to 30W of power per port, ensuring reliable performance for connected devices. Additionally, its support for Power Saving Mode … Continued
Yes! 24 Port PoE Switch is designed to detect and provide power to PoE-enabled devices without any manual configuration. It also supports auto-negotiation with devices connected to the ports, so it will only provide power when necessary and can adjust itself accordingly when a new device is detected. This feature makes 24 Port PoE Switch … Continued
| Ethernet Interface | ||
| Model | FR-5A3216P | FR-5A3224P |
| RJ45 Port | 16×10/100/1000Base-TX | 24×10/100/1000Base-TX |
| Optical Fiber Port | 2x1000Base-X SFP | 2x1000Base-X SFP |
| SFP Slot Port | Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) | |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
| Port Mode(Tx) | Auto-Negotiation
Full/Half Duplex Mode Auto MDI/MDI-X Connection |
|
| Standards | IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1p for Class of Service IEEE802.3az Energy Efficient Ethernet |
|
| Packet Buffer Size | 4Mbits | |
| Maximum Packet Length | Up to 10K | |
| MAC Address Table | 8K | |
| Transmission Mode | Store and Forward (Full Wire Speed) | |
| Exchange Property | Delay time: < 7μs
Backplane bandwidth: 52Gbps |
|
| Advanced Features | Compatible With IEEE 802.3at/af Compliant PDs Extend Mode (Up to 250m PoE power supply and data transmission) Priority Mode Isolation Mode PD Detection Intelligent Power Supply Mac Address Auto-Learning and Auto-Aging |
|
| PoE & Power Supply | ||
| Model | FR-5A3216P | FR-5A3224P |
| PoE Port | Port 1 to 16 IEEE802.3af/at @PoE | Port 1 to 24 IEEE802.3af/at @PoE |
| Power Supply Pin | Default: 1/2(+), 3/6(-) | |
| Max Power Per Port | 30W; IEEE802.3af/at | |
| Total PWR |
350W |
350W |
| Power Consumption | ＜15W(220/50 Hz, no PD connected) | ＜18W(220/50 Hz, no PD connected) |
| Power Inputs | 1 | |
| Power Supply | Internal power adapter with AC100 – 240V 50-60Hz input | |
| Protection | Overload Current Protection | |
